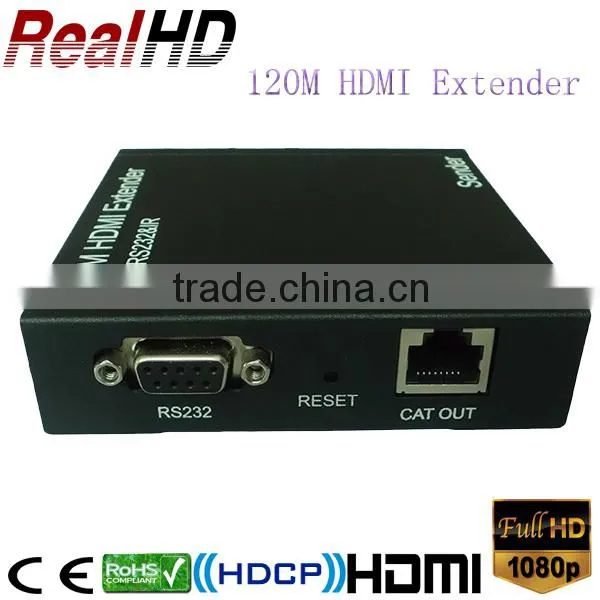

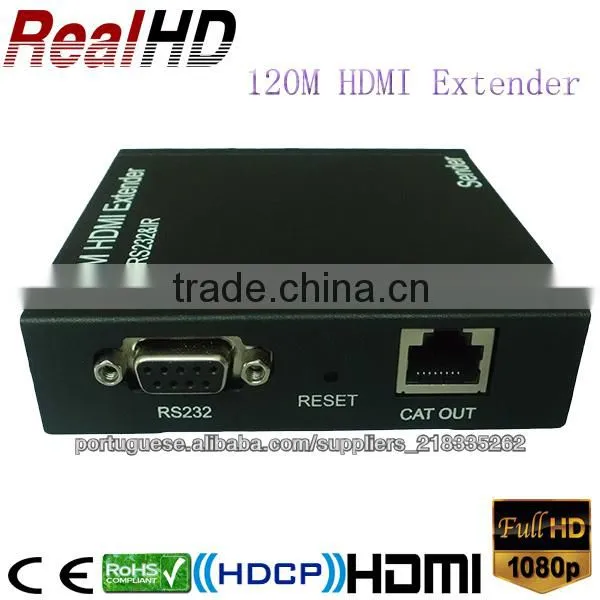

1.4 version 120m HDMI Extender IR Remote Many to Many Based on TCP / IP

Specifications

1.4 version 120m HDMI Extender IR Remote Many to Many Based on TCP / IP
Supports resolution up to 480p/720p/1080i/1080p.

1.4 version 120m HDMI Extender IR Remote Many to Many Based on TCP IP







Introduction of 1.4 version 120m HDMI Extender IR Remote Many to Many Based on TCP / IP:

1.4 version 120m HDMI Extender IR Remote Many to Many Based on TCP / IP is base on TCP/IP standard .It extends your HD display with the resolutions of 1080p/60Hz up to 395feets (120 meters)away from your HDMI or DVI-D source by using one CAT5e/6 cable.

With the advantage of TCP/IP standard, you can extend you HD video to multiple displays by using an Ethernet router or hub and the total distance can be up to max 660 feets

Features of 1.4 version 120m HDMI Extender IR Remote Many to Many Based on TCP / IP:

1. HDMI 1.3b

2. Following TCP/IP standard.

3. Supports resolution up to 480p/720p/1080i/1080p.

4. CAT 5e/6 cable follows the standard of IEEE-568B

Specifications of 1.4 version 120m HDMI Extender IR Remote Many to Many Based on TCP / IP:

Signal Input/Output
Input/Output port of sender	HDMI Female x1
	RJ45 Female x1
	IR Extender in x1
	RS232 in x1
Input/Output port of receiver	HDMI Female x1
	RJ45 Female x1
	IR Extender out x1
	RS232 out x1
Operating Frequency
Vertical Frequency Range	50/60HZ
Video Amplifier Bandwidth	Max up to 1.65Gbps/165MHZ
Resolutions(HDTV)
Interlaced(50&60HZ)	480i ,576i,1080i,forHDMI
Progressive(50&60HZ)	480P,576P,1080P forHDMI
Mechanical
Size(L-W-H)	103X100X24mm
Weight(Net)	800g
Environmental
Operating Temperature	0 °C-70°C
Operation Humidity	10%-85%RH(no condensation)
Storage Temperature	-10 °C+80°C
Storage Humidity	5%-90%RH(no condensation)
Power Requirement
External Power Supply	DC 5V@1A x2
Power consumption(Max)	2.5W
Accessories Adapter
Use manual	English Version



Package Contents of  1.4 version 120m HDMI Extender IR Remote Many to Many Based on TCP / IP:

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1)    Main unit No.1 Sender

2)    Main unit No.2 receiver

3)    Two pieces of DC 5V 1A power supply

4)    User’s Manual
