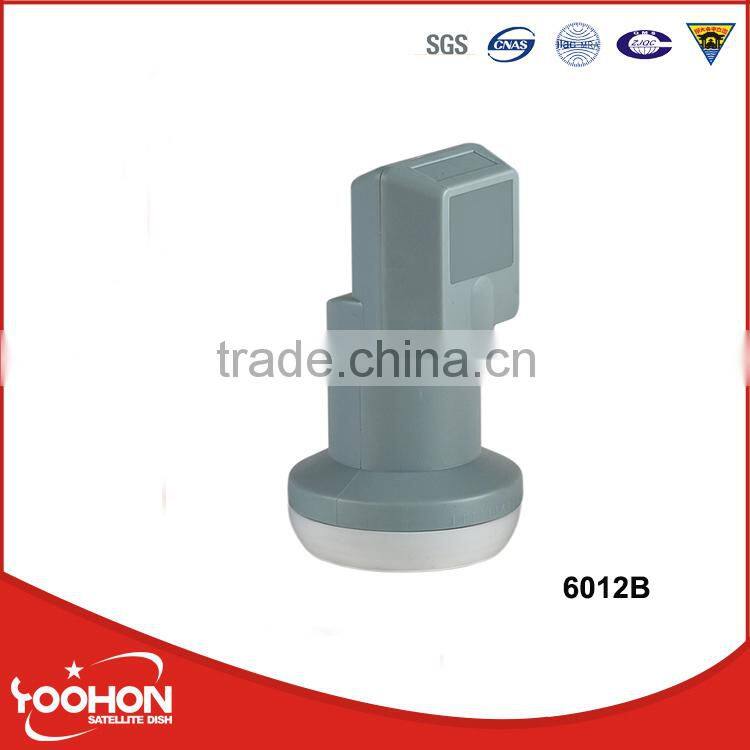

Ku Band Single Output LNB 6012B

FOB Price

USD $1 - $3 / Piece

1000 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port NINGBO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	YOOHON
Model Number	YH6012

Product Description

Specifications

WATERPROOF
Phase noise:
-50dBc @ 1KHz
-75dBc @ 10KHz
-95dBc @ 100KHz

Product Description

Ku Band Single Output LNB 6012B

SPECIFICATION:
Input freq. Range:
Low band: 10.70 to 11.80GHz
High band: 11.70 to 12.75GHz
L. O. Frequency:
Low band: 9.75GHz (1MHz @ 25 degree Celsius)
High band: 10.60GHz (1MHz @ 25 degree Celsius)
L. O. Stability:
Low band: 2MHz (-40 to +70 degree Celsius)
High band: 2MHz (-40 to +70 degree Celsius)
Output freq. Range:
Low band: 950 to 2050MHz
High band: 1100 to 2150MHz
Control signals:
Low band: Ca or Cb (see below)
High band: Ca and CC or Cb
Noise figure: 0.5dB typ.
Conversion gain: 58dB typ.
Input VSWR: 2.5: 1
Output VSWR: 2.0: 1 (max. )
Output connector: F-female connector
Output impedance: 75 ohms typ.
Cross polar isolation: 20dB (min. )
Image rejection: 45dB
Phase noise:
-50dBc @ 1KHz
-75dBc @ 10KHz
-95dBc @ 100KHz
Supply voltage:
Ca: 11.5 to 14.0V (vertical polarization)
13 VDC typ. Cb: 16.0 to 19.0V (horizontal polarization)
18 VDC typ.
CC: Continuous 22KHz
Operating temperature: -40 to +70 degree Celsius
Storage temperature: -40 to +80 degree Celsius
Relative humidity: 0% to 95%

Packaging & Shipping

Packaging:

1)One piece in a box,100 pcs in a carton

2)Other packaging can be discussed.

Shipping:

1) Small order: By express, DHL/ UPS/ Fedex/ EMS etc.

2) Large order: By sea or By air.

3) Choose the best and convinient way for your need

Our Services

OEM/ODM Service

(1) OEM/ODM project is welcome .with our professional top service .you could make your own special and new design.

(2) The MOQ for customized products is varied from 500pcs to 5000pcs or even more.

(3) We always respect our customers'copyright or business secrets

Other Details:

1. Samples policy

For Samll quantity samples,we offer without charges, But shipping and taxes paid by the buyer.

2. Our main market

Latin America, Africa, Mid East, Asia.

3. About payment

T/T,L/C,and other Payment can be discussed.
