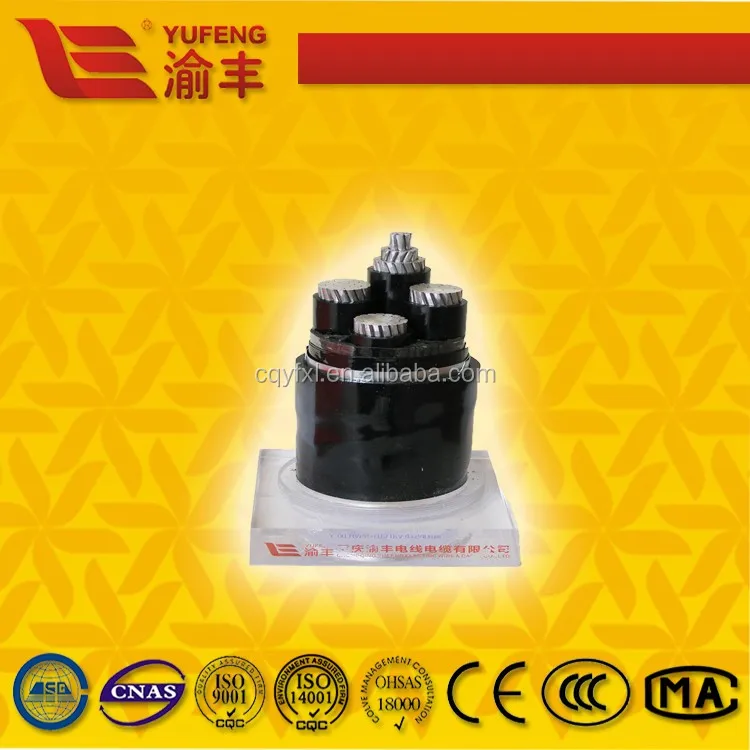

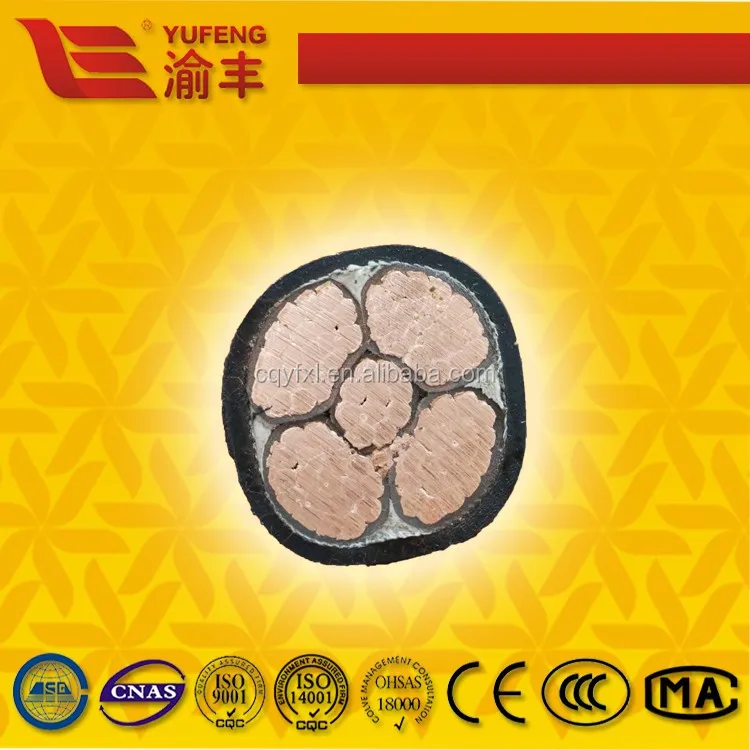

Help CenterZR-VV22,NH-VV,NH-VV22 PVC Insulated PVC Sheathed Cooper or Aluminium Conductor Wire and Cable
Related Products
-
Rated Voltage 0.6/1kv XLPE Insulated YJLV CableUS$ 8 - 9MOQ: 100 Meters -
High Quality Medium Voltage 0.6/1kV XLPE Insulated PVC Sheathed Armoured Power CableUS$ 8.00 - 8.00MOQ: 100 Meters
-
High Quality Low Voltage 0.6/1kV Sigle Cores XLPE Insulated PVC Sheathed Armoured Power CableUS$ 8.00 - 8.00MOQ: 100 Meters
-
PVC Sheathed VV,VLV,VV22,VLV22,ZR-VV Cooper or Aluminium Conductor ZR-VV22,NH-VV,NH-VV22 PVC InsulatedUS$ 8 - 9MOQ: 100 Meters
-
PVC Sheathed PVC Insulated ZR-VV22,NH-VV,NH-VV22 Power CableUS$ 8 - 9MOQ: 100 Meters
Operating Characteristics
1. The highest rated working temperature of conductor is 70°c; the highest temperature is 160°c in short circuit (the longest duration is 5 Secs).
2. Bending Radius
The minimum bending radius of non armored cable: single-core cable is 15D; multiple-core cable is 12D.
The minimum bending radius of armored cable: single-core cable is 20D; multiple-core cable is 15D.
D is the diameter of the finished cable.
3. The environment temperature for laying cannot be lower than 0°c; below 0°c installation must be preheated.
Main Application
Type | Designation | Main Application |
VV, VLV | Copper(Aluminum) Conductor PVC Insulated and Sheathed Power Cable | For laying in tunnels and ducts of indoor and outdoor, able to bear a certain traction installation, but unable to bear pulling force and pressure, single core cable cannot be laid in the magnetic tube. Flame retardant, fire-resistant cable is suitable for the places with higher requirements for fire protection. |
ZR-VV, ZA-VV, ZB-VV, ZC-VV, ZR-VLV, ZA-VLV, ZB-VLV, ZC-VLV | Copper(Aluminum) Conductor Flame Retardant PVC Insulated and Sheathed Power Cable | |
NH-VV, NHZA-VV, NHZB-VV, NHZC-VV | Copper Conductor Fire-resistant PVC Insulated and Sheathed Power Cable | |
VV22, VLV22 | Copper(Aluminum) Conductor PVC Insulated Steel Tape Armoured PVC Sheathed Power Cable | For laying directly in ground, able to bear a certain traction installation, pulling force and pressure. Flame retardant, fire-resistant cable is suitable for the place with higher requirements for fire protection. |
ZR-VV22, ZA-VV22, ZB-VV22, ZC-VV22, ZR-VLV22, ZA-VLV22, ZB-VLV22, ZC-VLV22 | Copper(Aluminum) Conductor Flame Retardant PVC Insulated Steel Tape Armoured PVC Sheathed Power Cable | |
NH-VV22, NHZA-VV22, NHZB-VV22, NHZC-VV22 | Copper Conductor Fire-resistant PVC Insulated Steel Tape Armoured PVC Sheathed Power Cable |
The multi-core cable should be cabling. The insulated cores comply with the table below with color recognition or digital reecognition, or the specifited requirements of the users.
No. of Cores | Color Recognition | Digital Recognition | Remarks | ||
Master Core | Midline Core | Master Core | Midline Core | ||
1 | Random Color |
| / | / | The color recognition can be customized according to user's requirements. |
2 | Red | Blue | 1 | 0 | |
3 | Red, Yellow, Green | / | 1, 2, 3 | / | |
4, 3 1 | Red, Yellow, Green | Blue | 1, 2, 3 | 0 | |
5, 3 2, 4 1 | Red, Yellow, Green | Blue, Black(Yellow/Green) | 1, 2, 3 | 4, 0 | |
1. What kinds of products does Yufeng wire and cable manufacture?
1)Bare Conductor ;
2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;
3)PVC Insulated (Flexible ) Wire ;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5)Low, Medium, (1kV-35kV) XLPE Insulated (Armoured) Power Cable;
6)Welding Cable, Control Cable, Concentric cable, Rubber Sheathed Cable and so on.
2. What kind of certifications do you have?
CCC / CE / ISO9001 / ISO14001/ROHS/REACH/UL
3. Which markets do you involve mainly in?
Our products have been exported mainly to Africa, Middle East, South-east Asia, South America, Central America, Europe, etc.
4. Which standards do you comply with when you produce the electrical wire and cable?
We are able to produce electrical wire and cable based on GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Meanwhile, we can design and manufacture the cables according to the samples and technical specification provided by the customer
5. What is the MOQ?
It depends on the type and size of electrical wire and cable. For most of electrical wires, 100 meters can be accepted. Anyway, we will try our best to solve the problem and meet with the customer’s requirement.
Contact Info: Austin Huang
Phone No: 0086-13167848235
Skype: austin1986923 whatsApp: 0086-13167848235
Office address: Black #2,No,466 Kecheng Rd, Jiulongpo District, Chongqing, China
Factory address: Shuangfu Industrial Park, Jiangjin District, Chongqing, China
Send Inquiry to This Supplier
