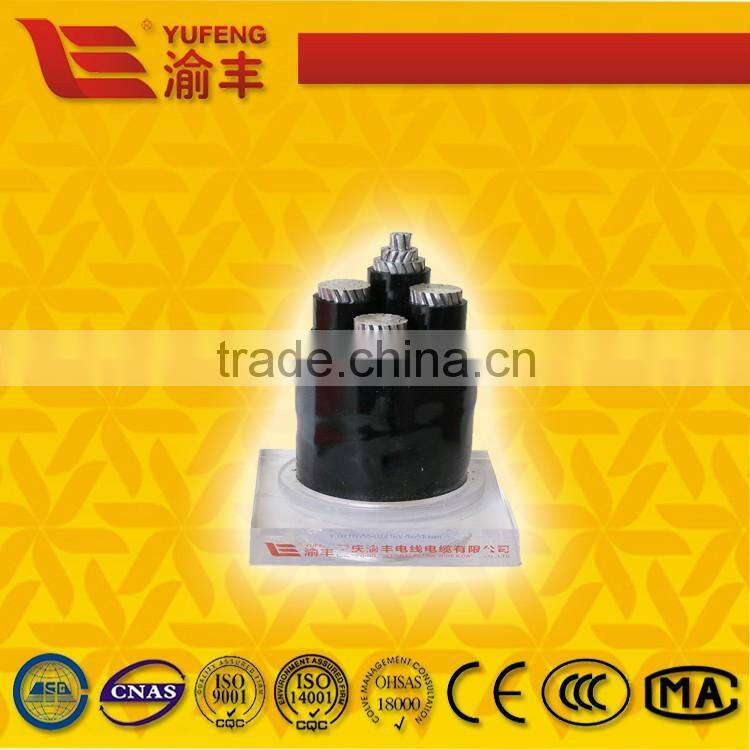

XLPE insulated power cable YJV
Specification:
1. NO.of Core: 2 3 4 5 3+1 3+2 4+1 etc.
2. Power Wire Rated voltage: 0.6/1KV
3. Nominal Cross-sectional area: 1.5~240mm2
4. Power Cable Test voltage(a.c): 3.5kv/5min
5. Standards: GB/12706 or IEC,BS,DINICEA
6. Power Cable Application: This XLPE insulated power cable is suitable for use in power distribution lines or fixed
7. Power Cable Operating Characteritics:
1). Max.permissible continuous operating temperature of conductor(PVC/XLPE): 70°C/90°C
2). Max.short-circuit temperature of conductor shall not exceed(5s maximumduration) XLPE:250°C
3). The ambient temperature under in installation shall not below 0°C
4). The bending radius of single-core power cable shall not less than 20 times of the cable
diameter; The bending radius of multicore power cable should not less than 15 times of the
cable diameter.
| Name | Type | Area(mm2) | Cores |
| XLPE insulated and coated copper LSZH power cable | WDZ-YJV | 1.5,2.5,4,6,10,16,25,35,50, 70,95,120,150,185,240,300,400 | 1 |
| XLPE insulated and coated copper LSZH power cable | WDZ-YJV | 1.5,2.5,4,6,10,16,25,35, 50,70,95,120,150 | 2 |
| XLPE insulated and coated copper LSZH power cable | WDZ-YJV | 1.5,2.5,4,6,10,16,25,35,50, 70,95,120,150,185,240 | 3,4,5 |
| XLPE insulated and coated copper LSZH power cable | WDZ-YJV | 1.5,2.5,4,6,10,16,25,35,50, 70,95,120,150,185,240,300 | 3+1 |
| 3+2 | |||
| 4+1 | |||
| XLPE insulated and coated,steel-tape armored copper LSZH power cable | WDZ-YJV22 | 10,16,25,35,50,70,95, 120,150,185,240,300,400 | 1 |
| XLPE insulated and coated,steel-tape armored copper LSZH power cable | WDZ-YJV22 | 1.5,2.5,4,6,10,16,25, 35,50,70,95,120,150 | 2 |
| XLPE insulated and coated,steel-tape armored copper LSZH power cable | WDZ-YJV22 | 1.5,2.5,4,6,10,16,25,35, 50,70,95,120,150,185,240 | 3,4,5 |
| XLPE insulated and coated,steel-tape armored copper LSZH power cable | WDZ-YJV22 | 1.5,2.5,4,6,10,16,25,35,50, 70,95,120,150,185,240,300 | 3+1 |
| 3+2 | |||
| 4+1 |
1. What kinds of products does Yufeng wire and cable manufacture?
1)Bare Conductor ;
2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;
3)PVC Insulated (Flexible ) Wire ;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5)Low, Medium, (1kV-35kV) XLPE Insulated (Armoured) Power Cable;
6)Welding Cable, Control Cable, Concentric cable, Rubber Sheathed Cable and so on.
2. What kind of certifications do you have?
CCC / CE / ISO9001 / ISO14001/ROHS/REACH/UL
3. Which markets do you involve mainly in?
Our products have been exported mainly to Africa, Middle East, South-east Asia, South America, Central America, Europe, etc.
4. Which standards do you comply with when you produce the electrical wire and cable?
We are able to produce electrical wire and cable based on GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Meanwhile, we can design and manufacture the cables according to the samples and technical specification provided by the customer
5. What is the MOQ?
It depends on the type and size of electrical wire and cable. For most of electrical wires, 100 meters can be accepted. Anyway, we will try our best to solve the problem and meet with the customer’s requirement.
