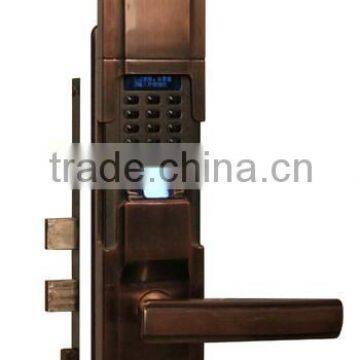

fingerprint door lock
TAIYITO digital fingerprint door lock specialized in home automation system for over 10 years, and the fingerprinet door lock is a important part in this system.The fingerfrint door lock follow the concept of genuine material,good quantity, and practical performace.It can be used independently with the function fingerprint digital code, key, smart card, also can be apply in the home automation system.
1.Product technical specification for fingerprint door lock
Product type | fingerprint door lock |
Unlocking ways | Fingerprint Digital code emergency keys remote control with phone or pad |
Technical support for fingerprint door lock | Q/HSY 001 standard techniques, Fingerprint living collection technology Researched and developed by United States TI company. |
The received signal sensitivity | -90dB |
Work voltage | Four 1.5 volts alkaline batteries corresponding with International standard, 6 volts DC |
Unlocking time | <1s |
Sub-standard voltage for fingerprint door lock | <4.5V,red light flash and alarm when you open the door(it can still work for hundreds of times) |
statical power consumption | <180uA |
Dynamic Power: | 150mA—250mA |
The working temperature | -10°C---50°C |
The working humidity | 10%RH--90%RH |
Fingerprint capacity | 32/120 |
FAR | <0.0001% |
Collecting time | <0.5s |
Note:
---You could realize remote control of the fingerprint door lock with your mobile phone in zigbee home automation system
--- Also it can be used independently with function code, fingerprint, key.
remote control fingerprint door lock wireless fingerprint door lock biometric fingerprint door lock
2.Product features for digital fingerprint door lock
fingerprint door lock
Fingerprint door lock | Fingerprint door lock Digital code remote controller emergency keys remote control with phone or pad |
Use independently Use in smart home automation with remote control by phone or pad | |
zinc alloy material to ensure the quantity | |
No need manual, three seconds after the door lock automatically | |
Accept external light |
Unlock ways for TAIYITO fingerprint door lock

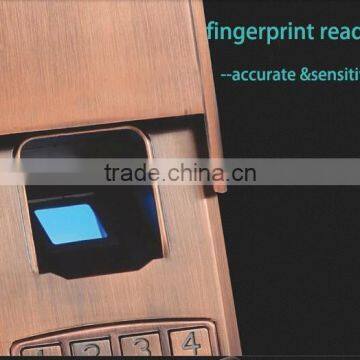

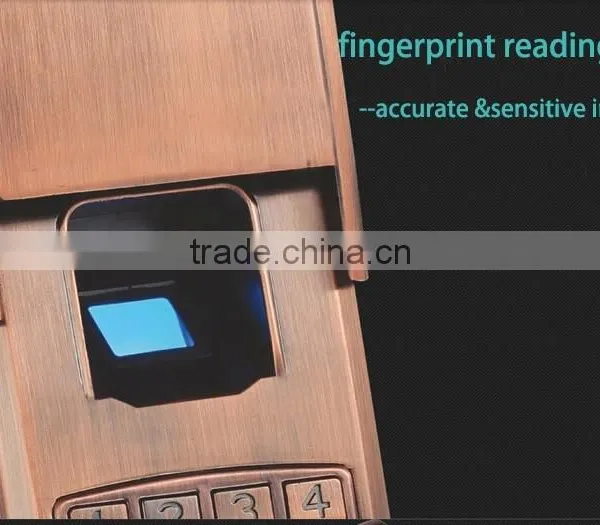

1.Through the fingerprint or digital code
all-mental remote control fingerprint door lock wireless fingerprint door lock biometric fingerprint door lock
2.Through remote controller or emergency key
3.Through your phone or pad -----That can realize the remote control for you!!!

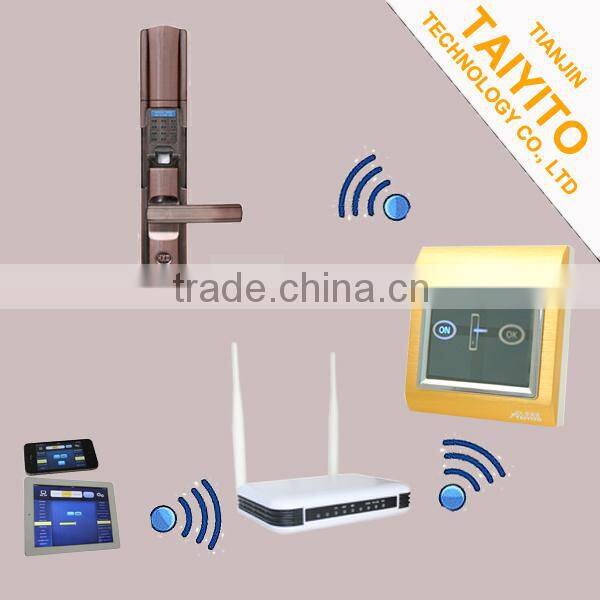

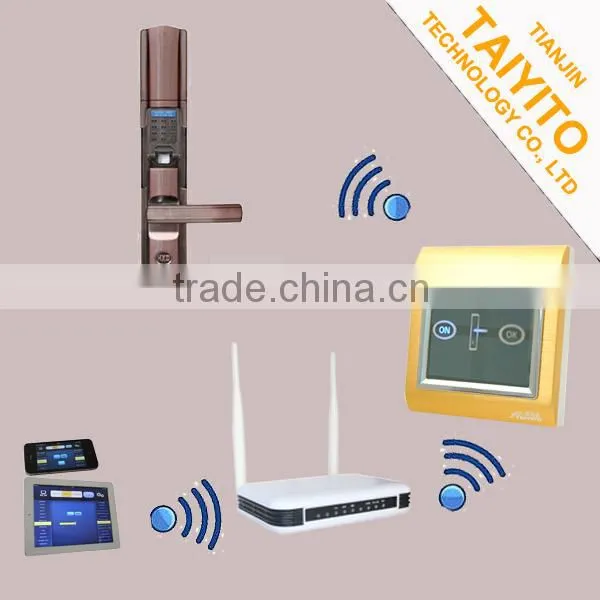

It is worthy mentioning that this fingerprint door lock not only have the basic function with others' like fingerprint identification,emergency keys,digital identification,but also with remote control fuction with your phone or pad.So you can control the door lock no matter where you in, just like the following picture.
all-mental remote control fingerprint door lock wireless fingerprint door lock biometric fingerprint door lock

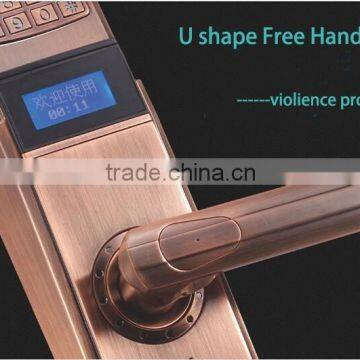

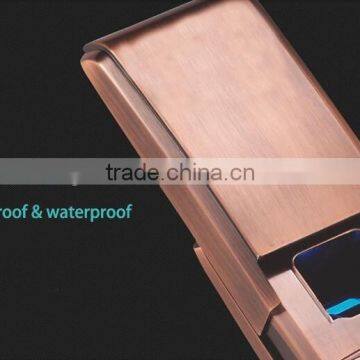

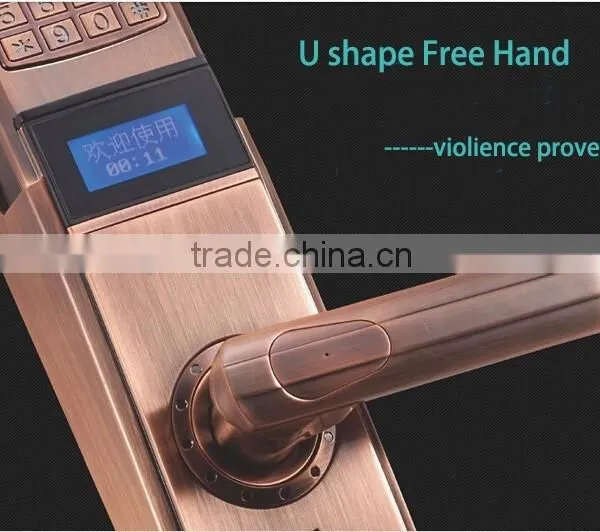

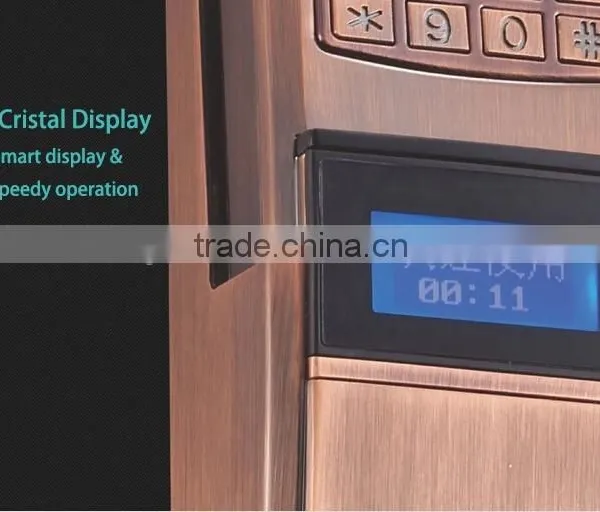

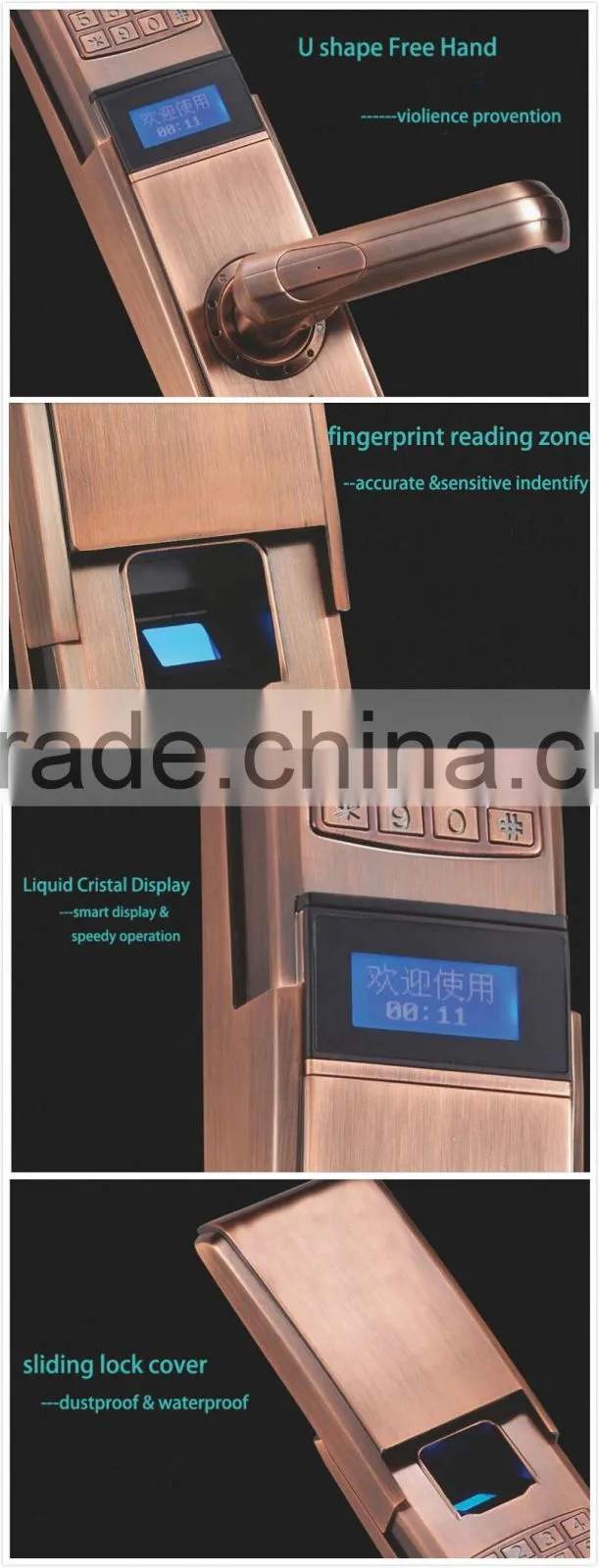

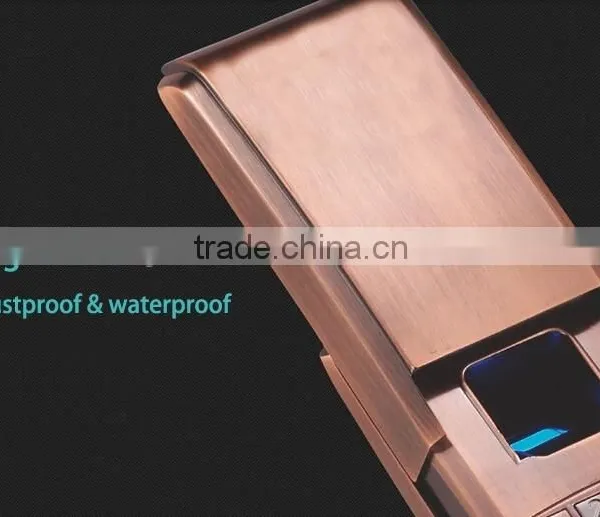

ducts details show of fingerprint door lock
remote control fingerprint door lock wireless fingerprint door lock biometric fingerprint door lock
all-mental remote control fingerprint door lock wireless fingerprint door lock biometric fingerprint door lock
all-mental remote control fingerprint door lock wireless fingerprint door lock biometric fingerprint door lock

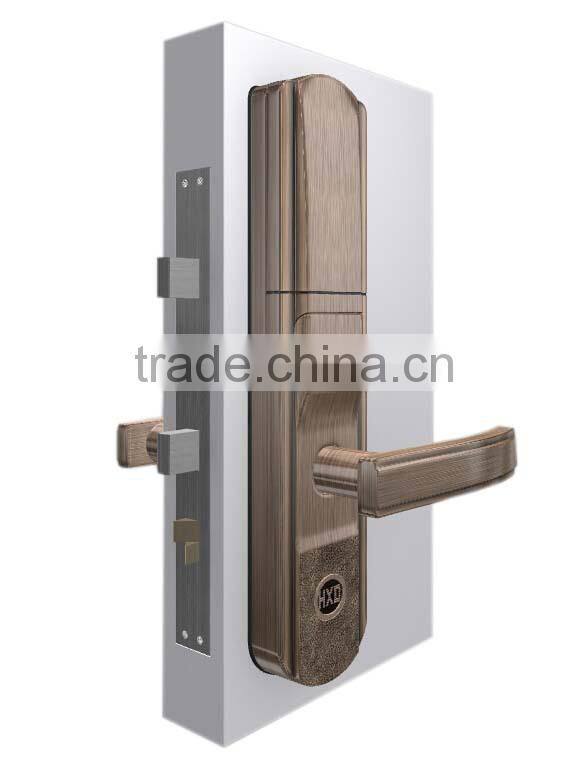

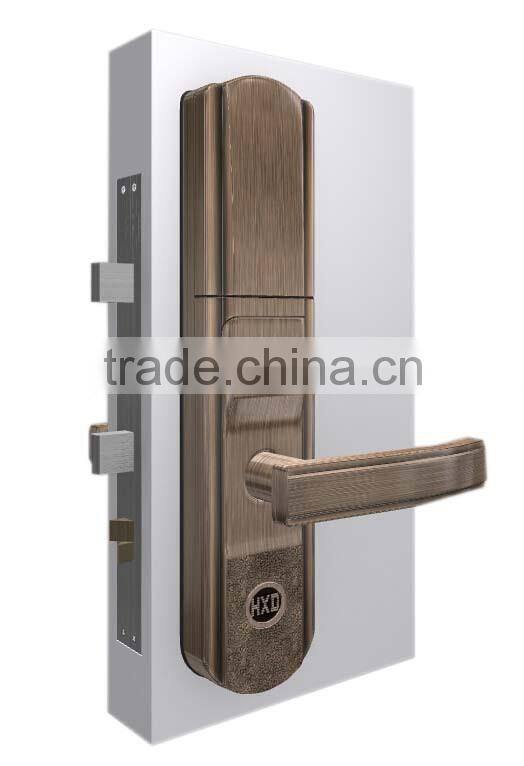

Universal lock body
all-mental remote control fingerprint door lock wireless fingerprint door lock biometric fingerprint door lock

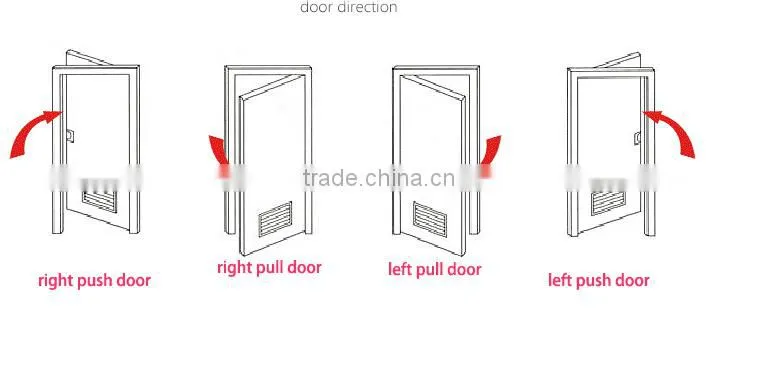

4.Installation instruction for fingerprint door lock
r fingerprint door lock

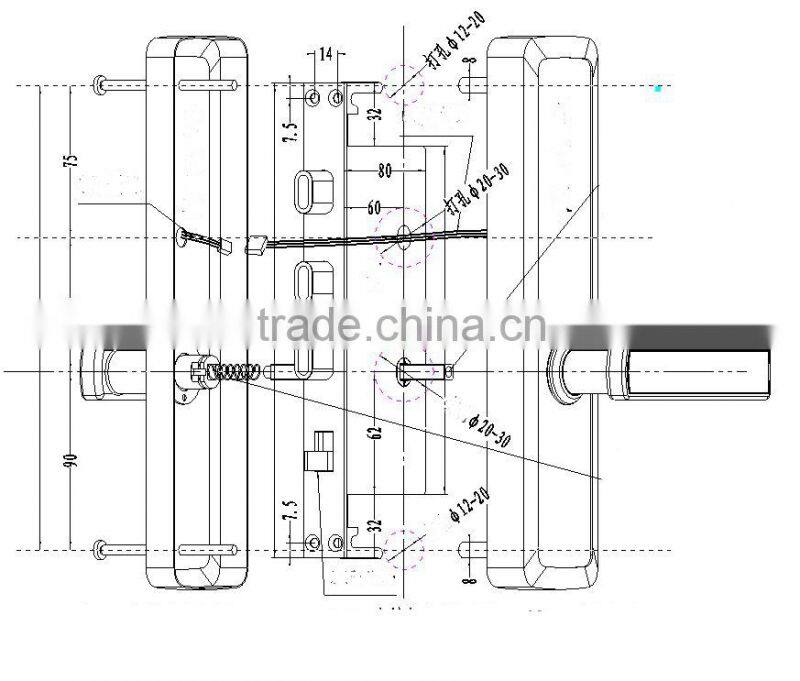

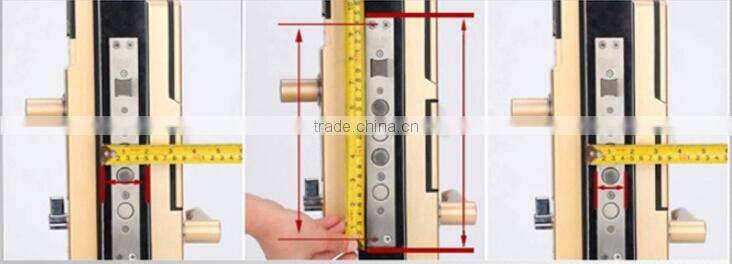

1.Perforate on the door according to the installation diagram
2.Instal the mortise lock before linking the power line and communication line
3.After plug the square rod into the square hole on the front panel,put the board on the door,and then put the wire into the hole.
Notice:If the square rod doesn’t touch the bottom of the hole,the lock won’t be unlocked.Please pay attention.
4.Put the top spring of square rob into the hole in the back doorknob,afterwards harness the square rob and screw on the screw.
5.screwing the top and bottom screws not too tight and hold the front and back panels upwards and then tight the screws.
Notice: Square rob is the central shaft which must be adjusted to the centre lock hole,otherwise the lock will be stucking or the doorknob could’t get back to the original position.
6,Please not cover the lid after the battery is set until you have testing the unlocking procedures by fingerprin,remotes/code and emergency keys.If the lock make you feel stucking and stagnant,please unscrew the screws and reset it to the best position.
all-mental remote control fingerprint door lock wireless fingerprint door lock biometric fingerprint door lock
fingerprint door lock

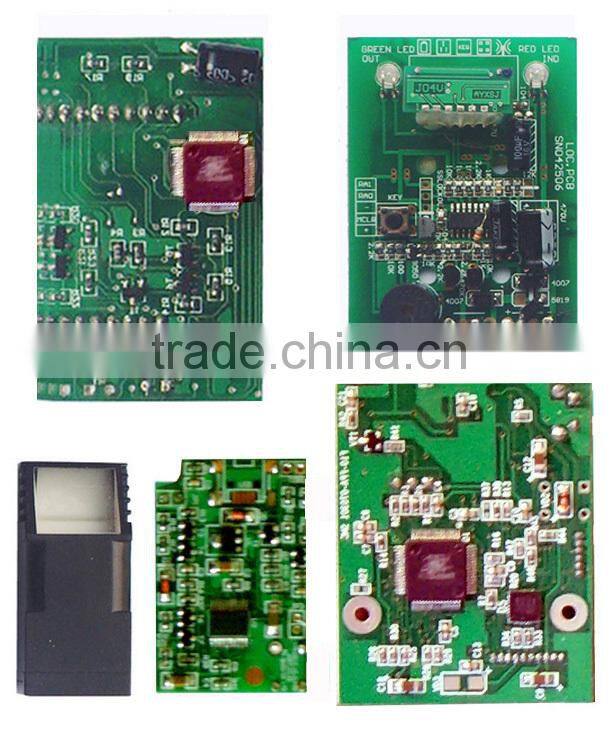

Door open mudule for fingerprint door lock
all-mental remote control fingerprint door lock wireless fingerprint door lock biometric fingerprint door lock

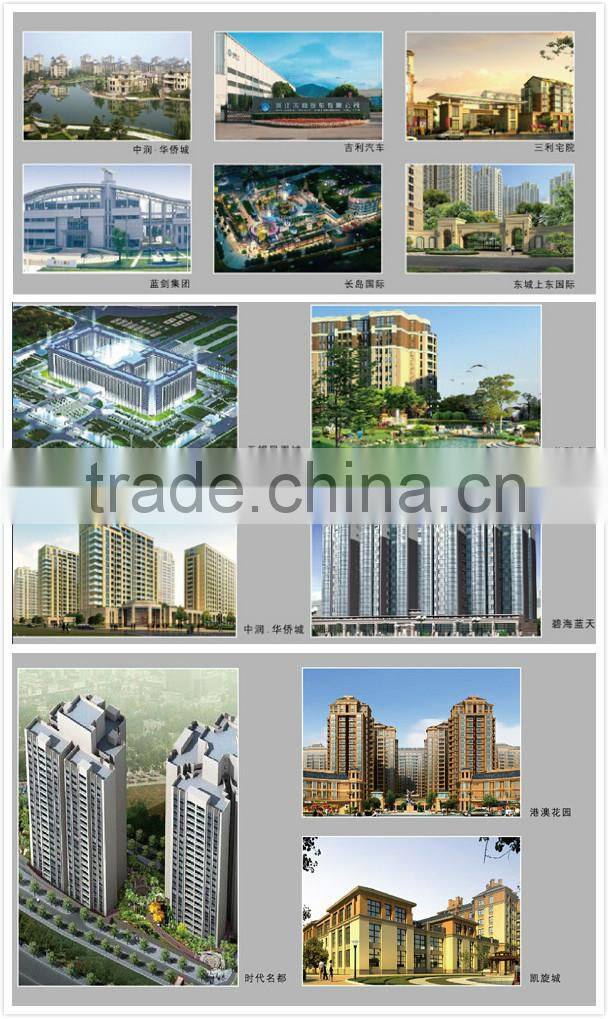

5.Application case of fingerprint door lock
all-mental remote control fingerprint door lock wireless fingerprint door lock biometric fingerprint door lock

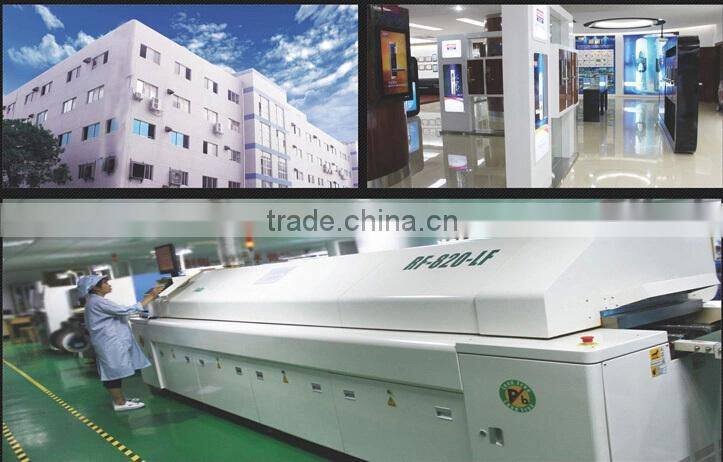

Our R&D manufacture for fingerprint door lock
all-mental remote control fingerprint door lock wireless fingerprint door lock biometric fingerprint door lock
The factory for fingerprint door lock
5.Certification for fingerprint door lockall-mental remote control fingerprint door lock wireless fingerprint door lock biometric fingerprint door lock
all-mental remote control fingerprint door lock wireless fingerprint door lock biometric fingerprint door lock
1.We provide 2 year warranty.
2.If the item is defective use by technical reason,you could sent back to us for New.
3.All items must be returned in their original condition to qualify for a refund or exchange of goods.
4.Items returned after 7 days delivery are only eligible for repair.
5.The buyer is responsible for all shipping costs.
6.No refund accepted after 30 Days of receipt.
7.After receipt of the goods found any questions, please contact us solve the problem.

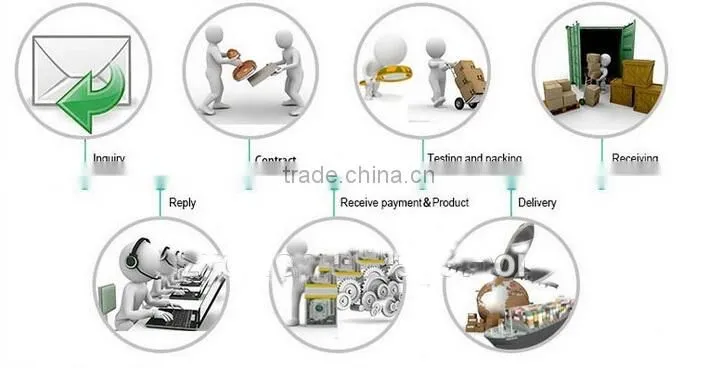

Packing &Shipping for fingerprint door lock
all-mental remote control fingerprint door lock wireless fingerprint door lock biometric fingerprint door lock
Common quetions about fingerprint door lock from customers
Common question about fingerprint door lock | Answer for the customers |
The fingerprint door lock work with battery, how can we do if the power works out? | The fingerprint door lock, with 4 batteries, it would work more than one year. When there is no enough power, it would alarm automatically. Also you can power the door lock through the USB interface as well as key for emergency. |
My finger hurts, can I still open the door with fingerprint? | Normally, smart cut wouldn’t influent the identification of the fingerprint, but if you hurt badly, it would be hard.(suggest: input more than one finger just in case ) |
Why can I not open the door, and I have registered fingerprint? | The reason can be follows: 1. Maybe the finger you input is not the one you registered. 2. You finger too wet or with something covered, pls clean. 3. Maybe there is little character you input the fingerprint door lock, the system can’t identify, please try to input the whole finger with pressure the first time. |
all-mental remote control fingerprint door lock wireless fingerprint door lock biometric fingerprint door lock if you are interested in TAIYITO fingerprint door lock,pls contact me!
fingerprint door lock
