2015 year new style of Wall tile press and hydraulic press machine
- 30 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card
- Rubber tile vulcanizing machine/Platen vulcanizing press
- The latest industrial automation robot manipulator
- made in China professional factory industrial full automatic rubber sheet cutting conveying production line
- high efficient industrial full automatic conveying production line
- high efficient industrial full automatic rubber sheet cutting conveying production line
- truck tire high efficient industrial full automatic revolve production line
Product Details
Condition: | New | Type: | Vulcanizer | Place of Origin: | Shandong, China |
Brand Name: | Bojia | Model Number: | 2.2-7.5 kw | Voltage: | 380V |
Weight: | 1000-13000KG | Certification: | ISO | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1 high pressure
2 durable and reliable
3 less maintenance
4 1 year warranty
5 ISO certificate
Structure

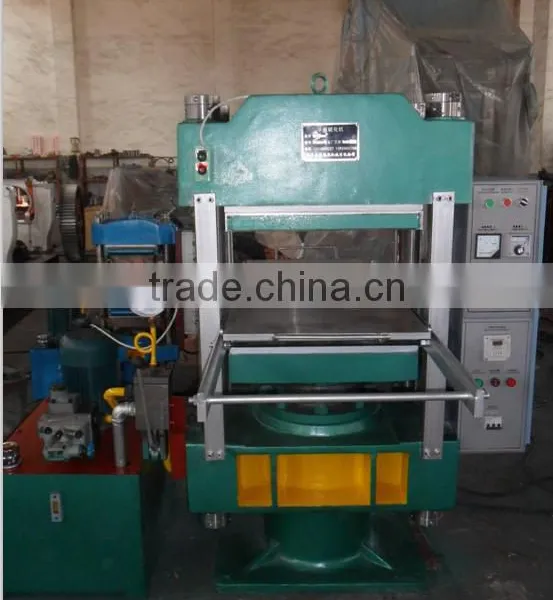

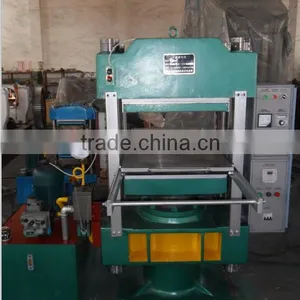

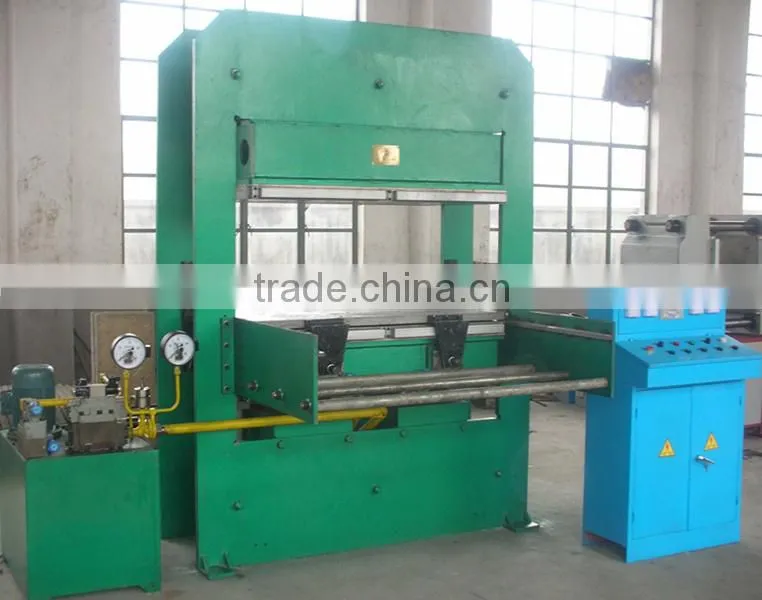

This hydraulic press machine is made up of main machine, hydraulic system and electric system. Pressure are provided by hydraulic cylinder, and temperature is adopted electric or steam heat mode. The electric cabinet is installed at the right side of the main machine, convenient for operation.
It has two style: four columns style and frame style.
Usage

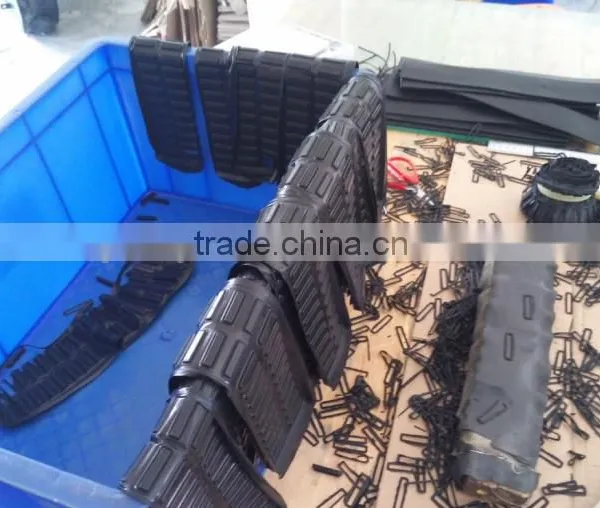

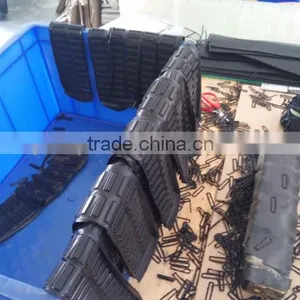

conveyor belt, transmission belt and other flat belt, o ring seal, sole, rubber shock pad, automobile rubber parts, kitchenware seal, etc.
Technical parameters
type | 160T | 100T | 50T | 315T | 250T | 200T |
Normal clamping mould force | 1600KN | 1000KN | 500KN | 3150 | 2500 | 2000 |
Max Working hydraulic pressure(kn) | 16 | 16 | 16 | 16 | 16 | 16 |
hot plate size(mm) | 850*850 | 600*600 | 500*500 | 1200*1200 | 1100*1100 | 1000*1000 |
hot plate space(mm) | 125 | 125 | 125 | 150 | 150 | 150 |
working layers | 2 | 2or4 | 2or4 | 2 | 2 | 4 |
max plunger stroke(mm) | 500 | 500 | 500 | 350 | 350 | 600 |
heating mode | steam/electric | steam/electric | steam/electric | steam/electric heating | steam/electric heating | steam/electric heating |
hot plate pressure per unit area(KN) | 2.5 | 2.8 | 3.12 | 2.2 | 2.1 | 2 |
motor power(kw) | 3 | 3 | 2.2 | 7.5 | 5.5 | 4 |
dimension(mm) | 3000*1600*2523 | 2070*1050*2230 | 1470*640**400 | 1685*1320*2550 | 1780*1150*2434 | 1800*1200*2650 |
weight(kg) | 6811 | 1900 | 1300 | 9500 | 8300 | 7900 |
note | column | column | column | plate frame | plate frame | plate frame |
Inside package: stretch protection film
Outside package: standard export wooden cases
Delivery: 30 days after receiving the deposits
1 Free installation instruction
Customers will enjoy free installation instruction and training for different style. Installation pictures and video will be provided as your requirement freely.
2 24 hour service
You are welcomed to contact us whenever you have a doubt or a question. Our stong technician and engineer team will work out the solution to you within 24 hours.
3 One year warranty
Qingdao Bojia Machinery Manufacturing Co., Ltd changed officially its name from a state-owned machinery company in October 2007, is one professional machinery manufacturer. Our company have one good and high quality design and manufacturing technology development group, often communicate with the customers and technology authority departments of rubber industry, constantly to improve and update our products which can meet the requirements of the customers; Our company guarantee to provide you excellent pre-market sale and after-sale service, timely technology information consulting, accessories and consumable parts supply etc, also can design and manufacture various non-standard products according to users’ requirements.
Our main products are: Conveying Belt Molding Machine Series; Batch Off Cooling Machine Series; Cushion Cloth Renovating Machine Series; Open Mixing Mill Series; Vulcanizing Press Series; Rubber Cutting Machine Series; Rubber Slitting Machine Series; Longitudinal Cutting Machine Series; Conveyer Belt Machine Series; Other Rubber Machines; Design and Manufacturing of Automatic Production Line.
Bojia Machinery Company always pursue "quality first, customer first" principle to offer high-quality products and excellent service, welcome new and old customers to visit my company.
