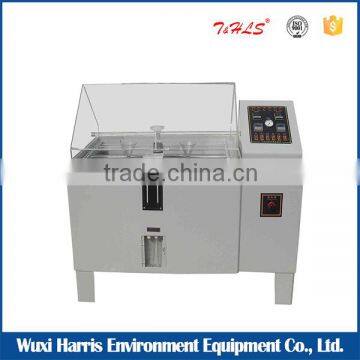

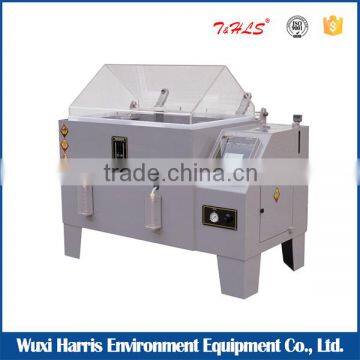

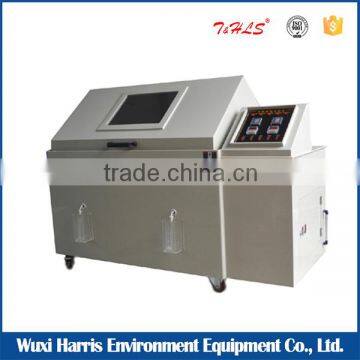

Salt Spray Testing corrosion chamber supplier
The salt spray testing corrosion chamber (also known as salt fog or salt mist) has been the bench-mark corrosion test in many industries for decades. With such a long history, so much test data and many international test standards written around it, it remains a very popular choice as a relatively quick comparative test, to check whether or not test samples corrode in accordance with expectations. It’s main application is therefore to audit the effectiveness of a production process.
Standard models meet the requirements of basic, continuous salt spray tests conducted at a single temperature only, such as ASTM B117 and similar international test standards, and may be used with pH neutral salt solutions (NSS) or those acidified by the addition of Acetic Acid (ASS) or Cupric Acid (CASS).
Model | YWX/Q-150 | YWX/Q-250 | YWX/Q-750 | YWX/Q-010 | YWX/Q-160 | YWX/Q-020 |
Workroom size DxWxH(cm) | 50x63x45 | 50x90x60 | 75x110x60 | 100x130x60 | 85x160x90 | 100x200x80 |
Outer demension DxWxH(cm) | 95x110x170 | 95x137x185 | 120x157x185 | 1450x177x185 | 130x207x215 | 145x247x205 |
Power(kw) | 2 | 4 | 5 | 6 | 7.5 | 9 |
Main parameter
1,Temperature range:35~55℃
2,Temperature fluctuation:±0.5℃
3,Temperature uniformity :±2℃
4,Spray quantity:1~2ml/80cm2·h
5,Spray way: Tower spray
6,Working method: continuous spray or cycling spray for choose
Salt spray testing corrosion chamber control system
1,Temperature controller: high accuracy temperature controller, with PID function
Controller precision:±0.1℃
Sensor:Pt100 platinum resistance
Temperature adjustment: (BTHC)PID intelligent adjustment
2,Two spray way for choose(continuous spray or cycling spray), spray time and period can be defined
3,Timing off function, it can work 99H99M99S continuously.
Chamber structure and features:
1,Material: Fiberglass by one time molding, corrosion-resistant ,easy-cleaning, o leaking.
2,Chamber cover made of plexiglass ,good looking ,easy to observe.
3,Water seal structure, completely stop salt spray leaking
4,Unique hinge and cover support structure help cover opening easily
5,Spray nozzle made of customized glass, no crystal even using for long time
6,Tower spray system, salt spray uniform distribution, spray quantity adjustable
7,Waste water automatic removing function, salt water which has contacted testing sample can’t be recycled.
8,Constant pressure hole prevents pressure difference from chamber inside
9,Oil-water separation device, purifying the spray by compressed air, to make sure no impurity or greasy dirt.
10,Unique saturated heating device, preheating the compressed air, to make sure temperature evenness
It can make test of NSS,ASS,CASS
Standard:GB2423.17;GB/T5170.8-96
Multiple safety protection: over temperature /over pressure /fuse
