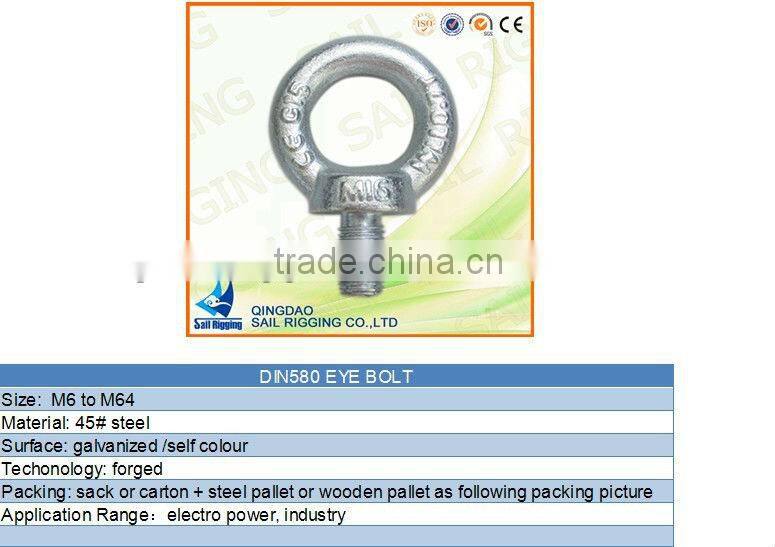

Specifications
eye bolt with ringCarbon Steel,Alloy Steel,Stainless Steel
Drop Forged,Sand Casting
Size:M6-M64
Electro Galv.

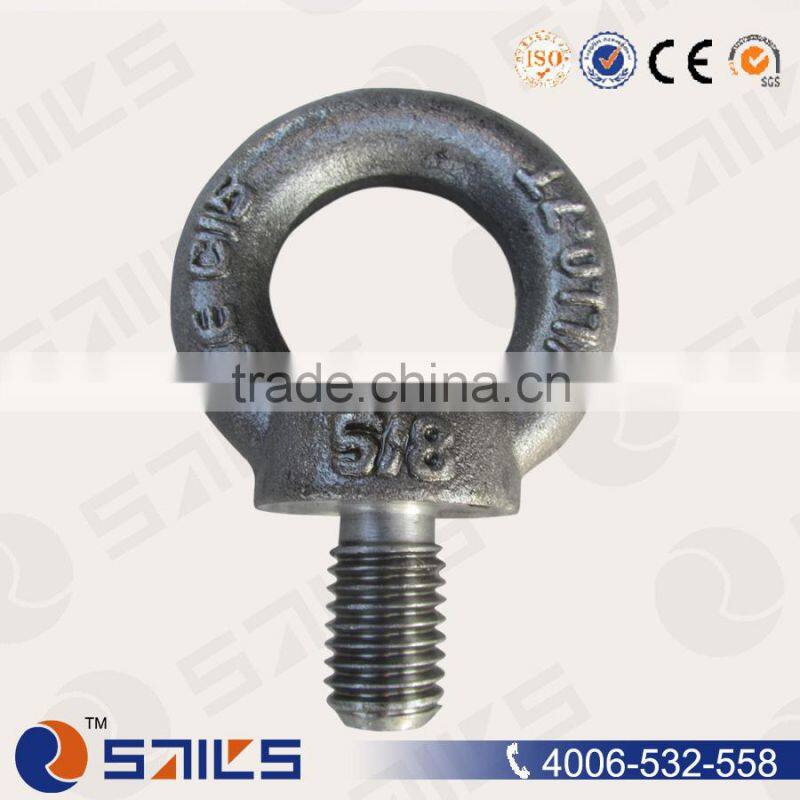

eye bolt with ring
Carbon Steel,Alloy Steel,Stainless Steel
Drop Forged,Sand Casting
Size:M6-M64
Electro Galv.
Hot Dip Galv.

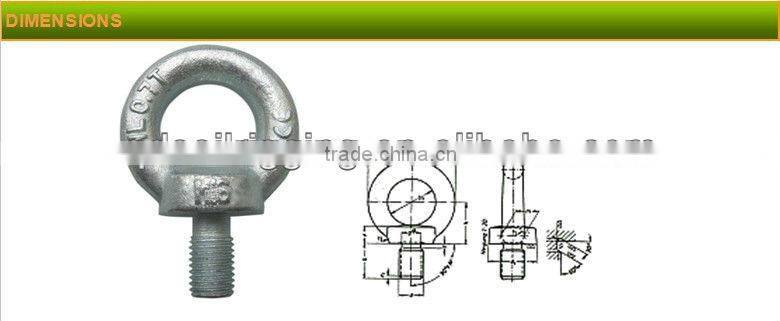

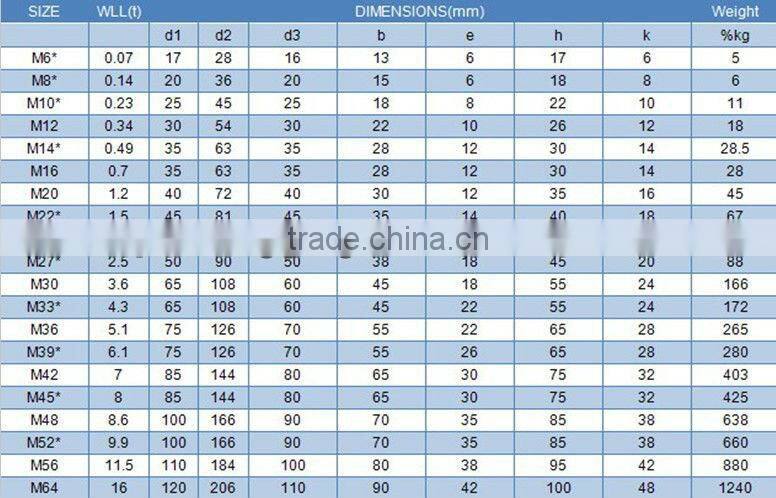

| SIZE | WLL | WLL | DIMENSIONS | Weight | ||||||
| d | t | t | ||||||||
| d1 | d2 | d3 | b | e | h | k | %kg | |||
| mm | mm | mm | mm | mm | mm | mm | ||||
| M6* | 0.07 | 0.05 | 17 | 28 | 16 | 13 | 6 | 17 | 6 | 5 |
| M8* | 0.14 | 0.095 | 20 | 36 | 20 | 15 | 6 | 18 | 8 | 6 |
| M10* | 0.23 | 0.17 | 25 | 45 | 25 | 18 | 8 | 22 | 10 | 11 |
| M12 | 0.34 | 0.24 | 30 | 54 | 30 | 22 | 10 | 26 | 12 | 18 |
| M14* | 0.49 | 0.34 | 35 | 63 | 35 | 28 | 12 | 30 | 14 | 28.5 |
| M16 | 0.7 | 0.5 | 35 | 63 | 35 | 28 | 12 | 30 | 14 | 28 |
| M20 | 1.2 | 0.83 | 40 | 72 | 40 | 30 | 12 | 35 | 16 | 45 |
| M22* | 1.5 | 1.05 | 45 | 81 | 45 | 35 | 14 | 40 | 18 | 67 |
| M24 | 1.8 | 1.27 | 50 | 90 | 50 | 38 | 16 | 45 | 20 | 87 |
| M27* | 2.5 | 1.65 | 50 | 90 | 50 | 38 | 18 | 45 | 20 | 88 |
| M30 | 3.6 | 2.6 | 65 | 108 | 60 | 45 | 18 | 55 | 24 | 166 |
| M33* | 4.3 | 3.2 | 65 | 108 | 60 | 45 | 22 | 55 | 24 | 172 |
| M36 | 5.1 | 3.7 | 75 | 126 | 70 | 55 | 22 | 65 | 28 | 265 |
| M39* | 6.1 | 4.3 | 75 | 126 | 70 | 55 | 26 | 65 | 28 | 280 |
| M42 | 7 | 5 | 85 | 144 | 80 | 65 | 30 | 75 | 32 | 403 |
| M45* | 8 | 5.5 | 85 | 144 | 80 | 65 | 30 | 75 | 32 | 425 |
| M48 | 8.6 | 6.1 | 100 | 166 | 90 | 70 | 35 | 85 | 38 | 638 |
| M52* | 9.9 | 7.3 | 100 | 166 | 90 | 70 | 35 | 85 | 38 | 660 |
| M56 | 11.5 | 8.3 | 110 | 184 | 100 | 80 | 38 | 95 | 42 | 880 |
| M64 | 16 | 11 | 120 | 206 | 110 | 90 | 42 | 100 | 48 | 1240 |

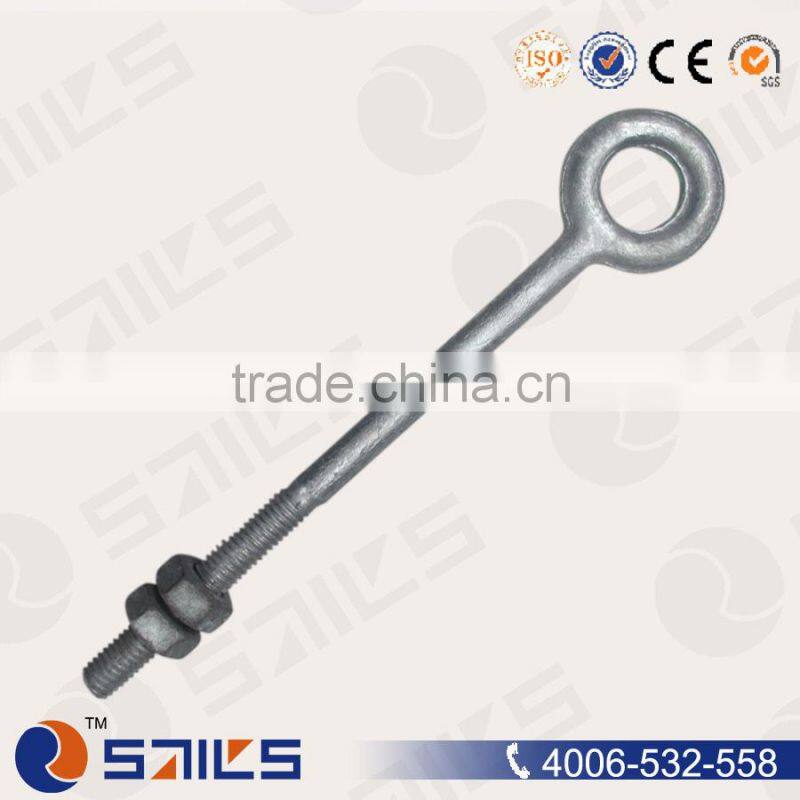

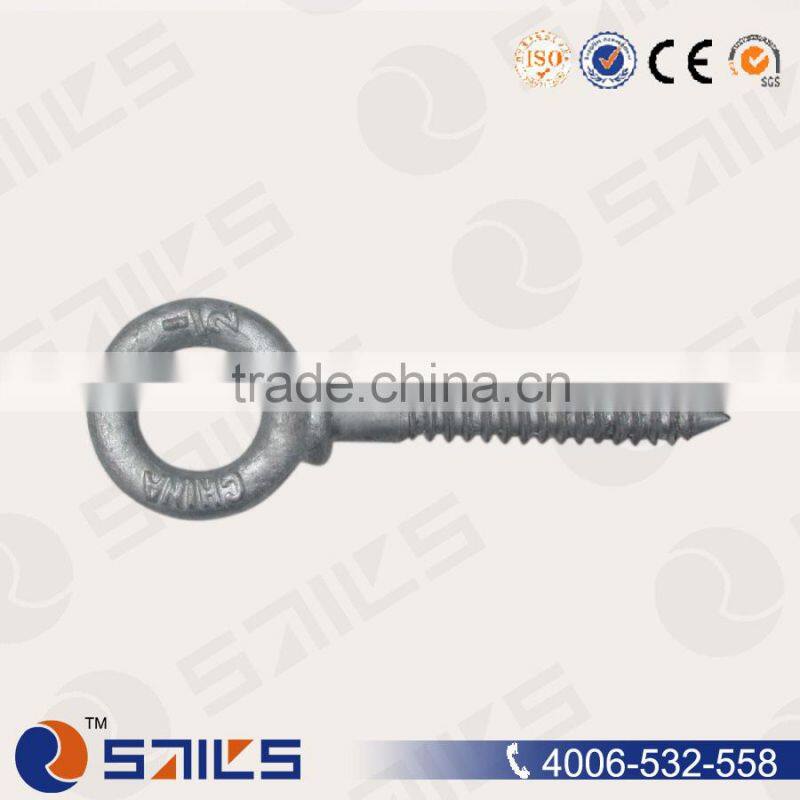

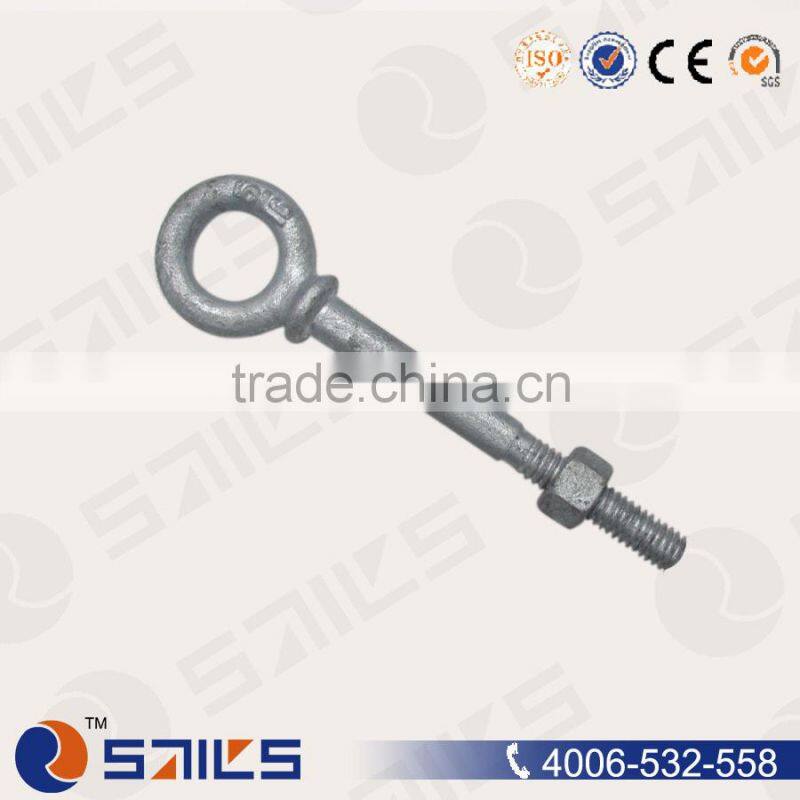

We produce DIn580 Eye Bolt, DIN 582 Eye Nut, JIS B 1168 Eye Bolt, JIS B 1169 Eye Nut, Regular Nut Eye Bolts G-291, Shoulder Nut Eye Bolts G-277, Screw Eye Bolts G-275 with high quality and better price.
1. Reliable quality
We adopted advanced manufacturing process and our products are inspection-exempt products in many countries.
2. Competitive price
We can produce various kinds of eye bolts according to your request on materials, technology, delivery etc. so the prices are different. Welcome to inquire.
3. Prompt delivery
Our company is located in Jimo, Qingdao, which is near to Qingdao port and Liuting international airport. It is very convenient for transportation.
4. Good reputation
We have rich experiences in manufacturing rigging. Our clients ,such as Germany,Australia,North America and Asia, always put their trust in us
If you have any problem,please contact us at once.
We specializing in various riggings, such as shackles, turnbuckles, binders, hooks, eye bolts and nuts, clamps, thimbles, anchors, snap hooks, and stainless steel riggings.Meanwhile, we could take up processing business according to the drawings, samples and materials supplied from customers.
Qingdao Sail rigging Co.,Ltd. warmly welcome friends,at home and abroad, to contact us for business, with the most excellent products and services,to seek common development, and to create prosperity.
