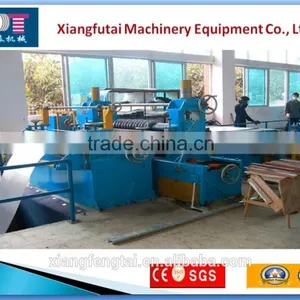

3000 series Aluminum sheets Cut to Length Line
- 25 Unit / Units per Month
- Foshan or Shenzhen
- T/T
- 2014 Sheet used machine cut to length line
- Metal coil metal sheet cutting to length line
- multi steel sheet cut to length line
- high quality cold rolled hot rolled metal coil cutting length line
- Cut To Length Line And Slitting Used To Straighten The Steel Coil And Leveler Machinery Quality Choice
- cold1650mm rolled coil hot rolled coil cutting to length machine
Product Details
Place of Origin: | Guangdong, China | Brand Name: | FOT | Model Number: | FOT- |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
3000 series Aluminum sheets Cut to Length Line1 High efficiency
2. Low investment
3 Automatic production
3000 series Aluminum sheets Cut to Length Line
Cut to length Line
1.Components for 3000 series Aluminum sheets Cut to Length Line
Machine body | 1pc |
Clamp unit | 1set |
Folding equipment | 1set |
Digital-control backstop | 1set |
Slitting system | 1set |
Work piece supporting equipment | 1set |
Hydraulic system | 1set |
PLC Control system | 1pc |
2.Technical parameters for 3000 series Aluminum sheets Cut to Length Line
Max. Folding length | 6500mm |
Throat depth | 650mm |
Max. folding thickness | 1.50mm steel @ 250mpa 2.00mm soft aluminum 1.00mm stainless steel |
Max. slitting thickness | 1.50mm steel @ 250mpa 2.00mm soft aluminum 1.00mm stainless steel |
Max. folding angle | 125 degrees |
Weight | 5.400kg (For reference) |
Slitting speed | About 800mm/sec. |
Slitting mold | rotary slitter |
Control system | PLC with 12’’ LCD |
Size | 9395x1742x1375 |

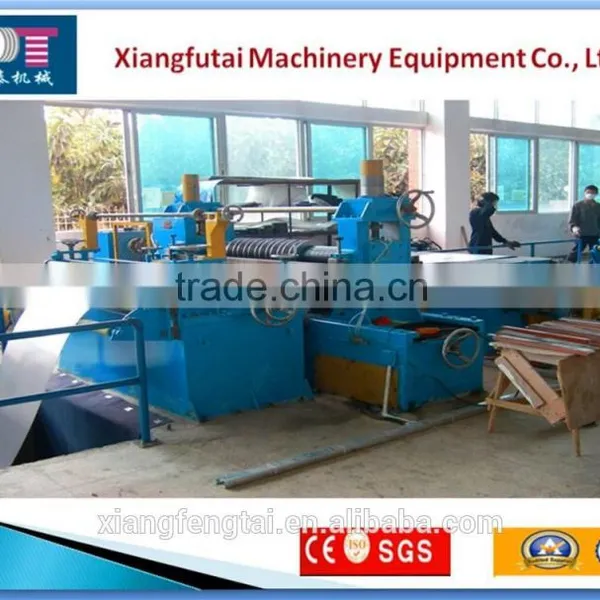

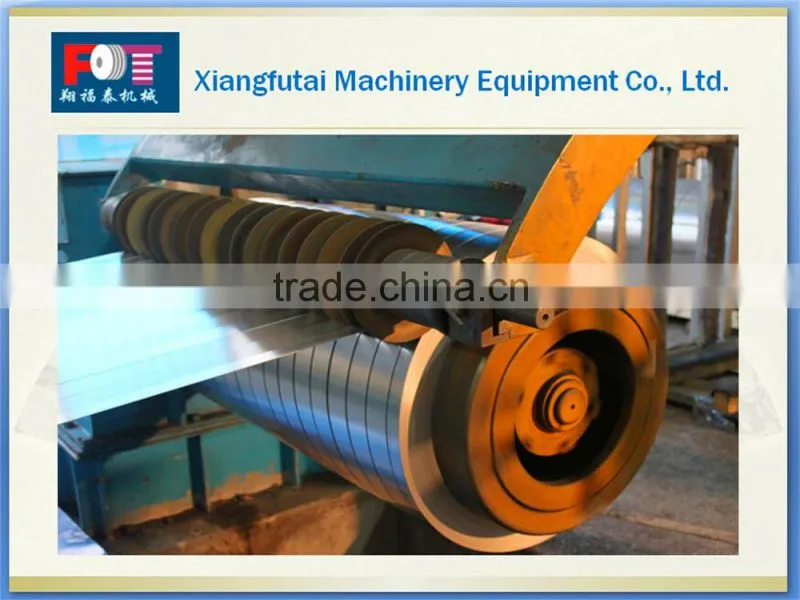

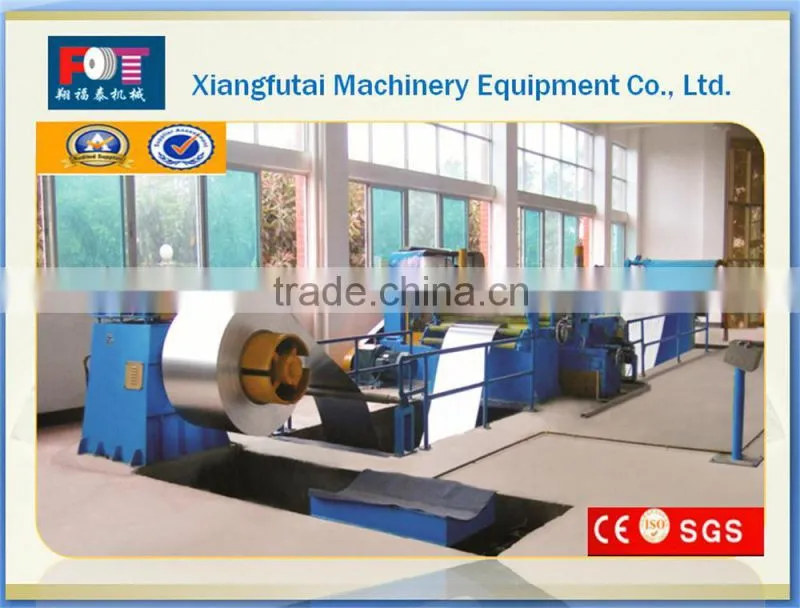

Product show
Main Feature:
Cut To Length Lines is used for uncoiling, straightening, gauging, cross-cutting to length and stacking work. It performs a variety of operational functions including cut sheet leveling, edge trim (if required), cut to length and stack sheets and plates. The cut to length line can make sure of accurate feeding and shearing. It can be widely used in cold or hot rolling carbon steel, tinplate, stainless steel and all the other kinds of metal materials with surface coating.
Cut to length line machine is controlled by PLC system or manually as required by the customer. It has PLC controlled single shaft feeder, the information of length, shearing numbers and speed can be input to the HMI. When the need shearing number is reached the line can stop automatically. The line speed can be adjusted. It has a gauge with high precision, and whole line can work automatically and operate easily thereby producing smooth sheets.
Various Components are included in Cut To Length Machines like coil car, decoiler, entry support device, width adjustor device ,straightening machine, gauge table, shearing machine, run out table, pneumatic discharge and stacker device, unloading table, pneumatic system, Electrical system with computer PLC program control, Hydraulic system etc.
Packing and Shipping
We will use full container to ship the machines.
Have all the parts be fixed in the container by wire or wood.
Spare parts will be packed in a wood box and will have list inside.
About us
Foshan Xiang Fu Tai Machinery is a manufacturer of slitting lines and cut to length lines for metal coils processing. The company is located in Foshan city, the stainless steel industrial base, in Guangdong province.
The lines designed and manufactured by Xiangfutai are of high performance and precision slitting and cutting to length catering to the requirement of modern metal coil transformation steel plants, Service Centers and end-users.
Our lines are exported to South Asia, Middle East, South America, Africa, Europe and have won widespread praise among customers for equipment quality, optimal designing and liability.
Our research and design department is dedicated to developing solutions in tight cooperation with customers, maximizing the productivity, performance and endurance of slitting and cut to length lines.
Our certificate
Our service
- 1. Before-sales
- 1. We will answer the customer asap. (within 24hours)
- 2. We can design the machine according to customer’s detail requests.
- 2. After-service:
- 1. In correct operation & maintaining, the machine is guaranteed for one year
- 2. If necessary, we will dispatch technicians to install and commissioning, and also our technicians will teach and training the customer’s workers to use the machine better.
- 3. We will provide long-term technical assistance.
...
