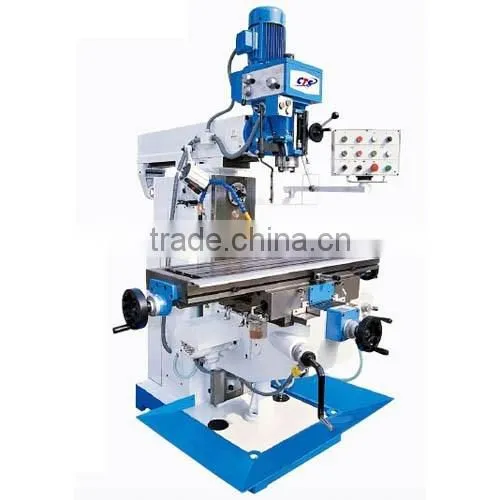

Universal Milling & Drilling Machine 1320*320mm
- 500 Set / Sets per Month
- Qingdao
- T/T
Product Details
| Condition: | New | Place of Origin: | Shandong, China | Brand Name: | CTS |
| Model Number: | 905-0118 | Type: | Vertical | CNC or Not: | Normal |
| Voltage: | 380V | Power(W): | 2.2kw | Dimension(L*W*H): | 1710*1720*2330mm |
| Weight: | 2000kg | Certification: | CE ISO | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Universal Milling & Drilling Machine 1320*320mm
Features:
* High rigidity rectangular table guideways.
* Automatic X, Y axis power feed.
* Lifting motor for headstock.
* Headstock ±45° swiveling.
* Table surface and guideway hardened at ultrasonic frequency.
* Optional X and Y axis power feed.
Specification:
Table size: 1320x320mm
Table travel: 800(750)x300mm
Spindle travel: 120mm
Spindle taper: ISO40
Spindle nose to Table surface: 180-580mm
Spindle center and Column surface: 200-780mm
Max. drilling diameter: 50mm
Max. drilling diameter (auto feed): 14mm
Vertical spindle speed: 90-2000 rpm
Horizontal spindle speed: 38-1310rpm
Spindle motor power: 2.2KW (V/H)
Overall dimension: 1710x1720x2330mm
Machine weight: 2000kg
