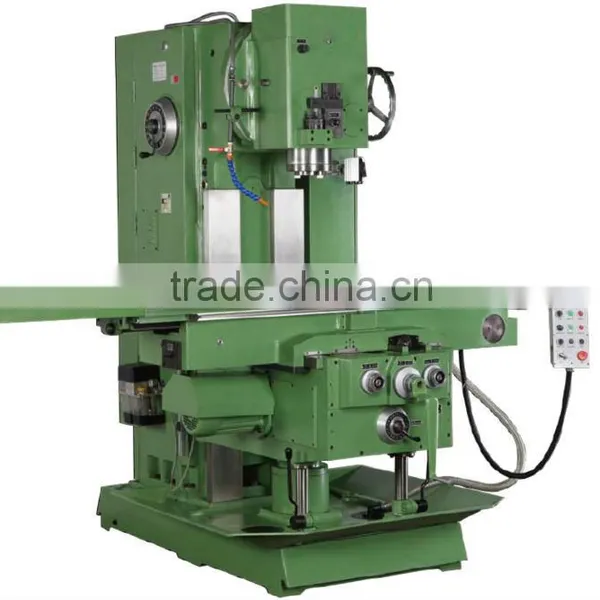

Vertical Knee type Milling Machine 2000*500mm

Name: Vertical Knee type Milling Machine 2000*500mm
Brand: CTS
Availability: InStock

FOB Price

USD $25,000 - $30,000 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Place of Origin:	Shandong, China	Brand Name:	CTS
Model Number:	X5050	Type:	Vertical	CNC or Not:	Normal
Voltage:	380V	Power(W):	15000	Dimension(LWH):	225032002340mm
Weight:	5500kg	Certification:	CE	Warranty:	1 year
After-sales Service Provided:	Engineers available to service machinery overseas

Vertical Knee-type Milling Machine
table size 2000*500mm
high strength colun guideway

Order No.	X5050
Table size	2000×500mm
T-slot (No/Width/Distance)	5-18-80mm
Max. load of table	1500kg
Longitudinal travel (manual/auto)	1530/1520mm
Transverse travel (manual/auto)	360/345mm
Vertical travel (manual/auto)	630/610mm
Cutting feed speed	X/Z:16-800mm/min; Y:5-250mm/min
Rapid feed speed	X/Z:3000mm/min; Y:1000mm/min
Spindle speed range	45-1800rpm; 17 steps
Spindle travel	90mm
Max. swivel angle of spindle	±45°
Distance between spindle and table	95-725mm
Spindle motor power	15kW
Overall dimension	2250×3200×2340mm
Machine weight	5500kg
