Intermediate Power cable pulling machine-copper wire

FOB Price

USD $1 - $2 / Set

1 Set(Min.Order)

Supply Ability 45 Set / Sets per Month
Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	HXE
Model Number	17DS		Usage	Drawing

Product Description

Specification

1. inlet diameter: 2.5-3.2mm

2.outlet diameter: 0.4-1.6mm

3.Speed: 2000mpm

Machine type	HXE-17MDS	HXE-17DS	HXE-17D	HXE-17MD
Control system	Traditional analog type
Inverter control	Dual inverter control
Inlet diameter	2.5-3.2mm	2.5-3.2mm	2.6-3.2mm
Outlet diameter	0.4-1.2mm	0.4-1.6mm	0.4-1.2mm	0.4-1.2mm
Max line speed	1500mpm	2000mpm	1200mpm
Die numbers	17
Slip ratio of m/c	15%+10%	20%+15%	18%+12.5%	15%+10%
frame	Welded by steel plate	Cast iron
Capstan	Ceramic plasma or tungsten
Max capstan diameter	254mm	250mm	260mm	254mm
Fix speed capstan diameter	252mm	250mm	260mm	254mm
Fix speed capstan diameter	252mm	250mm	260mm	252mm
Spooler bobbin size	400mm-630mm/max
Bobbin loading &unloading type	Double end thimble
Traversing unit	90W strap speed down motor type
Main motor	37kw	55kw	37kw
Spool motor	11kw
Transmission type	Precision ground gears		Chain
Revise system	PID synchronous control spooler
Detecting device	Weight balance by swing arm
Tension control	By air pressure adjust
Max loading capacity	500kg/max
brake	Disc brake
Lubrication type for bearing	Oil immersion
Lubrication type	Water immersion +spray type	Full dip in	Spray type
Power source	380V 50/60HZ
Dimension	3500x1200x1250	2100x1022x995	5000x2500x2000
Weight	4500KG	5100KG	3000KG	3000KG

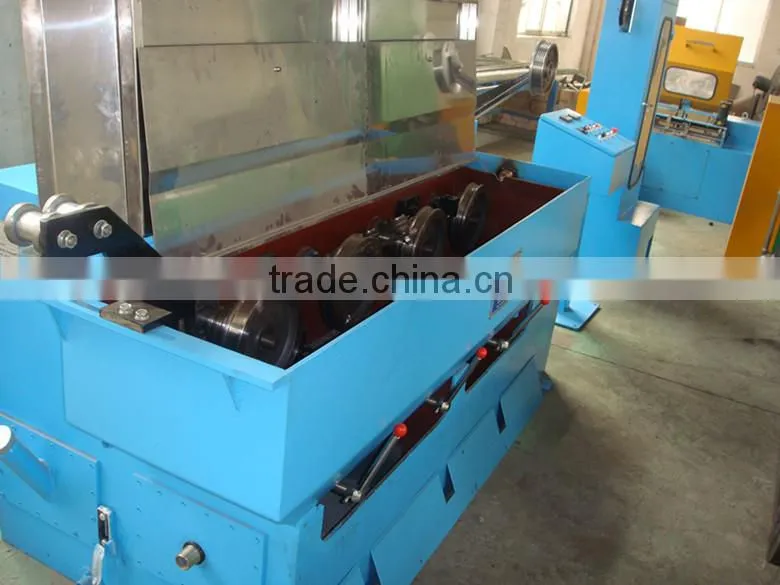

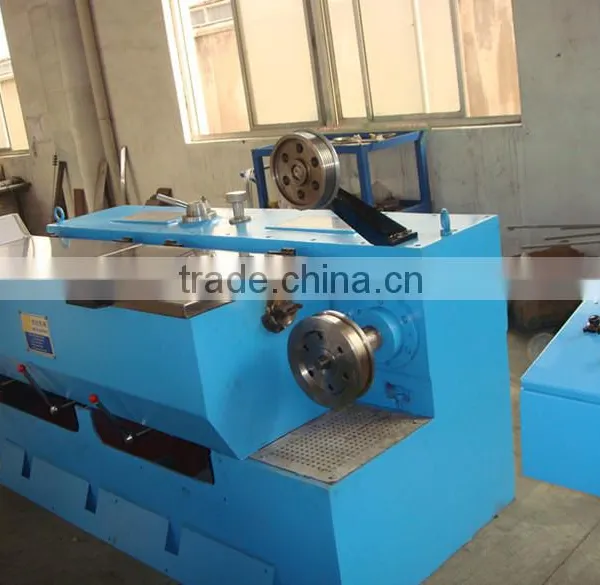

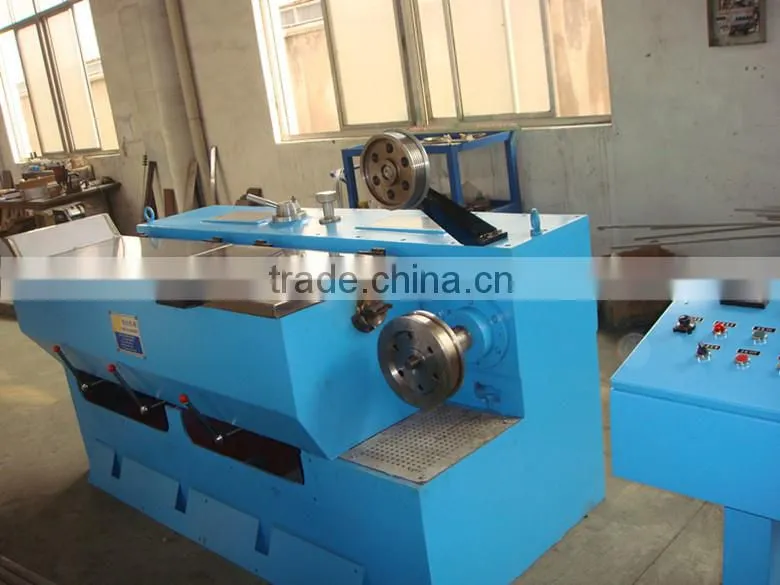

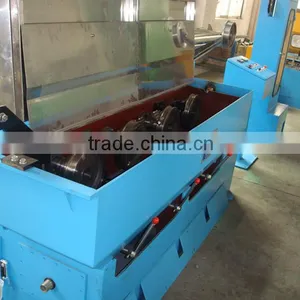

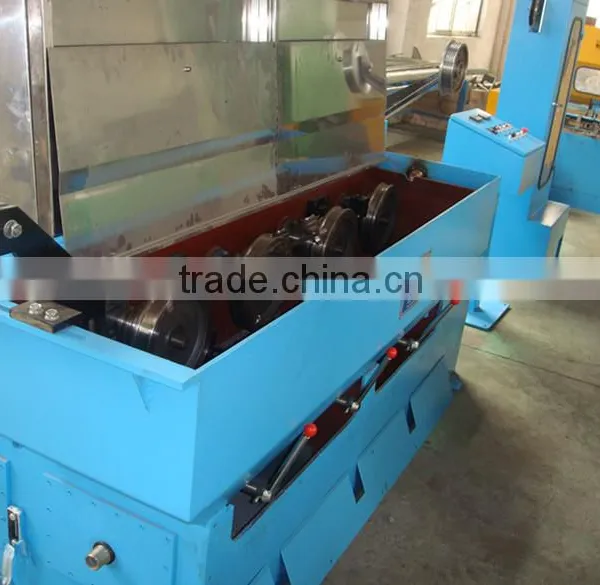

17DS series Intermediate copper wire drawing machine

Certifications

Packaging&Delivery

Exhibition

Brand of accessories

Inverter : Invoance

Motor :Wannan

Precision resistance: WDD military enterprise

Bearing :NSK

Low voltage equipment: France Schneider

Warranty

6 month for electrical part

12 month for mechanical part

After-sell service

Pre-sale training:In order to guarantee the customers are able fully to operate the rod breakdown machine , if the customer need, we can help customer training, includes:

(1) Correct operating mode

(2) Correct maintenance way

(3) Remove simple problem
