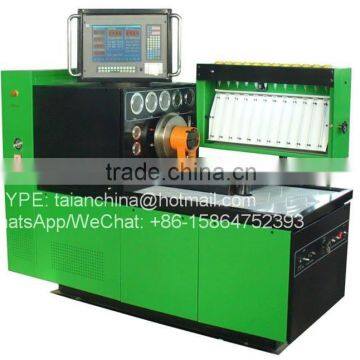

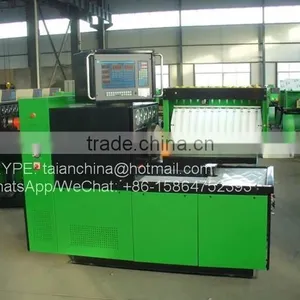

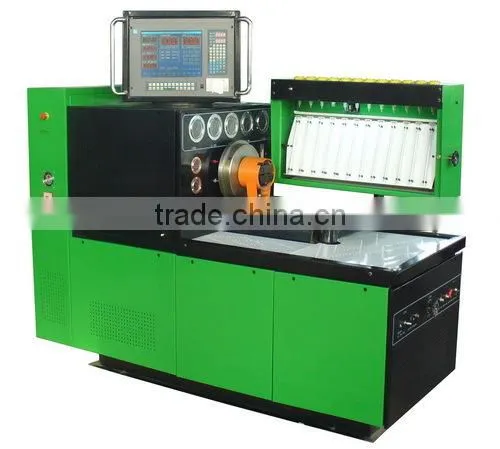

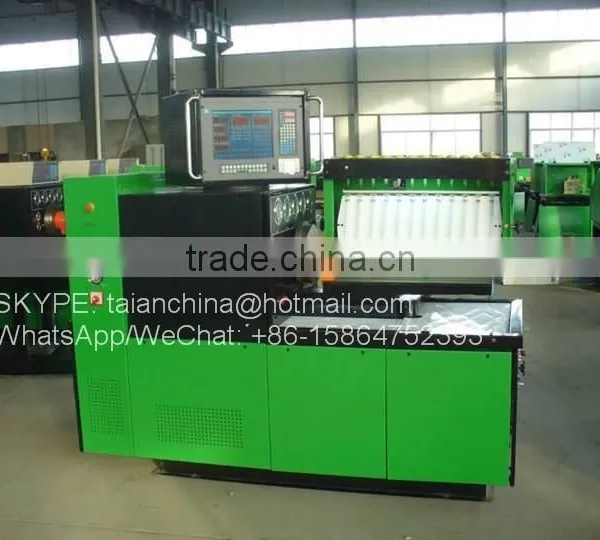

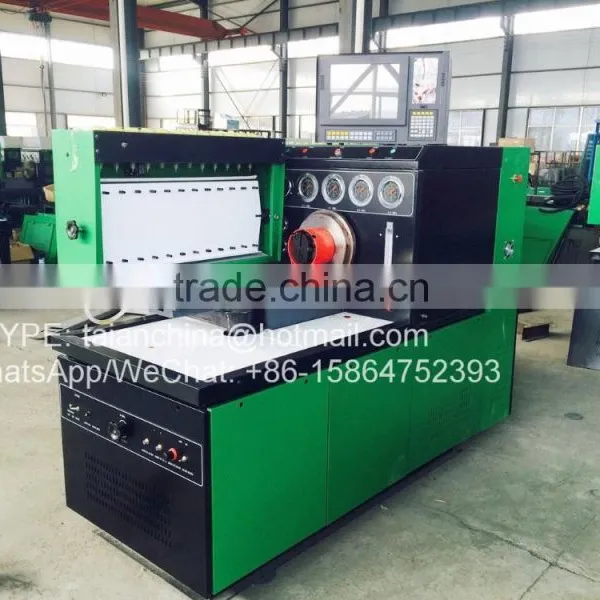

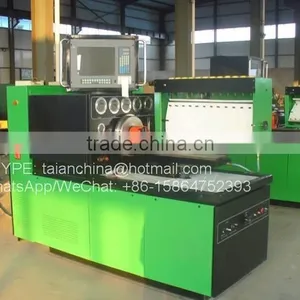

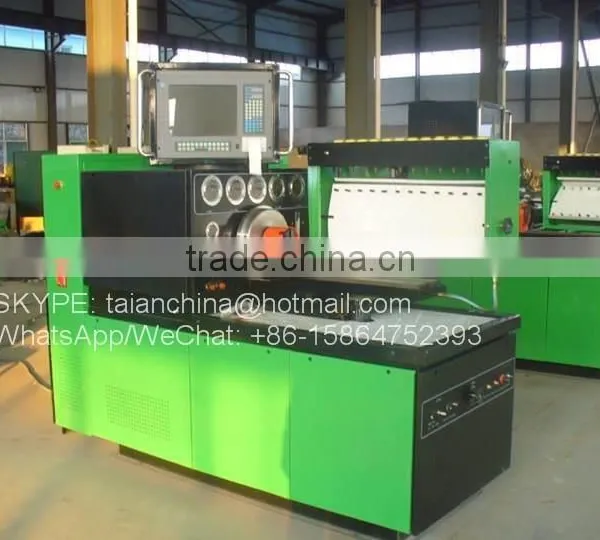

NT2000 diesel injection pump test bench/DIESEL INJECTOR TEST BENCH

Introduction

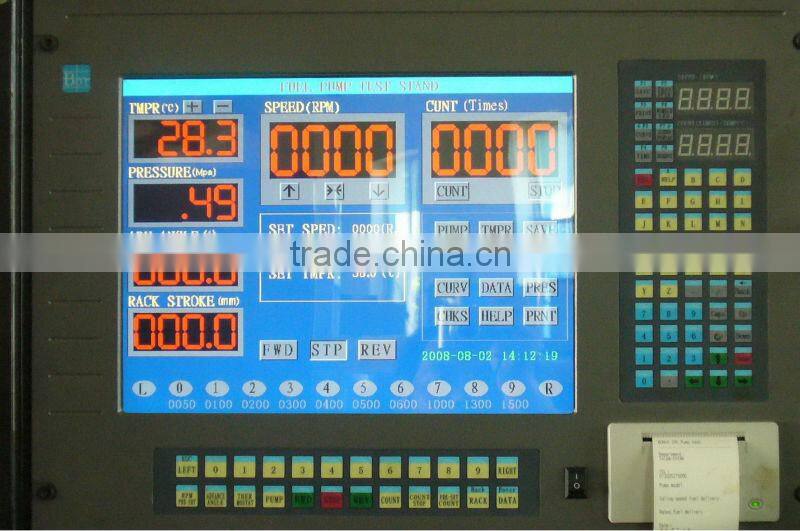

NT3000(NT2001), series color LCD display diesel fuel injection test bench is our newly research hi-technology It controls by industrial computer. all  controls by digital ,Display the rotary speed , temperature, pressure, travel of stroke advance angle and the  technical data of fuel injection pumps display on screen and can print. It’s operation are easiness and quickly.

Used for Bosch in line pumps of K,M,MW,A,B,BV,P(ZU,ZW,ZM) and BOSCH rotative distributor injection pumps EP/VA,EP/VM,VE….F…,also used for Chinese pumps such as Ⅰ,Ⅱ,Ⅲ,K,P7,BQ.etc.

Main function
1.Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)

12 Checking the travel of stroke (on request)
13.oil lubricate (on request)
14. Forced cooling (on request)..

PS:

15:Two operating system(Computer control+Digital control)
