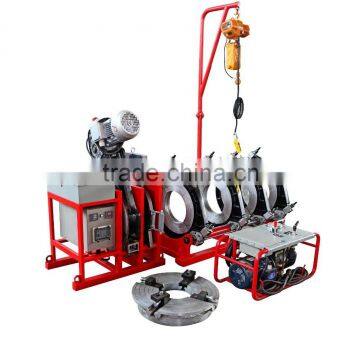

SHD450 HDPE Butt Fusion Welding Machine

Wuxi Shengda Plastic Pipes Welding Machine Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

China

Brand Name:

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin China

Brand Name BD

Model Number 450

Input Voltage 380V

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Plastic pipe butt fusion welding machine SHD-450/200

Plastic pipes butt fusion machine SHD-450/200

u Welding ranges: plastic pipes: 200mm-450mm

(200mm—225mm—250mm—280mm-315mm-355mm-400mm-450mm)

u Ranges of application: PE,PP and PVDF

u Working voltage: ~380V ±10%,50Hz

Total power: 8.2 kW, including: planing tool:1.5 kW, heating plate:5.2 kW, hydraulic unit motor: 1.5kW

u Working voltage: ~415V ±10%,50Hz

Total power: 9.2kW, including: planing tool:1.5 kW, heating plate:6.2 kW, hydraulic unit motor: 1.5 kW

u PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature ≤±5°.

u Environment temperature: -10° ~ 45° ;

u Electronic count-down timer for heating and cooling time ;

u Whole machine consists of basic frame, heating plate, planing tool, hydraulic unit and support (for planing tool & heating plate)

ACCESSORIES LIST

SHD-450/200 Butt fusion welding machine

Item	Description	Unit	Qty	Remark
1	Basic frame	set	1
2	Inserts	set	1
3	Hydraulic Unit	set	1	Include high-pressure oil hose
4	Support	set	1
5	Planing tool	set	1
6	Heating plate	set	1	Include connection cable of heating plate
Attachment with machine
1	Tool box	Pcs	1
2	Special bolt for clamp	Set	1	M10
3	Ratchet wrench	Pcs	1	30
4	Double open wrench	Pcs	1	17~19
5	Screwdriver	Pcs	1	200mm
6	Blade of planing tool	Pcs	2
7	Operation instruction	Pcs	1
8	Conformity certificate	Pcs	1
Spare parts
1	Temperature sensor	Set	1	PT100
2	Special screw bolt	Set	2
3	Heating switch	Set	1

PACKING LIST

SHD-450 Packing list

Item	Dimension with packing(mm)	N.W(kg)	G.W(kg)	Remark
1	1480×1050×1050	300	420	Basic frame ,liner(400~200mm)
2	760×490×620	65	85	Hydraulic unit
3	860×1010×1410	160	250	Heating plate,planing tool, support, attachments and fittings
Total	3.1CBM	525	755
