NEWSHINE Through Hole FND 1.9mm 3.0mm 5.0mm Colors Dot Matrix Square LED 5x7

NEWSHINE Through Hole FND 1.9mm 3.0mm 5.0mm Colors Dot Matrix Square LED 5x7

Application:

1)       Semi-outdoor/outdoor or indoor using, elevators/lift, led strip display, clock display and other different display areas of digital instruments, display screen modules, mechanical & medical equipments.

2)       Customized LED Panel Displays: Application for household appliance, special using LED

Specification/Parameter:

1)       Size Available: Φ3.0mm, Φ3.7mm, Φ5.0mm, Φ7.62mm, Φ10mm

Lens/Epoxy: Water Clear, Diffused color, Red color, Green color etc.

2)       Emitted Color Available

Single: Red, Orange, Yellow, Green, Blue, Yellowish-Green, White color LED

Bi-color: Red & Green, Red & Blue, Red & Orange, Green & Yellow etc.

RGB: Red & Green & Blue, Red/Yellow/Green etc. or other customized combination

3)       Characteristics:

1. High luminous intensity output
2. Low voltage and current operation
3. Ultra-low power consumption, Solid-state lighting chips inside, SSL.
4. IC compatible, easy mounting & installation on PCB/sockets
5. Meet TUV ROHS certifications
6. Providing free sample for testing for common models

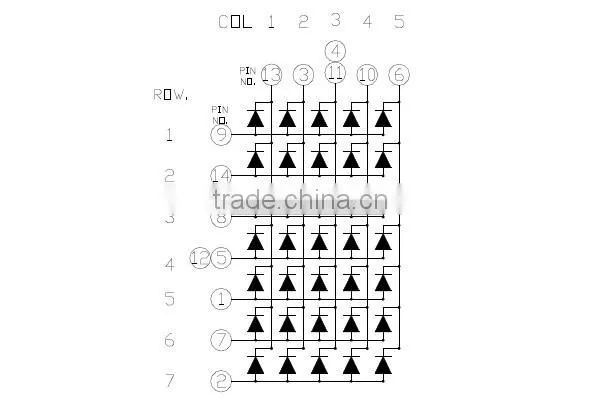

Size & Dimension/Pins Layout, Circuit Diagram

Related 5*7 5*8 8*8 16*16 LED dot matrix display component modules

 [5.0mm RGB LED dot matrix 8*8  series]

[--1.9mm 8*8 LED Dot Matrix XH-7088, 2.0CM*2.0CM]

[--2.9mm/3.0mm 5*7 LED Dot Matrix XH-12057] Image as above.

[3.0mm 8*8 LED Dot Matrix XH-12088, 3.2CM*3.2CM]

Advantages of Our LED diaplsy components/LED dot matrix/LED segment/alphanumeric digits display

1. 7*24 hours online Email service

2. Quick production schedule/arrangement

3. Professional LED display/panel/solutions provided

4. OEM/ODM services provided

5. Multi-ways for payment terms & Shipping solutions.

Major technological process of NEWSHINE LED dot matrix/digit/alphanumeric displays

Shipping Solutions with NEWSHINE

Also, by AIR/SEA are all available for future cooperation; Drop-Shipping supportable.

Payment Terms:

PP, Western Union, T/T ,

ESCROW, Ali-Secure, L/C, OA are all negotiable for long-term cooperation!

Common Questions:

1. What's the LED display components advantages, compared to LCD items?

: Brighter intensity luminous, multi-color LED choices & longer lifespan.

Also we could do special/customized LED panel display solutions base on prototype design/projects.

2. Are your LED dot matrix/digit & alphanumeric displays DIP or SMD encapsulation?

: All NEWSHINE led dot matrix, led digit displays, led customized displays are using DIP encapsulations.

3. How long can the display items last during high-temp. reflow soldering?

: 3 Seconds @260degrees.

Could not be stay longer than 3 seconds in high temperature conditions.

4. Could we use common China Post shipping, to test the samples?

: Yes, we can provide free sample plus free China Post shipping for common items, otherwise

this will last a little longer period to see the led dot matrix display/digital display items.

Should wait for the transportion patiently!

For more or any questions, contact us freely via EMAIL or other IM! Energy Saving Specialist—
