Home > Products > SMA connector > Coaxial Type RF Cable IPX1.13 u.fl to SMA Connector

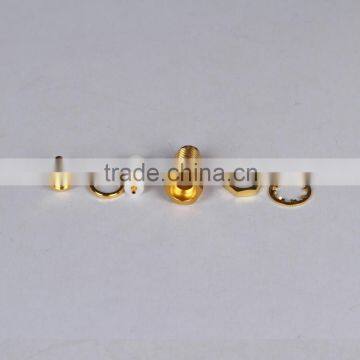

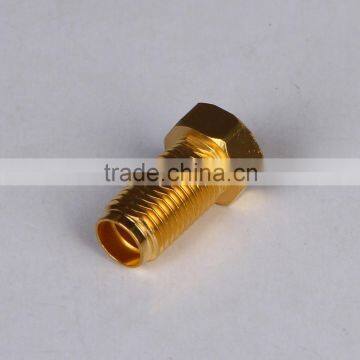

Coaxial Type RF Cable IPX1.13 u.fl to SMA Connector
USD $0.1 - $0.9
/ Piece
100 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- Hongkong
- Credit Card
You May Like
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | SH-Link | Model Number: | SMA-KY1.0 |
| Type: | SMA | Application: | RF | Gender: | Female |
Product Description
Specifications
Top quality with reasonable price
fast and safe delivery for door to door
Accept Small trial orders and wholesale
Temperature range | -55—+155℃(PE Cable -40—+85℃) | ||
| Vibration | 98m/S²(10-2000Hz)10g | ||
| Impedance | 50Ω | ||
| Frequency range | DC-12.4GHz(Semi-Rigled Cable DC-18GHz) | ||
| Working voltage | 335V r.m.s at sea level | ||
| Withstanding voltage | 1000V r.m.s at sea level | ||
| Contact resistance | |||
| Center contact | ≤3mΩ | ||
| Outer contact | ≤2.5mΩ | ||
| Insulation resistance | ≥5000MΩ | ||
| Center conductor retention force | ≥0.28N | ||
| Coupling nut retention force | ≥180N | ||
| Insertion loss | ≤0.15dB/6GHz | ||
| Voltage Standing Wave Ratio | |||
| Straight | ≤1.10+0.02f | ||
| ≤1.07+0.018f | |||
| Right angle | ≤1.20+0.03f | ||
| ≤1.17+0.02f | |||
| Durability(mating) | ≥500(Cycles) | | |
