15KV High Voltage Dry Type Air Core Reactor Shunt Chokes

    15KV high voltage dry type air core reactor shunt chokes

Shunt reactor is mainly used for curbing higher frequency voltage caused by capacitance effect under the long circuits of no load or light load.

 Technical Specification:

Service Conditions:

1. Service Site: Indoor or Outdoor

2. Ambient Temp.:-40~40 Degree (Or According To Customer's Requirement)

3. Altitude: <=10000m (If It Exceeding To 1000m, Pleas Declare In Order).

4. Max. Wind Speed: 35m/S

5. Relative Humidity: <=90%

6. Earthquake Resistant Capability: Horizontal Direction 0.3g Verticle Direction0.15g (Or By Customer's Requirements)

Basic Ordering Data:

Rated Capacity: 1333~20000KVAR

Rated Voltage: 10~35KV as customzied

Max. Operating Voltage of Shunt Reactor

Rated Current: 165~2598A

Rated Reactance: 2.20~122.30Ω

Cooling Method: AN or AF

Operation Site: Indoor/Outdoor

Features:

1.Good safety. Reactor can be running safely under the condition of damp, rain, ice, situation outdoor.

2.High mechanical stability, good dynamic thermal stability.

3.Low noise, low loss.

4.Flexible installation, space saving, easy maintenance.

Packing:Security Export Wooden Cartons

Delivery Time:7-30 days,by air or by sea as the customized

HSLEC  is one professional manufacturers and exporter of power distribution transformers in China. All facilities are ISO 9001 certified and all products are manufactured to the highest quality standards, comprehensively fulfilled the requirements of international standard specifications and their stringent requirement.


HSLEC Holds decades of experience and unique technology & designning, Everpower has grown in geographical reach, market size and product range. Today it stands as one of the most professional and trusted brand name among all the customers. For more information on HSLEC and its products and services please click one of the following links:/

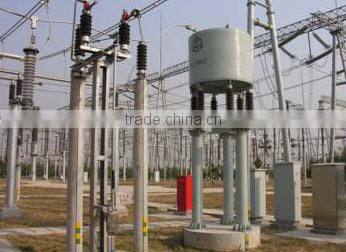

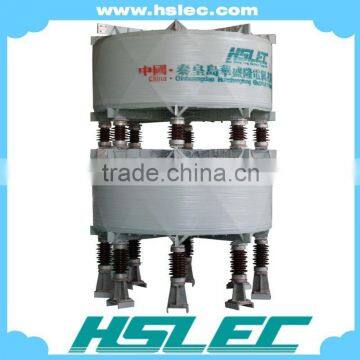

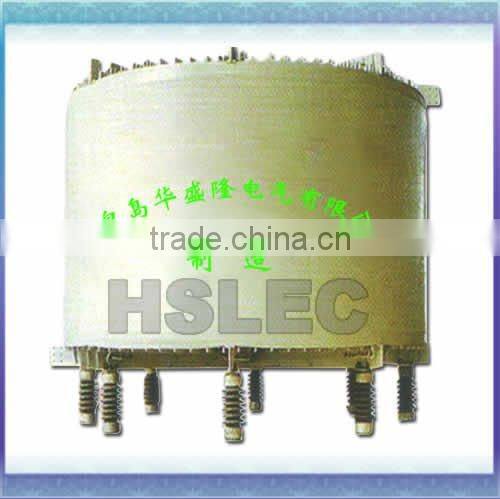

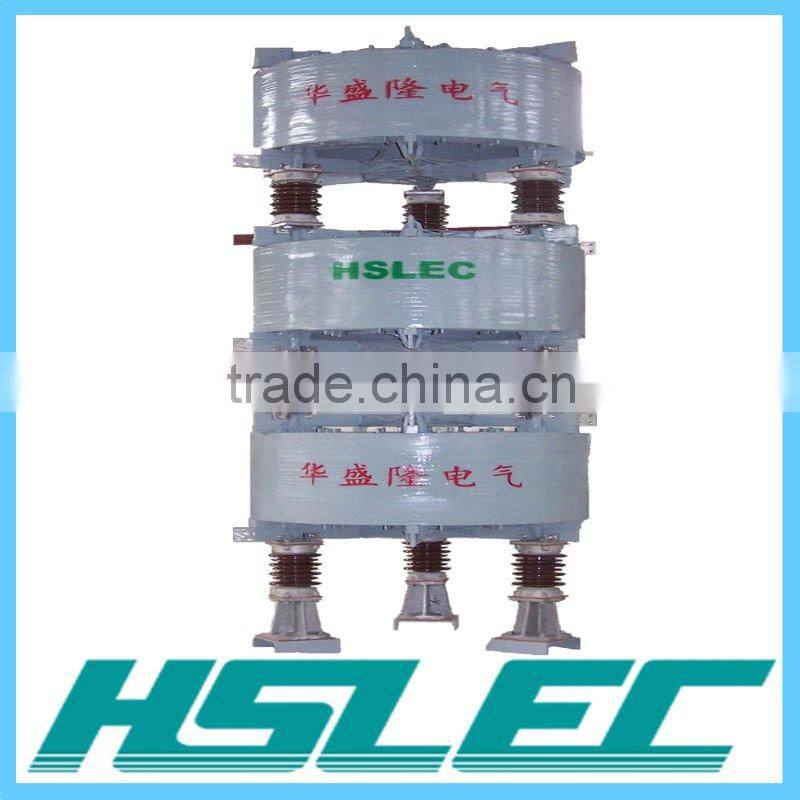

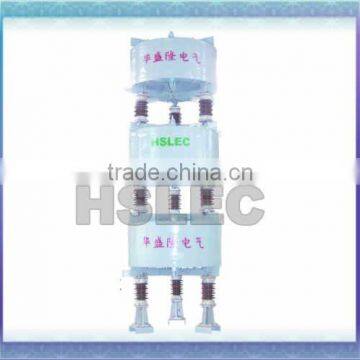

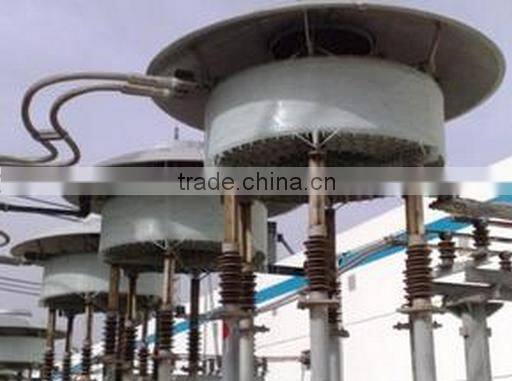

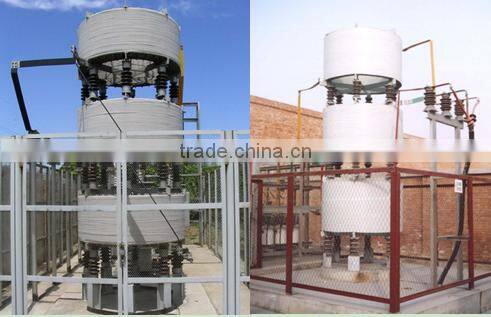

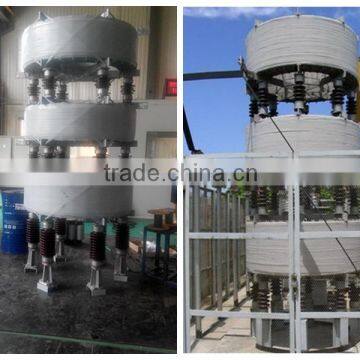

Product Photos:

Certification:

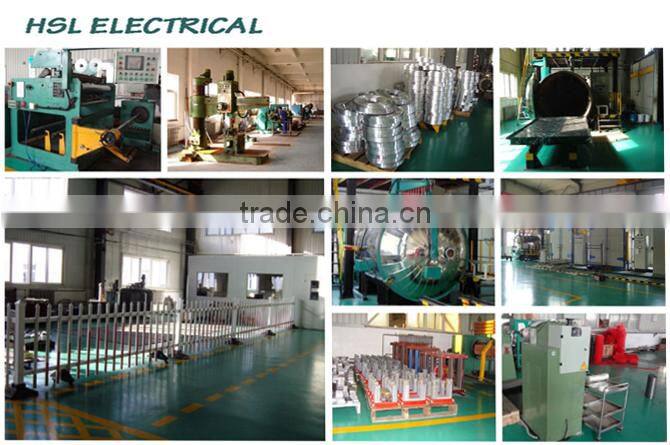

Factory&Workshop Photos:

ISO&CE CERTIFICATIONS

Customers Visiting

HSLEC offers a complete range of services for the care and maintenance of transformers,

from carrying out external evaluations and field-testing to undertaking full relocation projects.

•     Before –Sales

HSLEC excels at helping customers find ways to reduce cost. Using computer programs design

calculations enable millions of interative calculations converging to a very optimum design.

•    After-Sales

1.        Transformer Accessories :

HSLEC provides a complete line of transformer components and accessories, which they

are available in stock and can be ready to ship for emergency needs.

2.        HSLEC offers a full range of after sales service:

Tracing the quality of the product; site installation and commission; training customer staff ;

periodical customer visit, and so on.

•     Warranty Policy

a)        The guarantee of the individual transformer or reactor to be supplied shall be for 12 months from the date of delivery against any delivery manufacturing defect on account of improper design, bad workmanship or poor quality of raw material used etc. and any such defects occurring within the above period will be repaired/replaced by us provided the maintenance of transformer are done as per relevant specification.

b)        All claims under this warranty must be submitted in writing to HSLEC within 30 days of the occurrence,Upon receipt of such notice,HSLEC shall promptly repair or replace the defective GOODS or part thereof without any cost.

c)        The warranty shall be void if (a) the equipment is damaged by the customer, is improperly used, is subjected to an adverse operating environment, or is operated outside the limits of its electrical specifications; (b) the equipment is repaired or modified by anyone who is not  familiar with this product. or (c) has been used in a manner contrary to the product's operating manual or other written instructions.

1.Q: Are you manufacturer or trading company?

   A:  Manufacturer

2.Q: What is your minimum order quantity?

   A: 1 set.

3.Q: What is your delivery time ?

   A: Depend on the type of product.

4.Q: What is your payment term?

   A:  30% advance by T/T  , 70% before delivery by T/T or L/C or we can discuss about it.

5.Q: What kind of starndard you follow?

   A:  IEC, GB, etc

6. Q: What kind of supporting documentation you can provide normally

    A: Quotation,outline drawing,manufacturing plan, quality control plan,testing plan, financial report, type test report,reference list,etc

7. Q:What is your normal wanrranty period?

     A: 12 months after goods shipped.

8. Q: Can u do installation and commissioningin user's site?

     A: Yes, we can send our installation team to user's country for service.

9. Q: Do you have any experience in this kind of product?

     A: Yes, we can provide reference list for check.
