Komatsu SA6D125E, SA6D125E-2 connecting rod, con rod, 6151-31-3101,6151-31-3200

Specifications

Forged connecting rod
1. S6D125 connecting rod
2.Warranty: 1 year
3.CNC Productline.
4.20 years experience.



Komatsu S6D125, S6D125-1 connecting rod, 6151-31-3101,6151-31-3200

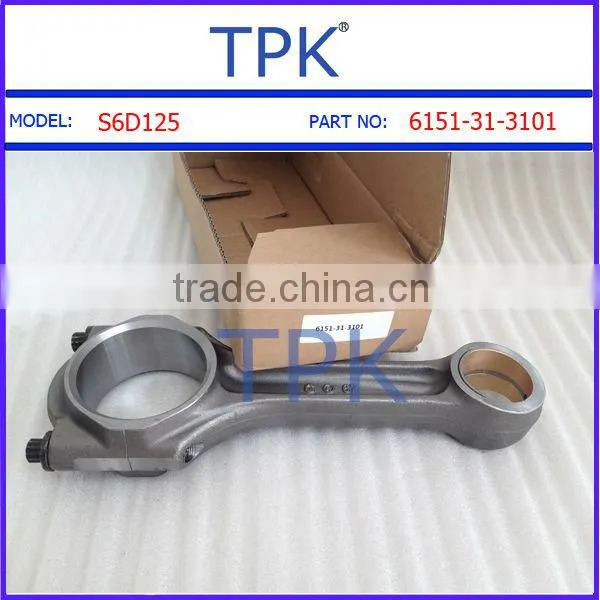

The following is the special picture for S6D125 CON ROD ASSY:









S6D125  ENGINE PARTS:



CYLINDER KIT
LK512150 Cylinder kit 6
6151-31-2060 Piston kit 6 With pin & retainers
6151-31-2150 Piston body 6
6151-31-2420 Piston pin 6
04065-04018 Retainer piston pin 12
6150-31-2033 Ring set 6 1 cyl set
6151-22-2220 Cylinder liner 6 Without sealing ring
6150-21-2250 Cylinder liner oring 6 Seal
6150-21-2240 Cylinder liner oring 6
6150-21-2230 Cylinder liner oring 6
BEARINGS
6150-21-8000 Bearing main set 1 Std, Includes thrust washer
6150-21-8010 Bearing main pair 7 Std, flanged
6150-29-8010 Bearing main pair 7 0.25mm, flanged
6150-28-8010 Bearing main pair 7 0.50mm, flanged
6150-27-8010 Bearing main pair 7 0.75mm, flanged
6150-26-8010 Bearing main pair 7 1.00mm, flanged
6150-21-8050 Thrust washer 1 Std
6150-29-8050 Thrust washer 1 0.25mm
6150-28-8050 Thrust washer 1 0.50mm
6150-27-8050 Thrust washer 1 0.75mm
6150-26-8050 Thrust washer 1 1.00mm
6150-31-3040 Bearing rod pair 6 Std
6150-39-3040 Bearing rod pair 6 0.25mm
6150-38-3040 Bearing rod pair 6 0.50mm
6150-37-3040 Bearing rod pair 6 0.75mm
6150-36-3040 Bearing rod pair 6 1.00mm
6150-31-3130 Bushing con rod 6
6151-31-3230 Bushing con rod 6
D75A-1
6150-21-1490 Bearing cam 7
GASKET & SEALS
6151-K1-9901 Set cylinder head 1
6151-K2-9901 Set conversion 1
6151-K6-9902 Set water pump 1
6150-17-1813 Gasket cylinder head 6
6150-11-8810 Gasket valve cover 6
6150-11-5810 Gasket manifold exhaust 6
6150-13-4810 Gasket manifold intake 6
6150-21-5812 Gasket oil pan 1
6150-21-3230 Seal crankshaft front 1
6151-21-4161 Seal crankshaft rear 1
CAMSHAFT
6150-41-3111 Pushrod 12
VALVE TRAIN
6150-41-4111 Valve intake 12
6150-41-4210 Valve exhaust 12

6136-42-4520 Valve keeper 48
6150-12-1341 Valve guide 12 Intake
6150-12-1351 Valve guide 12 Exhaust
6140-41-4540 Valve stem seal 12
6150-41-4411 Valve spring 24
D65EX/PX-12
6150-41-4420 Valve spring 12 Intake
D75A-1/S-5
6150-41-4411 Valve spring 12
Exhaust, D75A-1/S-5
6150-41-4510 Valve spring seat 24 Upper
6150-41-4430 Valve spring seat 24 Lower
6151-11-1330 Valve seat 12 Intake
6150-11-1320 Valve seat 12 Exhaust
6136-11-1130 Injector sleeve 6
CRANKSHAFT
6151-35-1010 Crankshaft 1
OIL / LUBE SYSTEM
6151-51-1005 Oil pump 1
FUEL / INJECTOR
6150-11-3101 Injector assembly 6
Group 1
6150-11-3120 Injector nozzle 6
Group 1
6151-11-3101 Injector assembly 6
Group 2
6151-11-3121 Injector nozzle 6
Group 2
COOLING SYSTEM
6151-61-1121 Water pump 1 Heavy duty
600-421-6310 Thermostat 1
6138-11-6810 Gasket thermostat hsg 1 Oring



Packing:



1: TPK packing

2: according with your requirments



Shipping



(1): By sea

(2): By air

(3): By express (DHL, FEDEX, TNT, EMS... )



1: 24 hours online service by Skype, Msn, Yahoo, QQ...

2: email replaying in 8 hours after got your email.



Guangzhou TPK Diesel Parts Co.,Ltd, Build in 1996, is a professional  manufacturer on Diesel Piston, Piston ring, Cylinder Liner, Head Gasket & Overhaul Gasket Kit. TPK has been cooperating with OEM factory in China for several years, running business mainly in imported diesel engines ( Such as CAT, CUMMINS, KOMATSU, HINO, DAEWOO, ISUZU, MITUSUBISHI, NISSAN, YANMAR, and TOYOTA). All products in TPK have passed the national quality supervision on combustion engines and obtained certificates from ISO9002.



Till now, TPK has four storehouses in Guangzhou, occupying an area of over 5,000 square meters. The number of employees in TPK reaches up to 100, among which include 20 sales personnel in China, 15 sales personnel outside China, 10 QC personnel. TPK products command a ready market in Europe, Middle East, South America, North America, and Southeast Asia and are well received.



With the principles of international brand, good quality, shared resources, and serving the world, TPK endeavors to provide perfect accessories replacement solutions for customers. TPK is ready to cooperte with you to reach a win-win future.
