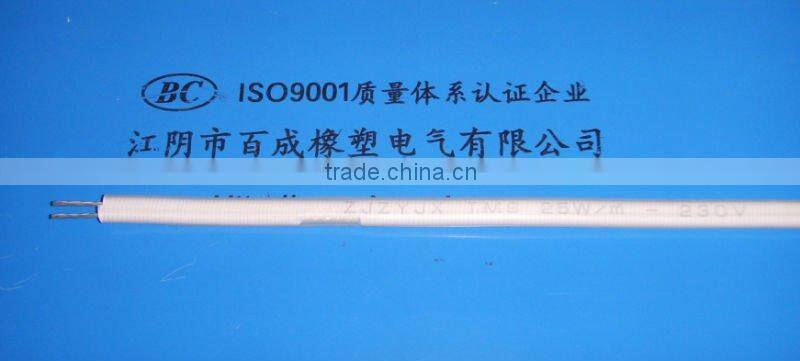

Elliptic Style Constant wattage parallel circut heating cable 50W/M ce

Specifications

1 Standard UL
2 Insulation silicone rubber
3 Conductor nickel copper
4 we could offer sample and have factory price



Application Field

Ground heating of buildings, refrigerators and warehouses; chute heating, gutter and roof defrosting;



Characteristics

(1)Good temperature resistance. The whole body uses silicon rubber as the insulation heat conduction material (including power cord), and work environment temperature is -60 to ±200°C.

(2)Good heat-conducting property: Generate heat energy by passing to directly conduct heat, high thermal efficiency, capable of heating in short time to achieve the effect.

(3)Reliable electrical property: When each heat tape leaves the factory, conduct strict DC resistance, soaking high pressure, insulation resistance and other tests to ensure quality.

(4)Firm structure, flexibility and easy bending: Combine the whole cooling end section, no binding point. Rational structure, easy installation.

(5)Strong designability: Heating length, leadwire length, rated voltage and power are determined by users.

Product Structure

1-Heating wires are two tinned copper wires with section of 0,75m2.

2-Isolated layer is made of silicon rubber by extrusion.

3-High strength alloy wire spiral and silicon rubber surface are the heating center.

4-Airtight cladding made by extrusion method.



Product Specification

The voltage 36V-240V is determined by the user.

(1) 25W/m, withstand voltage AC3500V, use longest limit 65m.

(2) 40W/m, withstand voltage AC3500V, use longest limit 50m.

(3) 50W/m, withstand voltage AC3500V, use longest limit 44m.
