Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Tele Machine | Model Number: | manual press machine TL-YZJ-260 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

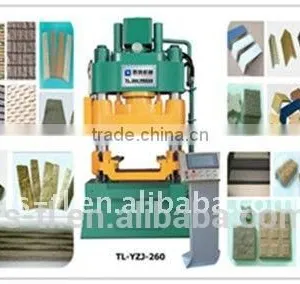

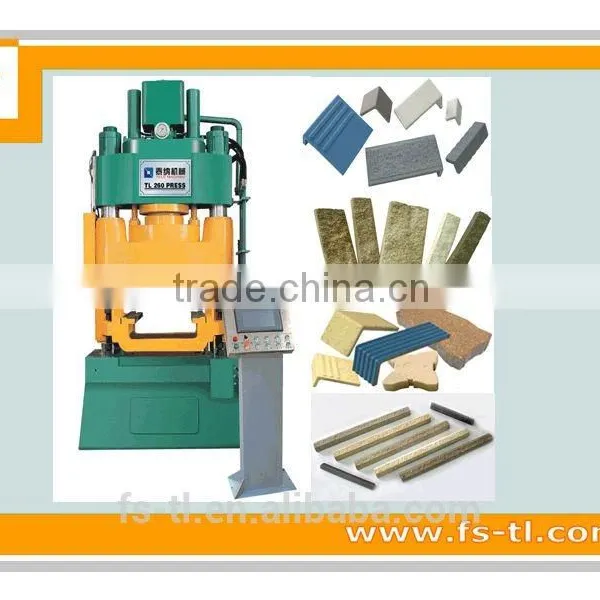

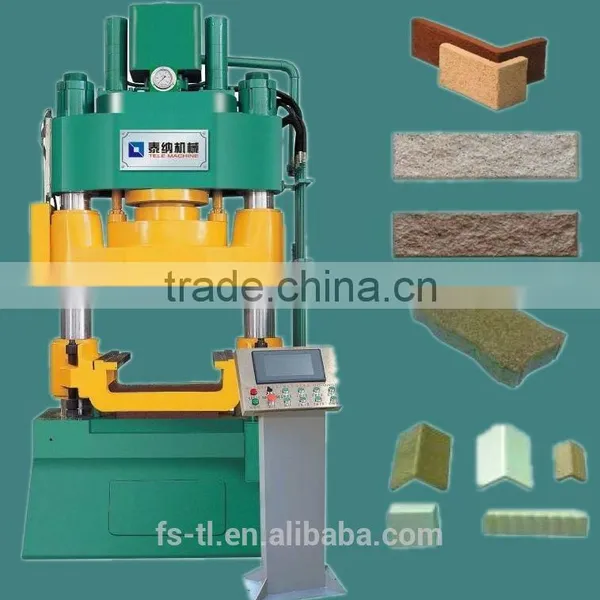

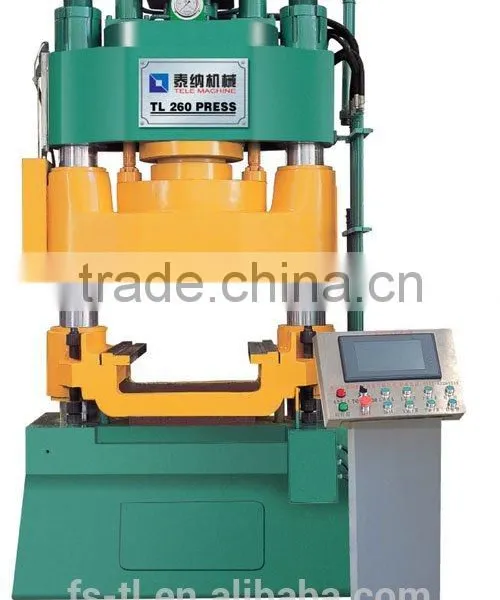

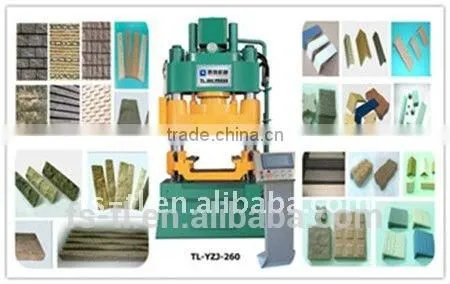

manual press machine for dry-form ceramic tiles China TL-YZJ-260
Major Technical Parameters of Hydraulic Tile Press Type TL-YZJ-260 | |||
| |||
Dimension L x W x H (mm) | Main Cylinder Max. Pressing Force (k n) | Working Table L x W (mm) | Motor Power (kw) |
1,600 x 750 x 3,055 | 2600 | 700 x 900 | 22 |
Working Frequency. (1/min) | Lower Cylinder Ejecting Force (k n) | Lower Cylinder Ejecting Stroke (mm) | Net Weight (kg) |
8~10 | 110 | 120 | ≈ 9000 |
| |||
Features of This Type | |||

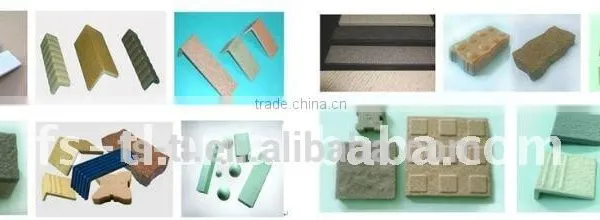

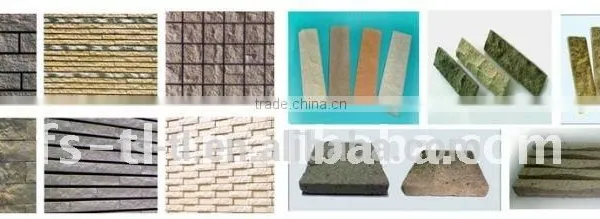

1. Mainly for producing special-shape ceramic tiles or ultra-thick tiles, like corner tiles, split rocks etc. by adopting dry pressed-forming process, to get more trendy and characteristic constructional materials. 2. Patterned technology guarantees good performances and easy dealing with varied technical parameters of different kind special ceramics, like angle, thickness, pressing-force, feeding-conditions during work. 3. Matched with the corner tiles further processing equipment & TL-PZJ-PY splitting machine to realize corner tiles whole process & split rocksproduction. | |||
