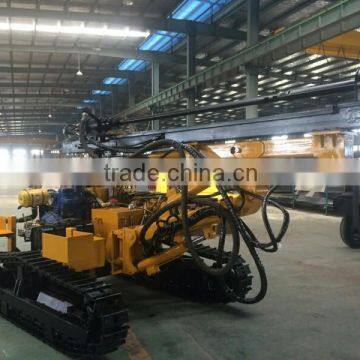

high quality Bore hole mining drill rig for quarry

Specifications

Bore hole mining drill rig for quarry
1.Dia:85-150mm
2.Depth:25-30m
3.Working pressure:0.7-1.4mpa
4.Air Capactity

Bore hole mining drill rig for quarry





1. Using the computer optimization design, the vehicle structure is compact, good appearance.

2. According to the function layout, install valve, handles, convenient operation.

3. Adopts hydraulic   transmission, Energy saving, high efficiency, low noise and low cost.

4. Special structural design, can achieve flank holes drilled chisel.









Application:



It's main applied to quarry,railway,hydropower,open pit mine,and construction and others projects deep hole in the rocking drilling operations arbors.

 Can be horizontal,vertical,tile,and other parties blast hole bits,pre-hole ,bole hole.



QKZ3000 roof bolter is an electric selfpropelled crawler, lightweight, efficient, multifunction drilling equipment.



Whichis mainly applied to anchoring, jet grouting and drilling in construction of subway, highrise buildings, airports,

ground source heat pumps and other deep foundation.

 QKZ2000 Electric Deep Rock New m60 Drill Rig



1.Suitable for drill pipe DTH drilling, overcoring and mud pump drilling, drilling pipe and drivepipe composite drilling process, and so on.

2.Adopted the new type hydraulic technology, matching with large hydraulic motor torque turn and big diameter hydraulic oil cylinder propel. Power source was supplied by famous engine for the hydraulic system , the design of two levels of the air filter, prolong the service life of the diesel engine.

3.The unique design for the pump group make it convenient maintenance, and reduce maintenance cost.
4.Used the excavator crawler chassis, have a cross-country performance .



 Technical parameters of QKZ2000 Electric Deep Rock New 60M Drill Rig





Technical specification:





model diameter mm depth m Working pressure MPa Air consumption M3/min Rotation speed/rpm Dimension QKZC-1000 80-150 ≥25-30 0.7-1.4 9-17 0-90r/min 4600*2030*2020mm QKZC-2000 80-150 ≥25-30 0.7-1.4 9-17 0-90r/min 4600*2030*2020mm QKZC-3000 80-105 ≥25-30 0.7-1.4 9-17 0-90r/min 4600*2030*2020mm

Model	ACCESSORIES	REMARKS
QKZC-1000diesel		The S1125 power
QKZC-1000Adiesel	Ø38 Steel wire rubber hose 2 pcs or Ø38*8 rubber hose 4pcs , 90A hammers 1 pc,Ø90 bits 2pcs,Ø60*2m rods 10pcs	Yuchai 2115 two cylinder
QKZC-1000D elecric		15KW-4 Motor
QKZC-2000 diesel	Ø 38 Steel wire rubber hose 2pcs,   90B hammers 1pc, Ø90 bits 2pcs, Ø60*2m rods 10 pcs	Yuchai 4108 four cylinder ,cycloid rotary motor
QKZC-2000A diesel	Ø38 Steel wire rubber hose 2 pcs, 40A hammers  1 pc ,Ø76*3m rods  6 pcs,Ø76*2m rods  1 pc , High Static Pressure Ø110 bit 1 pc	Yuchai 4108 four cylinder and the strengthen  Travel Motor ,cycloid rotary motor
QKZC-2000D  electric		30kw strengthen Travel Motor
QKZC-3000		Yuchai 4108 four cylinder
QKZC-3000A diesel	Ø 38 Steel wire rubber hose 2 pcs, 40A high wind pressure hammers  1pc,Ø76*3m rods  6pcs,Ø76*2m rods 1 pc, High Static Pressure Ø115 bit 1 pc	Yuchai 4108 four cylinder and the strengthen Travel Motor ,rotary motor
QKZC-3000D electric		40kw electric motor
