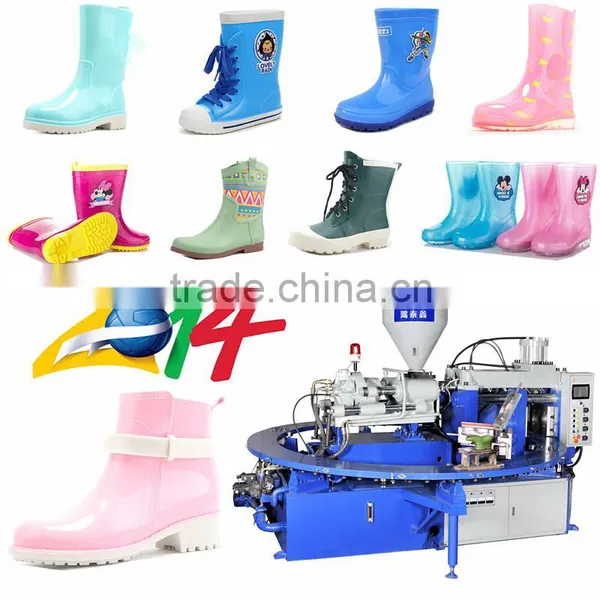

HM-588 Rotary Martin Boots and Children Rain Boots Injection Molding Machine

Specifications

This machine is used in rain boot making industry.
It special produce all kinds of short height rain boot for lady and children

Rotary Martin Boots and Rain Boots Injection Molding Machine

Features

1. This machine is used in rain boot making industry.It is special for produce

all kinds of short height rain boot for lady and children in plastic PVC TPR TPU.

2.Taiwan Made PLC program control,Servo system made in Japan.

Operation system can be showed in Chinese,English,Russian,Spanish,Arabia.

3.Machine working is automatic,only need one worker in the production.

4.Machine have automatic alarm system,touch screen will show you the problem.

and you can find the solution in our operation manual easily.

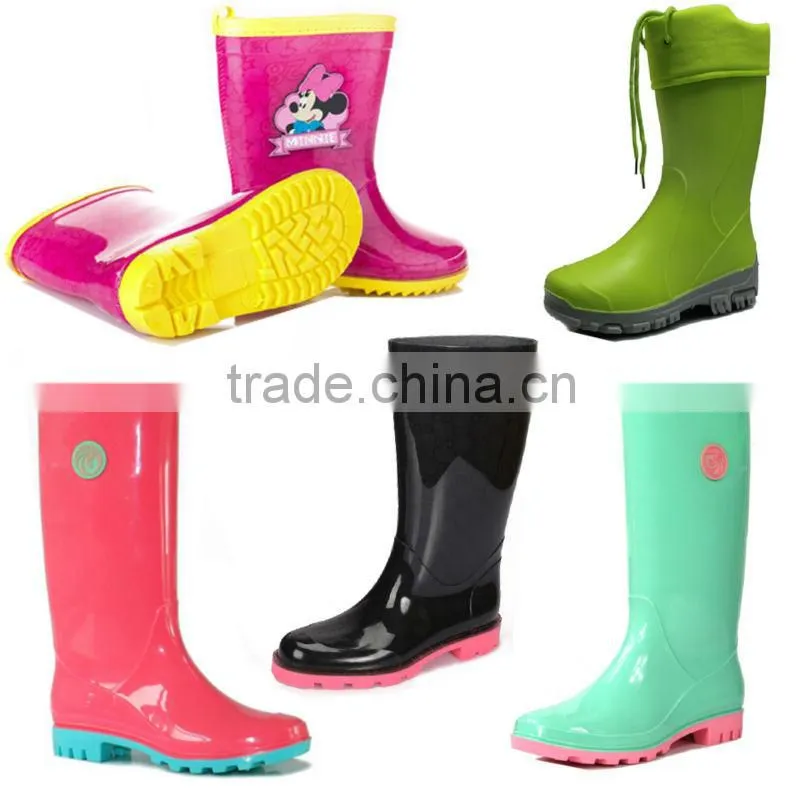

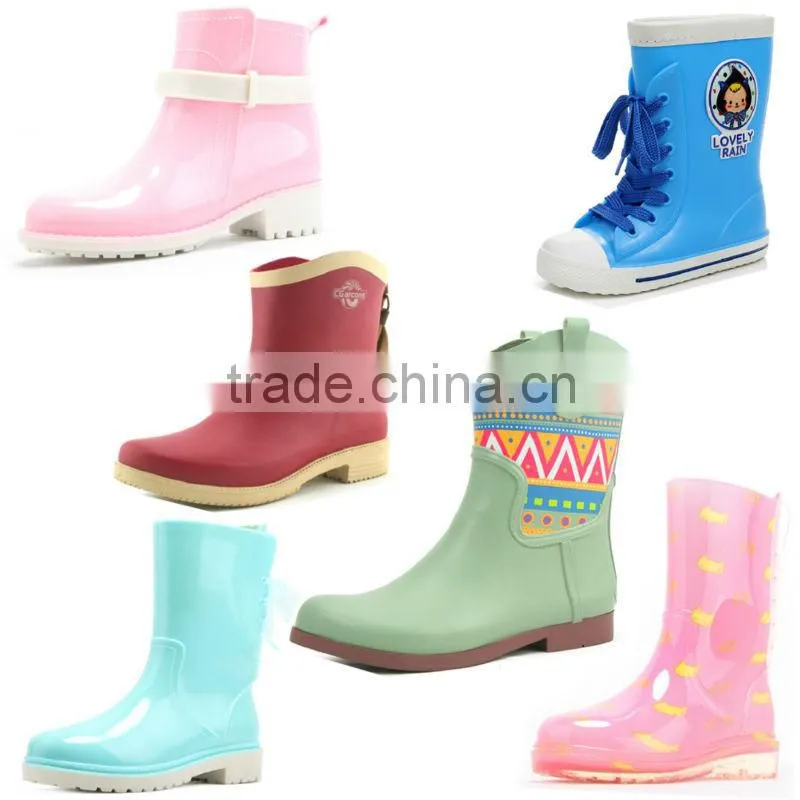

Sample produced by our machine

SPECIFICATIONS

Machine model		HM-588
Mould-clamping Unit
Work station		20
Clamping force	TON	120-150
Opening stroke	MM	210
Mould dimension	MM	600*280
Height of injection nozzle	MM	280
Injection Unit
Injector	SET	1
Screw diameter	MM	60
Screw L/D ratio	L/D	20
Max.injection volume	CC	600
Injection pressure	Kg/cm²	500
Injection speed	Cm/s	10
Screw rotation speed	R.P.M	0-200
Electricity Consumption
Heating power of injector	KW	7
Hydraulic unit motor	KW	18.5
Total electric consumption	KW	25.5
Temperature control	Section	4
Dimension and Weight
Machine dimension	(L*W*H)MM	4600*3700*2500
Machine weight	KGS	6500

1.We will install the machine for you in your factory.

We will teach you how to produce the products with machine,mold and material.

including the machine operation,mold design suggesions and raw material formula.

We supply 24 hours mobile and skype video call service and solve the problem on time.

We supply the longest guarantee period in this industry,1 year and 3 month.

We also can share our successful experience in market promotion.

Export standard package.We also can pack it according to customer's requirements.

and one set single color machine can load in a 20feet container.

one set double color machine can load in a 40feet container.
