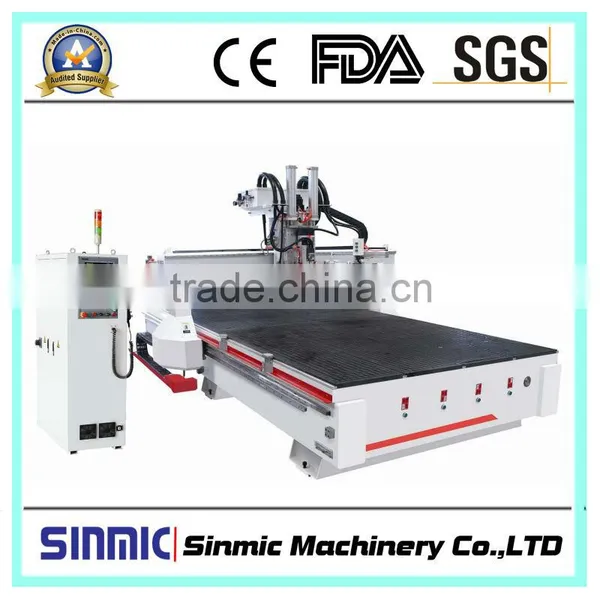

wood cnc router ATC1325

Specifications

wood cnc router
ing area:1300*2500*220mm
2.9kw HSD air cooling spindle
3.DELTA inverter
4.Vacuum worktable

wood cnc router

china supplier woodworking cnc router ATC1325

1.Application:



1. Wooden door, furniture and decoration;

2. Wooden crafts making;

3. Electronic:electrocircuit, insulation materials, LED screen, family appliance shell and model carving;

4. Musical instrument;

5. EVA processing: carving and hollowing of VA material packing tools, medical apparatus, electronic products, carving and hollowing-out of glassware lining,etc.



2.Advantages:

♦ Big steel tube welded structure, reliable and durable, stable and long-life.

♦ Top-quality components, HSD ATC spindle, Delta inverter, TBI ball screw,

Yaskawa servo motors, Syntec control system and so on.Long-time working time, high precision and high efficiency.

♦ Carrousel Tool Magazine system with 8 forks and 4 tool holders , which is loaded with the spindle , make the machine change tools quickly and save time.

♦ Many optional configuration and OEM service available. According to your

requirement, different configurations will be offered.

3.Parameters:



1	X,Y,Z Working Area:	1300*2500*300mm
2	Table Size:	1330*3640mm
3	X,Y,Z Traveling Positioning Accuracy:	±0.03/300mm
4	X,Y,Z Repositioning Accuracy:	±0.03 mm
5	Table Surface:	Vacuum and T-slot combined table(option: T-slot table)
6	Frame:	Heavy Steel Welded Structure
7	X,Y Structure:	Rack and Pinion Drive, Hiwin Rail
8	Z Structure	Ball Screw, Hiwin Rail
9	Max. Power Consumption:	4.5kw(without spindle)
10	Max. Rapid Travel Rate:	45,000mm/min
11	Max. Working Speed:	30,000mm/min
12	Spindle Power	9.0kw
13	Spindle Speed:	0-24000 RPM
14	Drive Motors:	Yaskawa Servo(option:Siemens Servo Motor)
15	Working Voltage:	AC380V, 50/60Hz, 3PH (Option:220V)
16	Command Language:	G Code
17	Operating System:	Syntec Control System(option: Siemens Controller)
18	Computer Interface:	USB
19	Flash Memory:	256M (U Disk)
20	X,Y Resolution:	< 0.01mm
21	Software Compatibility:	Type3, Ucancam V9(Option: Artcam software)
22	Running Environment Temperature:	0°-45°
23	Relative Humidity:	30%-75%
24	Packing Size:	3750x2250x2100mm(in parts

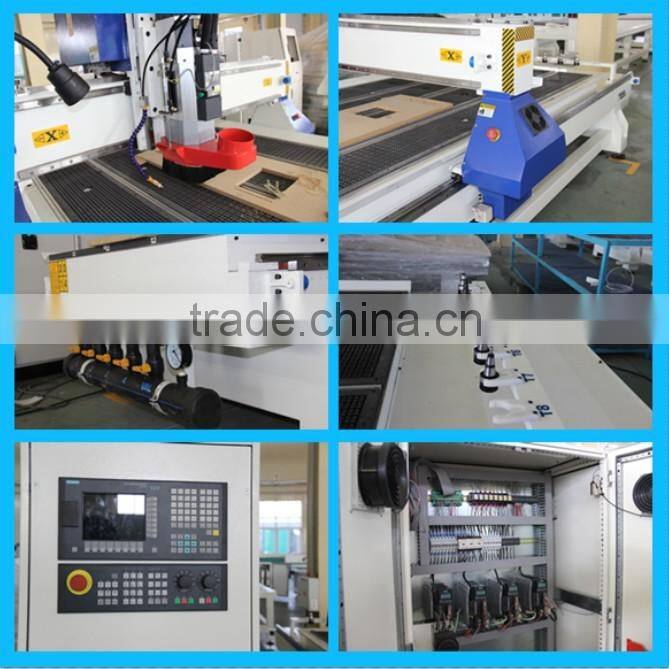

4.Machine details:

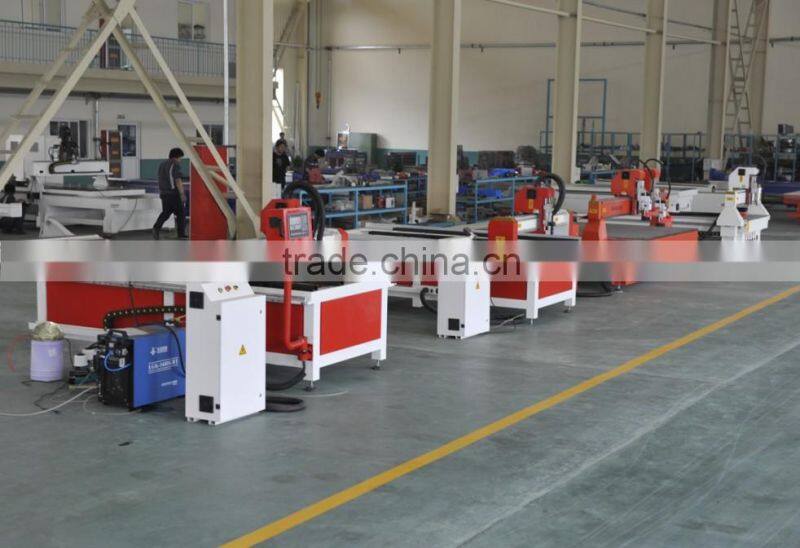

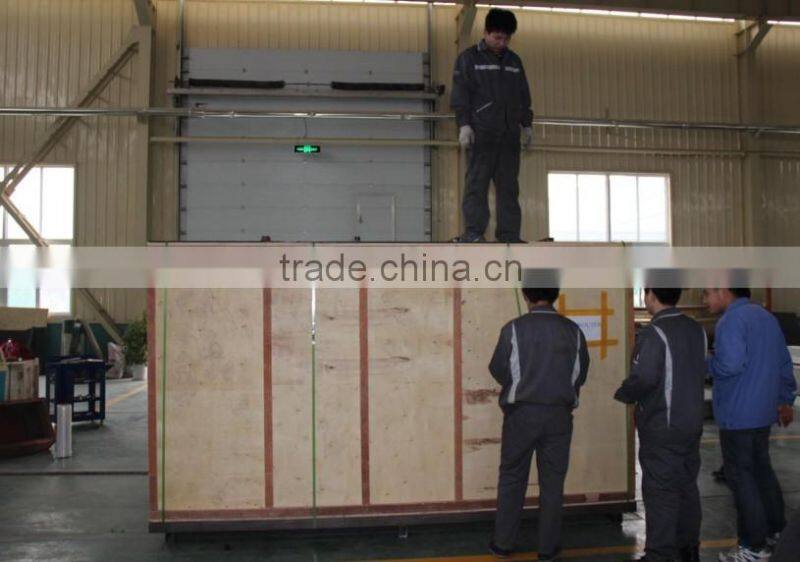

5.Factory& delivery:



6.Samples:





7.FAQ:

1, How to pay to you ?



T/T inadvance or by ESCROW . We can accept 30% deposit , and balance paid to us before delivery machine to you .

2, How long is the delivery time?



For standard machines, it would be 15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 30 days.



3, Do You Arrange Shipment For The Machines?

Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.



4,How about the documents after shipment?

After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

8.After sale service:



1.Technical support by phone, e-mail or MSN around the clock.

2.Friendly English version manual and operation video CD disk.

3.The machine's warranty is 12 months since the date of comission.



For more info, please kindly contact us.
