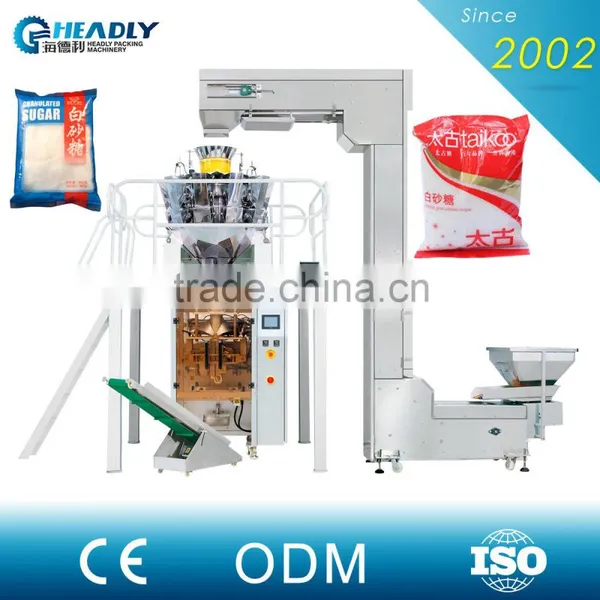

Automatic Punching Device Snack Salt / Candy Packing Machine
- 20 Set / Sets per Month
- Guangdong shenzhen
- T/T L/C D/P D/A Credit Card PayPal
-
Automatic Weighing Vertical Food Nut Dried Fruit Packaging Machines
-
Headly high-speed popcorn grain vertical packaging machinery
-
High Corrosion Resistance Automatic Rotary Ice Candy Packing Machine
-
Foshan Headly Fully automatic 1kg 2kg 3kg 5kg rice packaging machine
-
Headly food automatic dry goods packaging machine with factory price
-
automatic preformed pouch packing machine
Product Details
| Condition: | New | Function: | Filling, Sealing, Wrapping | Application: | Beverage, Chemical, Food, Other, Medical, Beverage, Chemical, Food, Machinery & Hardware, Medical |
| Packaging Type: | Bags, Film, Pouch, Stand-up Pouch | Packaging Material: | Plastic, Other, Plastic, Opp/Cpp.Opp/Ce.Mst/Pe/Pet/Pe | Automatic Grade: | Semi-Automatic |
| Driven Type: | Electric | Voltage: | 220V | Power: | 3 KW |
| Place of Origin: | Guangdong, China | Brand Name: | Headly | Model Number: | HDL-520D |
| Dimension(L*W*H): | 1488*1080*1490mm | Certification: | CE.ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
| Model No | 420D | 520D | 680D | 900D | 1050D |
| Product Application | Granule | Granule | Granule | Granule | Granule |
| Range Of Application | High Accuracy And Easy Fragile Material:Chips,Candy,Pet Food,Chocolate,Apple Slices,Dumpling,Medicine | ||||
| Volume Range | Max.1000Ml | Max.2000Ml | 150-4000 Ml | 1-25 L | 1.5-45L |
| Packing Size (Mm) | Length:30-800 Width:80-200 | Length:80-350 Width:100-250 | Length:100-450 Width:100-300 | Length:100-600 Width:260-430 | Length:100-800 Width:290-505 |
| Machine Motion | Intermittent | ||||
| Machine Control Through | Plc | ||||
| Machine Speed | 10-65 Bag/Min | 5-60 Bag/Min | 10-40 Bag/Min | 5-20 Bag/Min | 5-20 Bag/Min |
| Film Width | Max.420 | Max.520 | Max.680 | Max.900 | Max.1050 |
| Packing Film | Any Heat Sealable Laminated Roll | ||||
| Power | 220V50Hz.3Kw | 220V50Hz.3Kw | 220V50/60Hz.3.6Kw | 220V50/60Hz.4.5Kw | 220V50/60Hz.5Kw |
| Machine Size (Mm) | L:1217 W:1015 H:1343 | L:1488 W:1080 H:1490 | L:1716 W:1260 H:18200 | L:2305 W:1685 H:2725 | L:2900 W:2050 H:3300 |
| Machine Weight | 650 Kg | 750 Kg | 900 Kg | 1200 Kg | 1500 Kg |
| Feeding System | Weigh Filler | ||||
| Packing Film Pulling | Through Electromagnetic Clutch And Brake | ||||
| Contact Parts | Food Grade Stainless Ss 304 | ||||
| Sealing Type | Center Sealing; Pillow Type | ||||
| Main Motor | Main Motor For Panasonic | ||||
| Temperature Controller | Pid Based | ||||
| Machine Features | Individual Temperature Control, High Speed Counter, Voltage Vector Control | ||||
| Language | English+Arabic+Any | ||||
| Additional | Toolbox+Operation Instruction | ||||
| Optional Features | Punching Cutting Device, Pneumatic Coding Device, Nitrogen Flushing Device | ||||
Kindly Reminder:
Please let us know the follow packing details when you offer, so that we can check if this model is suitable for your case. Thank you in advance.
- Product details
- Bag width, bag length (similar picture)
- Bag shape
- Packing film material
- Machine frame
| Optional Parts: |
| Measuring Cup Device |
| Combination Weigher |
| Screw Metering Machine |
| Plunger Pump Or Gear Pump Metering System |
| Hdl Series Main Machine |
| Z Type Bucket Elevator |
| Vibration Feeder |
| Supporting Platform |
| Product Conveyor |
| Screw Infeed Conveyor |
| Material Elevator |
| Nitrogen-Making Machine |
| Check Weigher |
| Metal Detector |
| Nitrogen-Making Machine |
| And So On |
| 1.Efficient: to finish the production, sealing, packaging and date printing in one time. |
| 2.Intelligent: automatic stop function, unsticky and not wasting the films. |
| 3.Convenient: labor-saving, low loss, easy to operate and maintain. |
Large Vertical Automatic Packaging Machine- Multiple Choices
| Auger filler | Volumetric cup | Weighter |
| SPARE PARTS | ||
| Spare parts | Brand |
| Temperature-controlled meter | Temperature-controlled meter from China for SHANGHAI YATAI |
| Horizontal cylinder | Horizontal cylinder from Taiwan for AIRTAC |
| Cutting thin cylinder | Cutting thin cylinder from Taiwan for AIRTAC |
| Push membrane cylinders | Push membrane cylinders from Taiwan for AIRTAC |
| FR&L | FR&L from Taiwan for AIRTAC |
| Reducing valve and pressure gage | Reducing valve and pressure gage from Taiwan For AIRTAC |
| Solenoid valve and valve plate | Solenoid valve and valve plate from Taiwan for MINDMAN |
| Filling solenoid | Filling solenoid from Taiwan for MINDMAN |
| Intermediate relay | Intermediate relay from Japan for IZUMI |
| Switching power supply | Switching power supply from Taiwan for FOTEK |
