iron pipe cutting machine advertising cnc plasma cutting machines Manufacturer

Specifications

advertising cnc plasma cutting machines
1.Start control system
2.Gas Panel

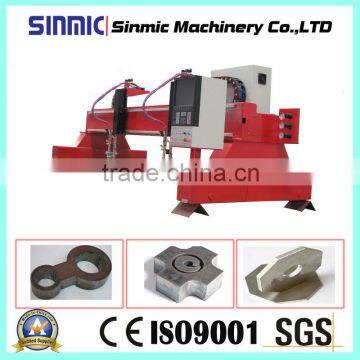

SINMIC advertising cnc plasma cutting machines





CNC Plasma & Flame Cutting Machine,CNC Flame Cutting Machine, CNC Plasma Cutting Machine, CNC Precise Cutting Machine,CNC Gantry Type Cutting Machine



Introduction of the Products:



    The digitally controlled cutting machine can be divided into four types: the digitally controlled flame cutting machine, the digitally controlled plasma cutting machine, the digital flame/plasma cutting machine and the digitally controlled flame, plasma and straight cutting machine. The flame cutting is a traditional for cutting the carbon steel sheets in the hot way. The thickness of the steel sheets can be from 0.5mm to 400mm. The plasma cutting machine is used to cut the carbon steel, the stainless steel and the non-ferrous metal sheets, featuring in high speed and good cutting quality, which is an ideal choice for high quality cutting.



   The beam is made of profiled steel of good intension; each part is precisely processed to ensure the correct position. The processing of the double-edged drive mode makes sure of a barycenter and a good balance. And all the welded parts have a destress processing to avoid deformation.
   The horizontal transmission adopts the gear assembly equipped with the precise slowdown device. It features in strong wrench torque, low noise and long life.
   The hypertherm dynamics Micro EDGE control system is used to maintain the stability and reliability in the industry grade console and multiply optical and electronic insulation device. It makes it more convenient and direct for the communication between people andthe system.



Parameters:



Cutting type	flame
Flame Cutting thickness	120mm
Torch lifter trip (mm)	1-200(mm)
Cutting speed (mm / min)	50-3500(mm/min)
The side line straightness of the main rails:	0.5mm/1000mm
The side line straightness of the deputy rails:	1mm/2000mm
Under the main rail and rail tracks vertical and horizontal surface of the parallel:	± 0.5mm/1000mm
Nodal migration	0.5mm
Straightness	0.5mm
Roundness	0.5mm
Error of Diagonal	0.5mm
Repeat positioning accuracy	0.5mm
Positioning accuracy, precision repeat accuracy of the whole equipment:	meet the standard JB/T5102-1999



Machine details:





Samples:













For more information, please contact me. We are looking for agent all over the world.
