Home > Products > Skid steer loader > skid steer loader and attachments Bobcat like,Diesel engine 100hp,Gemany Rexroth pump,CE paper
skid steer loader and attachments Bobcat like,Diesel engine 100hp,Gemany Rexroth pump,CE paper
Negotiable
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- Qingdao China
You May Like
-
attachments for loader,excavator,rotary concrete saw,tree shear,drum clamp
-
attachments for loader,excavator,rotary concrete saw,tree shear
-
attachments for loader,excavator,rotary concrete saw
-
attachments for loader,excavator,rotary concrete saw
-
attachments for loader,excavator,bucket,fork,ice breaker,hammer,blade etc.
-
ice removal attachments for skid steer loader,wheel loader,excavator,forklift etc.
Product Details
| Condition: | New | Model Number: | TS100 | Place of Origin: | Shandong, China |
| Type: | Skid Steer Loader | Moving Type: | Crawler Loader | Dimension(Long * Breadth * High): | 3580*2030*2160mm |
| Rated Load: | 1500kgs | Certification: | CE,ISO,EPA | Warranty: | 2 years |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Bobcat like TS100 crawer skid steer loader3580*2030*2160mm
Imported hydraulic components
Enclosed Operator Cabin
100hp,CE
1.PRODUCT INFO.

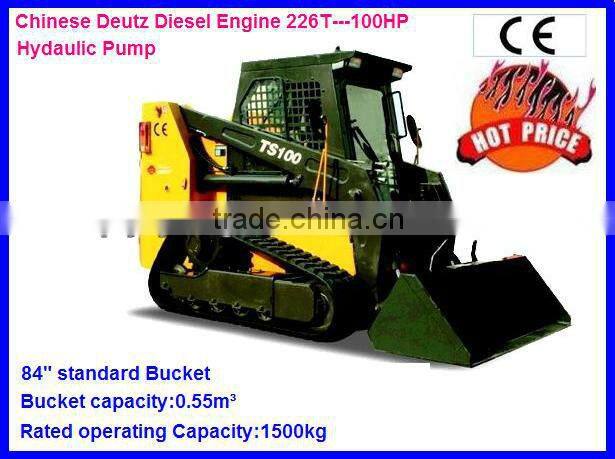

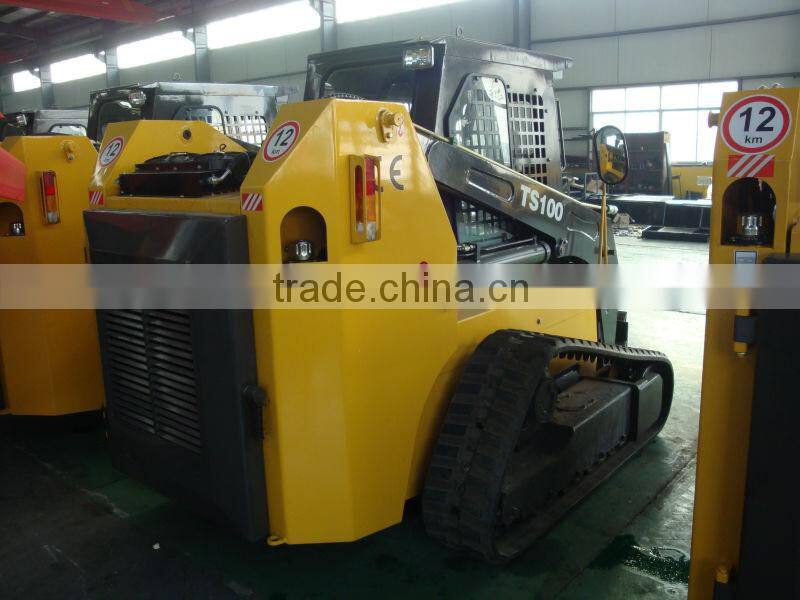

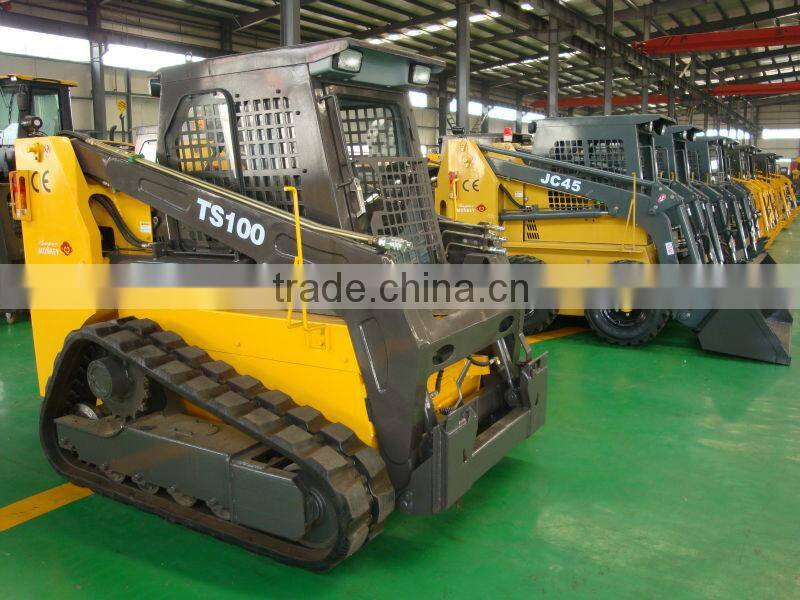

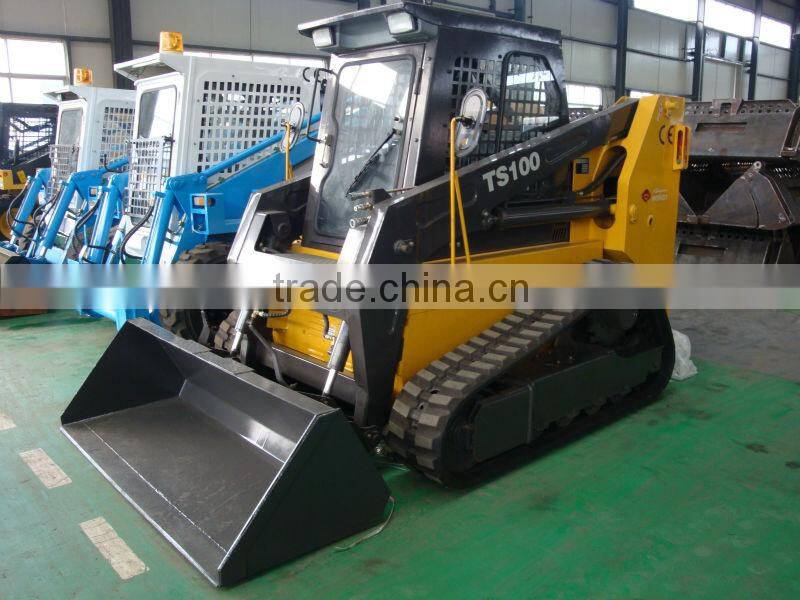

TS100 rubber tracked crawler skid steer loader,Bobcat like.cabin,A/C.
Rated operating Capacity:1500kg;
Bucket capacity:0.55m³
1. Heated&Air conditioned Luxury Enclosed Operator Cabin
2. Hydraulic Joystickl Control System
3. Gemany Rexroth Hydaulic Pump
4. Chinese Deutz Diesel Engine 226T---100HP
5 Hydraulic self-leveling system
6. Hydraulic brake
7 Rubber tracked
8 2-speed system and high-flow auxiliary system
9. 84" standard Bucket
10. Flat-type quick coupler same as Bobcat
11. for TS100 model,steel track is not available due to the stuction of it,per test,the rubber tracks is better for TS100 than steel tracks.because the inner of rubber tracks is also with steel,just outside is rubber,then it will cause less harm to grounds when it works.
Feature:
1)Good technical parameters with competitive price
2)maneuver in tight spaces, turn within its own length
3)a broad product line, innovative designs, and unsurpassed range of job-matched attachments.
4)Excellent reach & lift height for truck loading (vertical path).
5)more than 20 series attachments for option: pallet fork, swing blade, utilityfork grapple, asphalt cutter, backhoe, hydraulic hammer, 4 in 1 bucket, auger,cultivator, and tooth bucket etc.
6)attachment can be used with bobcat type skid loader
7)world famous hydraulic system from America,Japan and Italy
8)famous brand engine with EPA or EC stage II or III from abroad and domestic
9) CE and ISO 9001 certificated
10)versatility, maneuverability and reliability.
2)maneuver in tight spaces, turn within its own length
3)a broad product line, innovative designs, and unsurpassed range of job-matched attachments.
4)Excellent reach & lift height for truck loading (vertical path).
5)more than 20 series attachments for option: pallet fork, swing blade, utilityfork grapple, asphalt cutter, backhoe, hydraulic hammer, 4 in 1 bucket, auger,cultivator, and tooth bucket etc.
6)attachment can be used with bobcat type skid loader
7)world famous hydraulic system from America,Japan and Italy
8)famous brand engine with EPA or EC stage II or III from abroad and domestic
9) CE and ISO 9001 certificated
10)versatility, maneuverability and reliability.

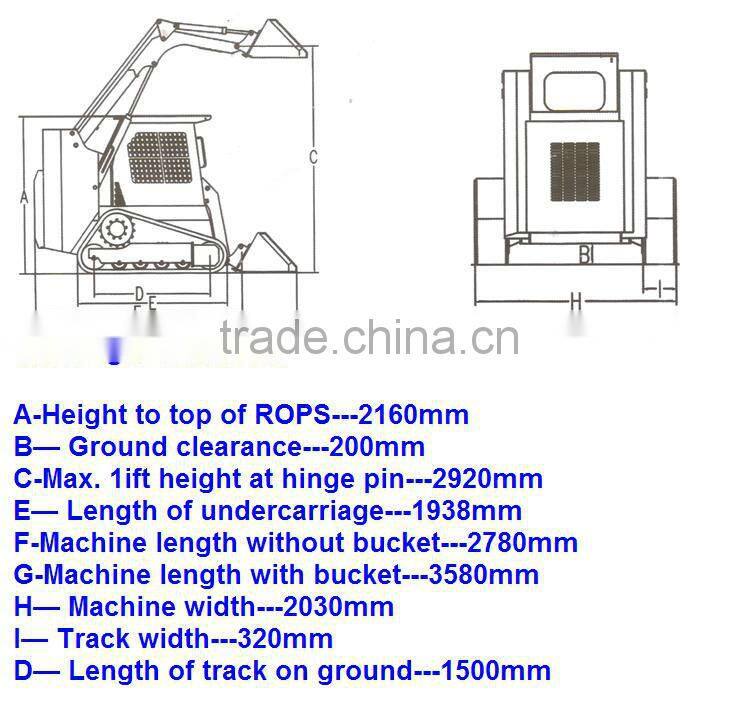

2.SPECIFICATION
ENGINE TYPE--DIESEL
ENGINE POWER--100HP
RATED OPERATIONG CAPACITY--1500KG
WEIGHT--4280KG
LIFT HEIGHT (HINGE PIN)--3150mm
DUMPING HEIGHT-- 4070mm
DIMENSION L*w*H--3580*2030*2160mm
2-SPEED SYSTEM
AIR CONDITIONER
HIGH-FLOW AUXILIARY SYSTEM
Options:
OPTIONS FOR PERKINS ENGINE
AIR CONDITIONER
2 SPEED SYSTEM
For 2 speed system, it only means the travlling speed of skid steer loader can be 2 kinds, one is normal, the other is high. The system is a intergrated part of driving motor,which makes the motors different from the normal one. The function is to increase the travelling speed of the machine. For exemple, the normal maximum speed is only 12km/h, it will be too slow if the machine should move a long distance from one working site to another.If we choose the hydraulic motors with 2 speed system, then it can be switched to the high speed mode, thus the machine can run as the speed of maximum of 18km/h.
So it is different option for the motors that distinguishes them from normal or 2 speed system.
So it is different option for the motors that distinguishes them from normal or 2 speed system.
3.PICTURES
4.WE ALSO SUPPLY VARIOUS ATTACHMENTS:
Hydraulic Breaker

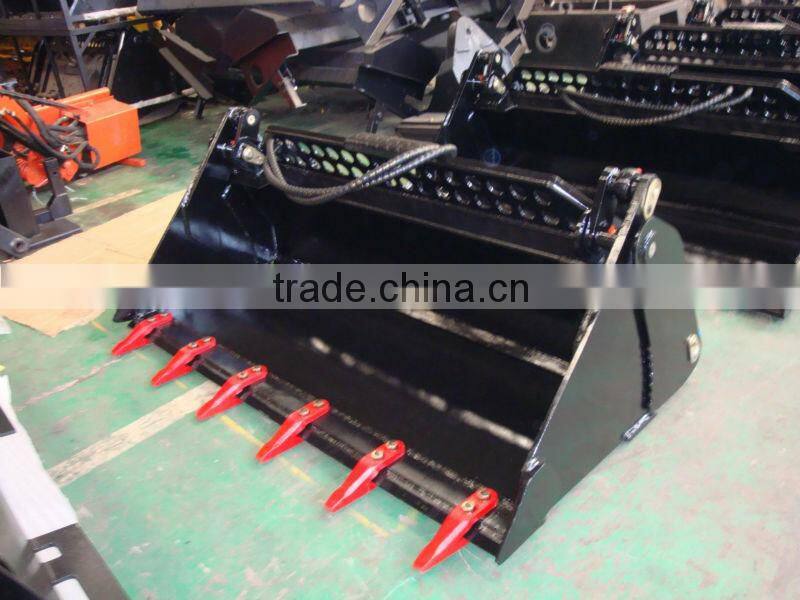

4in1 bucket with teeth
4in1 bucket without teeth

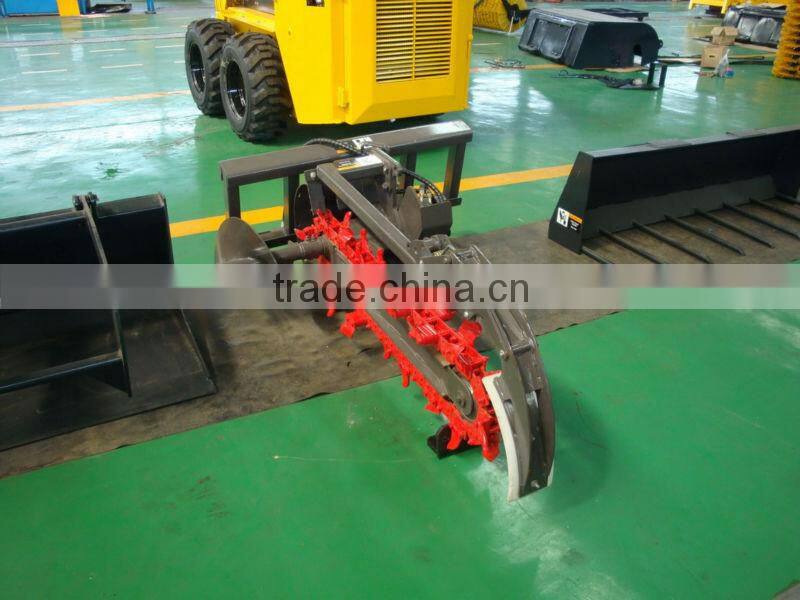

Trencher:model NO.is 900/200(Digging Width 200mm, Digging Depth 900mm)
another one is 120/300( Digging Width 200mm, Digging Depth 900mm)
Grapple bucket,single cylinder
Auger drive+406mm auger

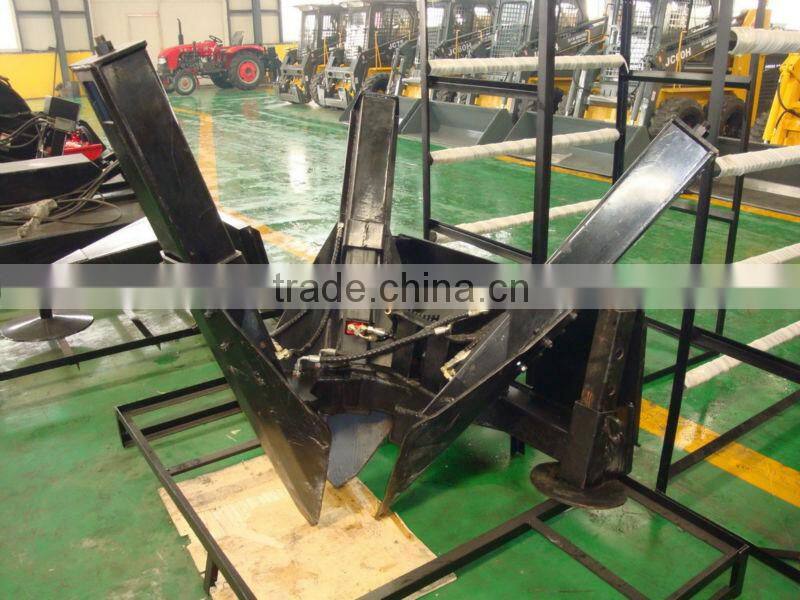

4blades tree spade
Vibratory roller,66"
Bale spear 050748

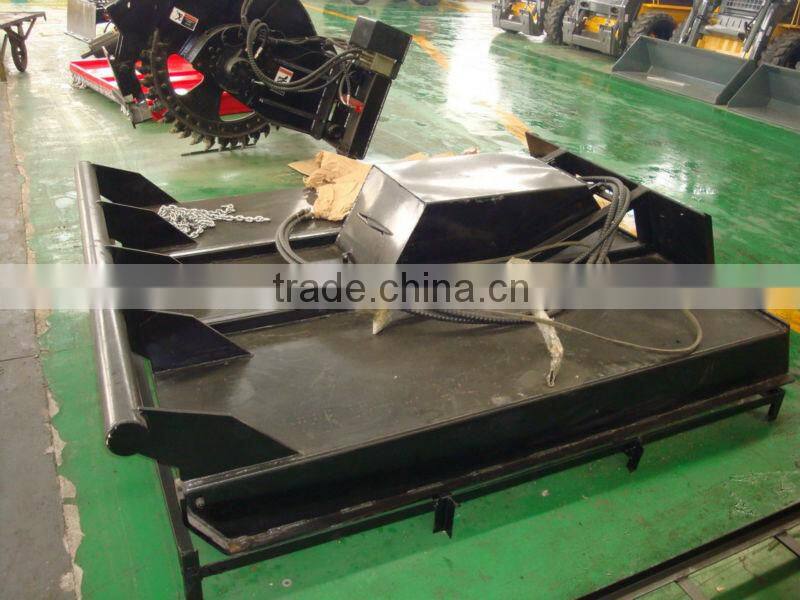

Grass mower,72"

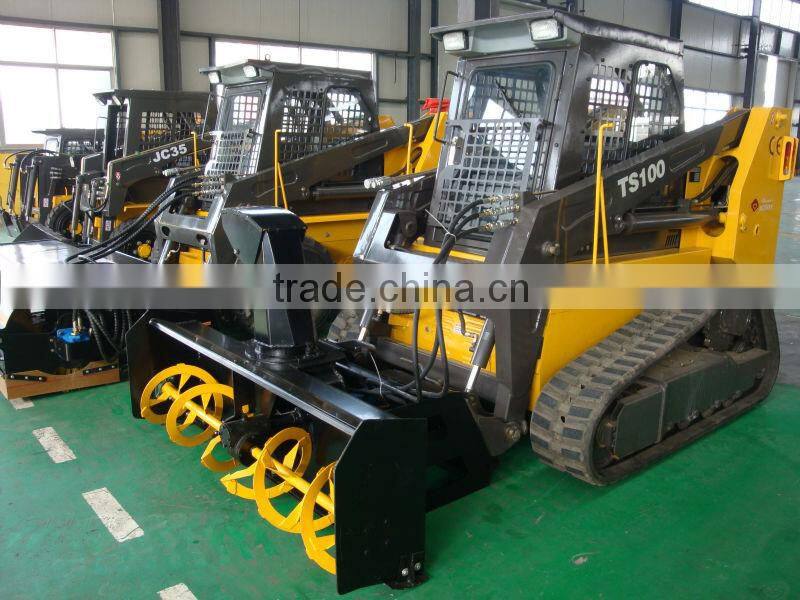

Snow blower 72"
Angle broom,72"
Rotary backhoe

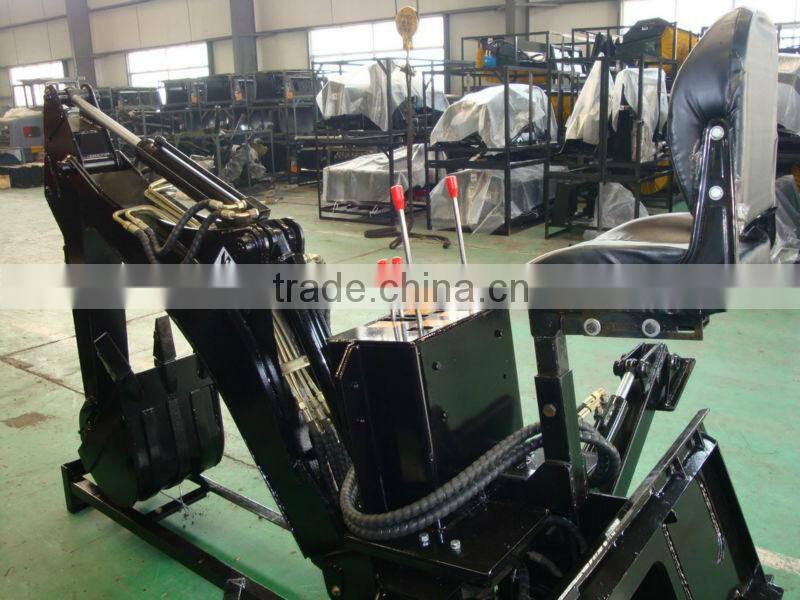

Simple backhoe
Grapple fork,66"
Rock bucket,72"
Snow blade,66"

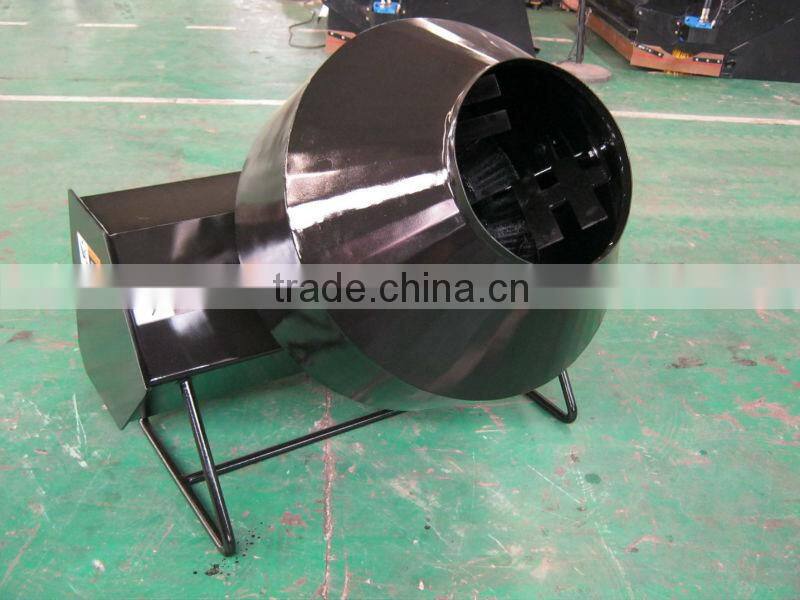

Concrete mixer
Chain trencher
Simple digger
Pallet fork C15
Sweeper,72"
Rotary tiller
Dozer blade
Bale clamp
Ice breaker
Tree shear
Breaker
Planer
4.LOADING
1X20'GP hold 2sets.
1x40'HQ hlod 4sets.
Warranty term:2000 working hours or 12 months after delivery
There is a free package of sapre parts for every model.

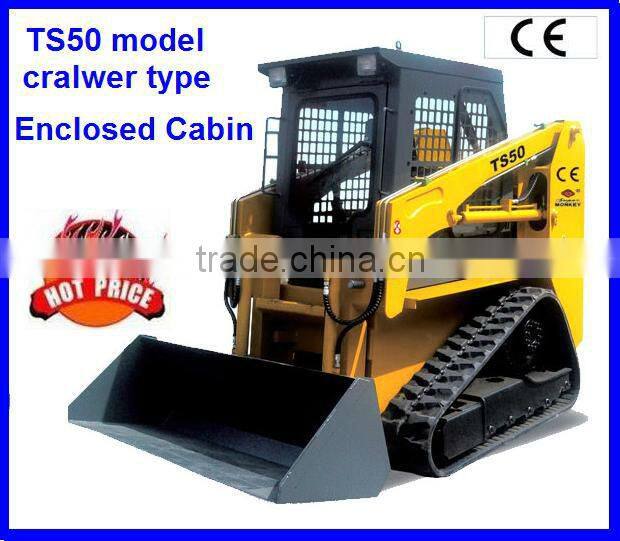

we have similar models:
please contact us for more info.....
