High speed compounding mixer
Usage:
SHR Serial high speed mixer is mainly used to mix,stir,dry and color for plastic material,rubber,pharmacy,dye,food and commodity industries.
Technical parameter :
Type | Total Capacity | Effective Capacity | Motor Power | Heating Power | Speed | Heating Method | Material Discharging | Dimension |
SHR-5A | 5L | 3L | 1.1KW | - | 1440rpm | Self-friction | By hand | 620×300×730 |
SHR-10A | 10L | 7L | 3KW | - | 1440rpm | 1200×300×830 | ||
SHR-25A | 25L | 17L | 5.5KW | - | 1440rpm | 1200×350×850 | ||
SHR-50A | 50L | 35L | 7/11KW | 3KW | 750/1500rpm | Electricity heating | Pneumatic | 2100×700×1100 |
SHR-100A | 100L | 75L | 14/22KW | 6KW | 650/1300rpm | 2100×800×1500 | ||
SHR-200A | 200L | 150L | 30-42KW | 6KW | 475/950rpm | 2400×850×1580 | ||
SHR-300A | 300L | 225L | 40-50KW | 6KW | 475/950rpm | 2800×1080×1680 | ||
SHR-400A | 400L | 300L | 47-67KW | 9KW | 430/860rpm |
| ||
SHR-500A | 500L | 375L | 55/75KW | 9KW | 430/860rpm |
| ||
SHR-800A | 800L | 600L | 83/110KW | 12KW | 370/740rpm |
| ||
SHR-1000A | 1000L | 750L | 110/160KW | 15KW | 325/650rpm |

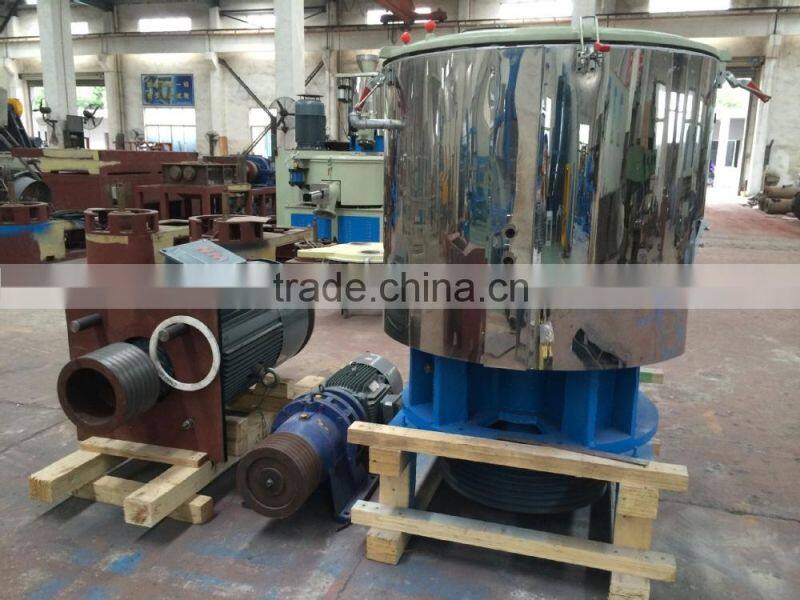

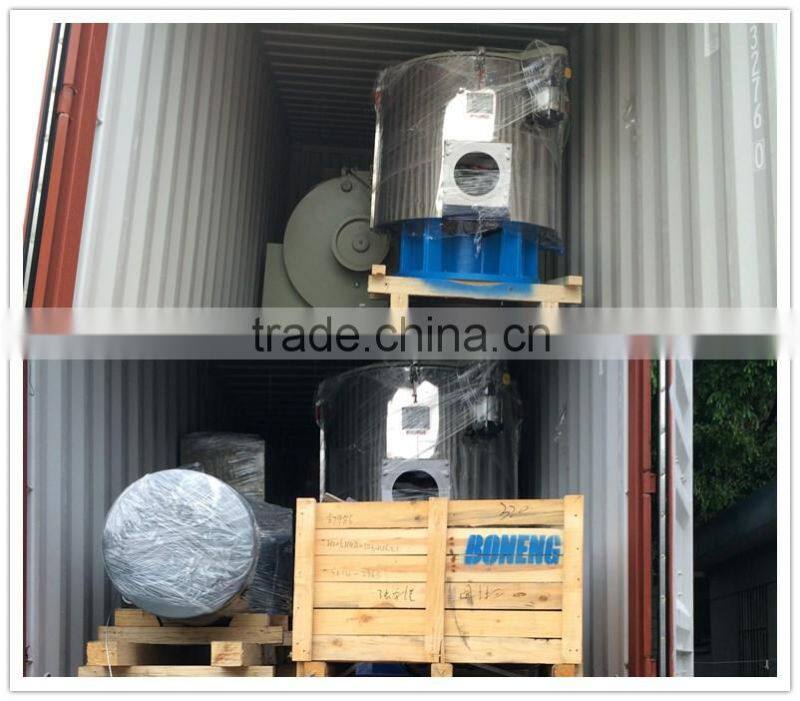

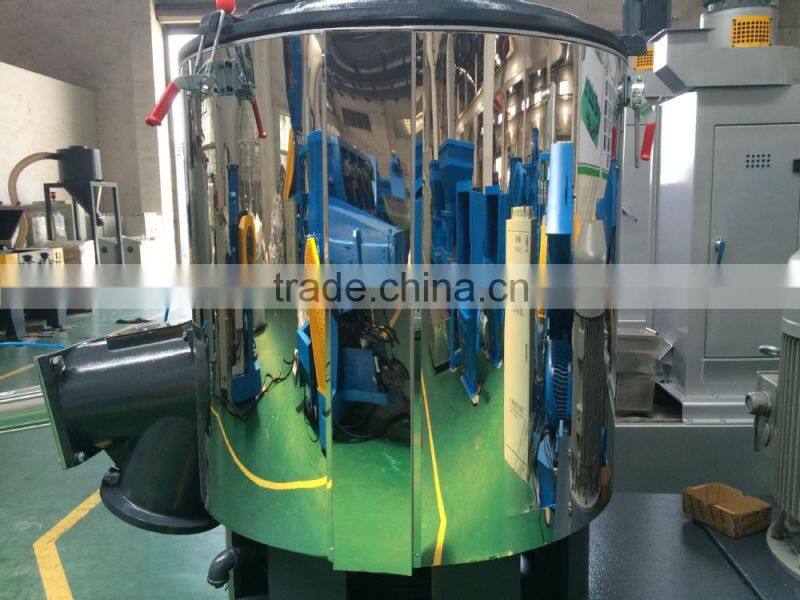

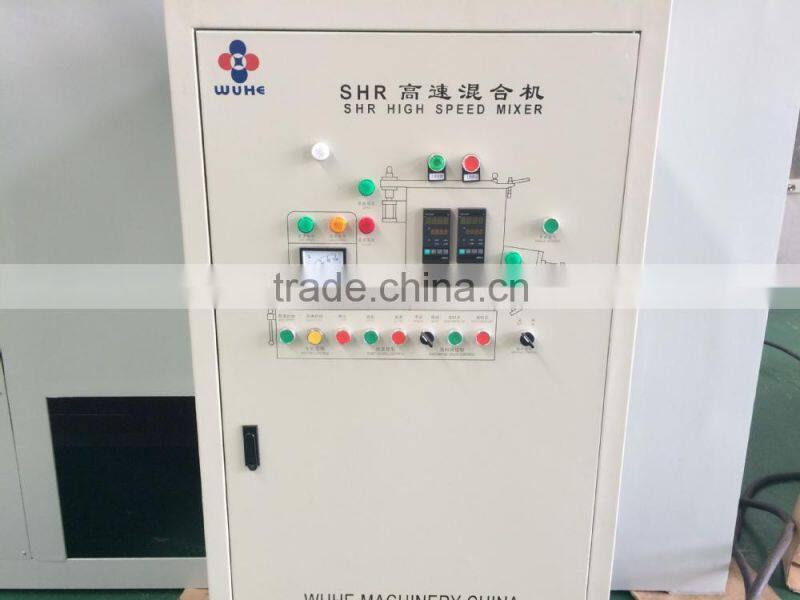

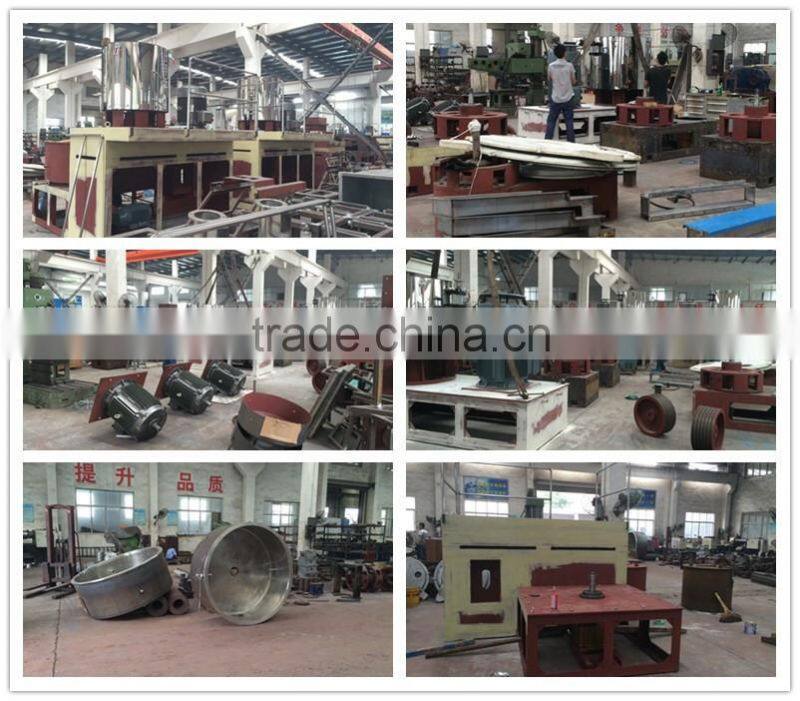

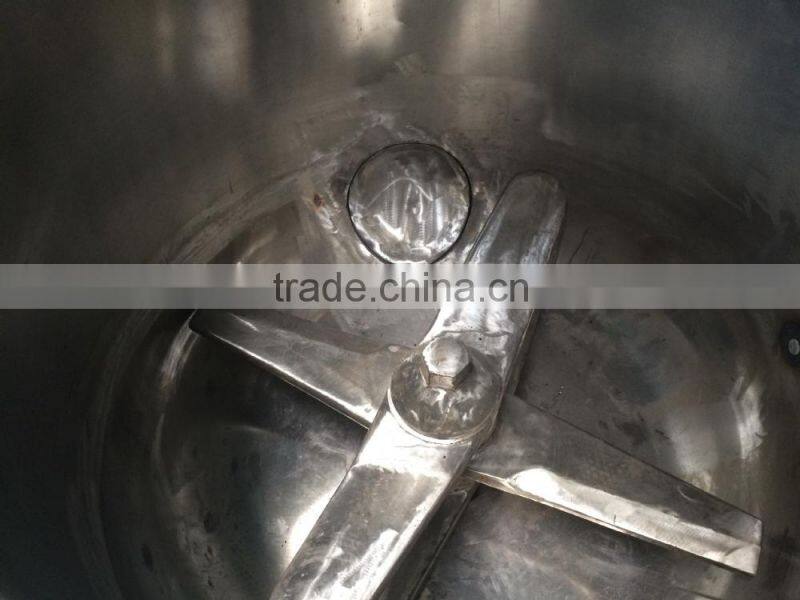

Machine Pictures:
