PVC pipe plant project cost
Application:
PVC water pipe is widely used in building water supply and drainage system, irrigation, electric conduit, air exhaust pipe and so on.

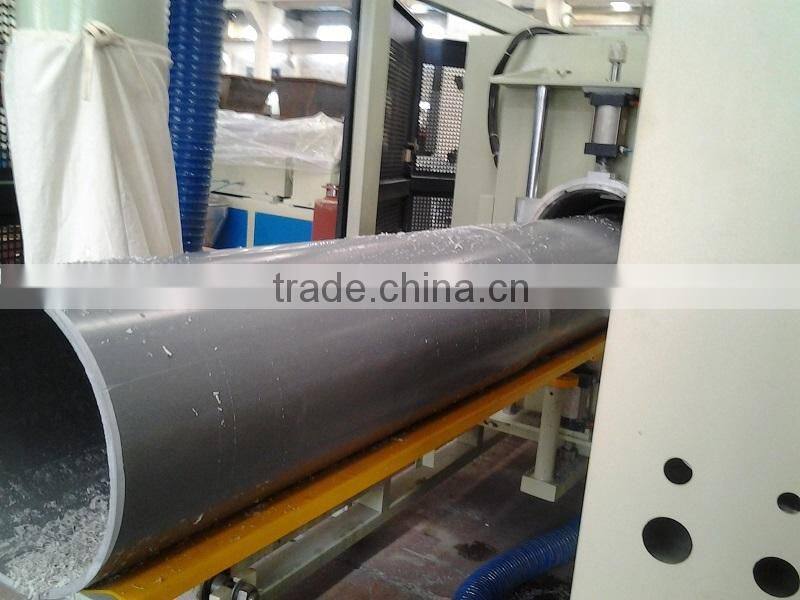

PVC pipe plant produces PVC pipe which diameter is from 16mm~630mm. It can produce pipe in different thickness by changing the type of machine and mould.

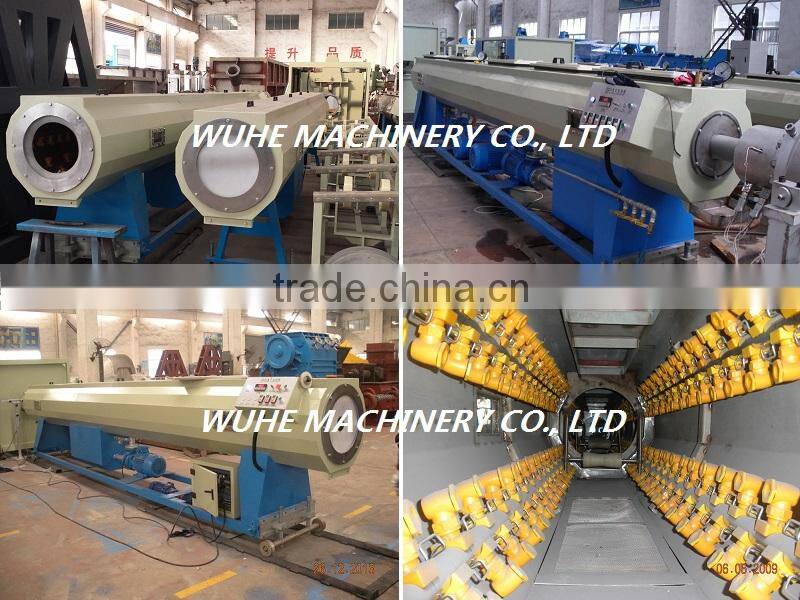

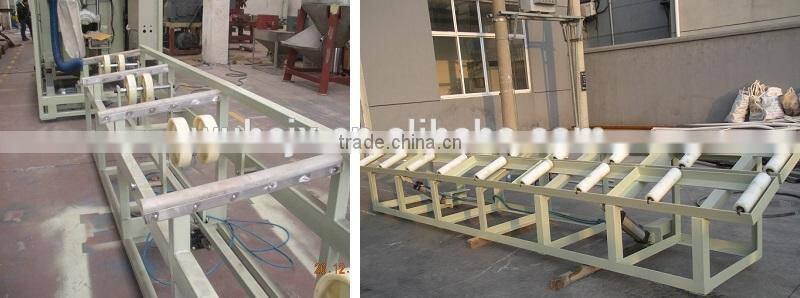

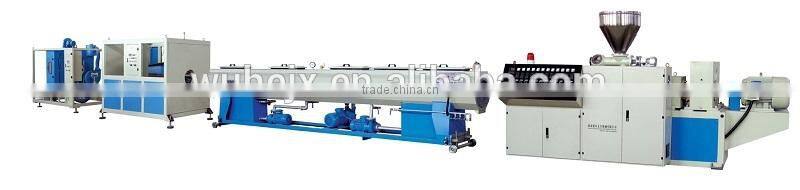

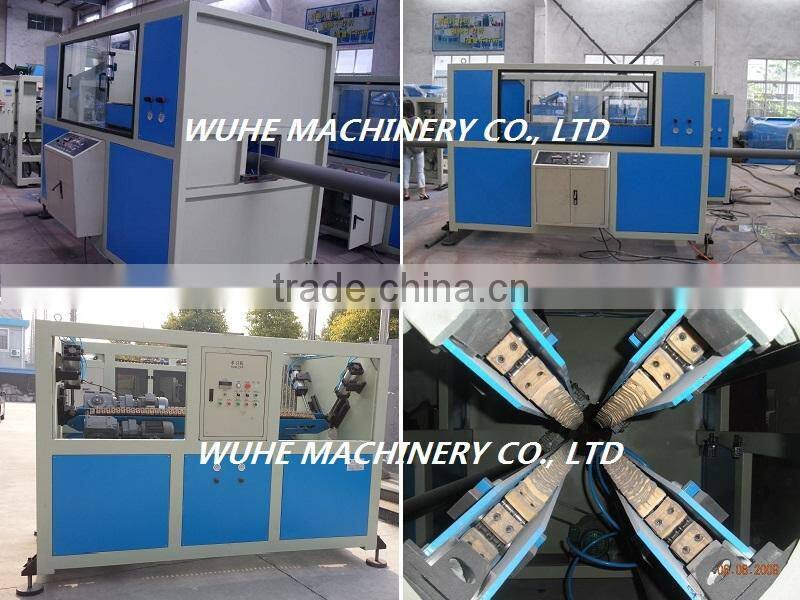

The production line is composed by Conical twin screw extruder, Pipe mould, Vacuum calibrator, Cooling tank, Printer, Haul-off machine, Cutter, Stacker, Belling machine and so on.
Features:

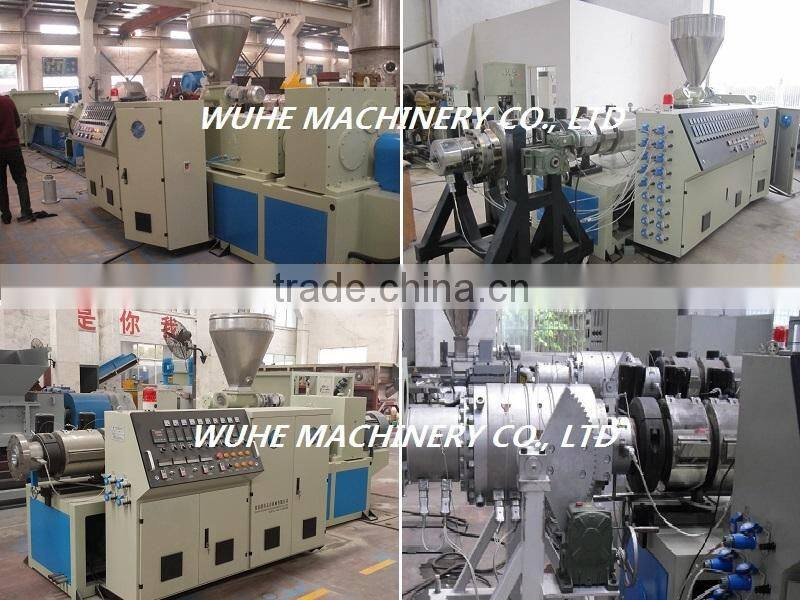

1. It adopts conical twin screw extruder for high extrusion pressure and good effect of plasticizing.
2. Reliable temperature control system ensures the high quality pipes.
3. Adopt PLC control for easy operation.
4. Low consumption, high output, stable running.

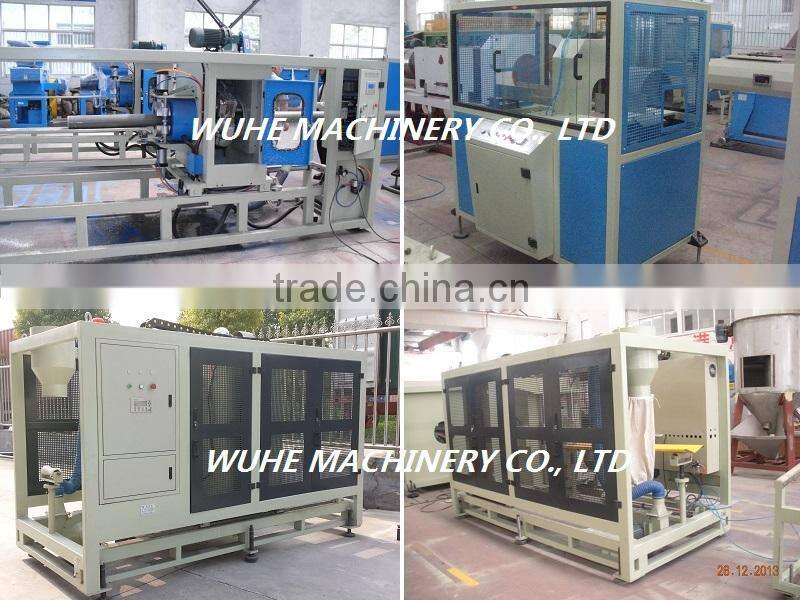

5. Auxiliary equipments also can be chosen: Pipe crusher, PVC milling machine, Mixer, Pulverizer etc.
Paramete of PVC pipe plant
| Specification | GF63 | GF110 | GF160 | GF250 | GF400 | GF630 | GF800 |
| Item | Diameter 16-63 | Diameter 16-110 | Diameter 32-160 | Diameter 63-250 | Diameter 160-400 | Diameter 315-630 | Diameter 450-800 |
| Diameter of pipe(mn) | 16-63 | 16-110 | 32-160 | -250 | 160-400 | 315-630 | 450-800 |

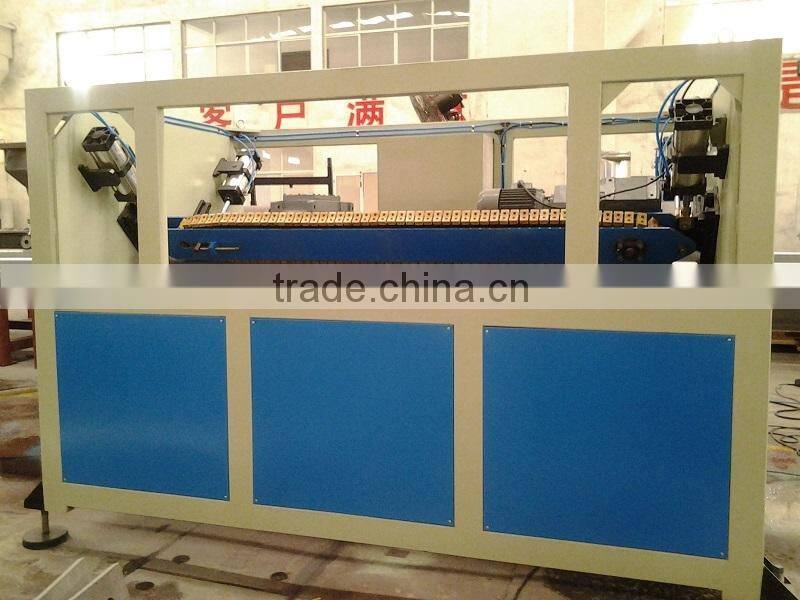

| Claw number of haul off | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
| Hauling force(KN) | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
| Haul off speed(m/min) | 10 | 8 | 6 | 5 | 4 | 2 | 2 |
| Total power of down stream(KW) | 14 | 14 | 14 | 21.5 | 41 | 56 | 64 |
Parameter of Extruder
| Model | SJZ-45 | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80 | SJZ-92 |
| Screw diameterz(mm) | 45/90 | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
| Screw speed(rpm) | 45.5 | 30 | 30 | 34.7 | 36.9 | 32.9 |
| Screw length(mm) | 989 | 1100 | 1200 | 1440 | 1800 | 2500 |
| Motor power(KW) | 15 | 18.5 | 22 | 37 | 55 | 110 |
| Heating power(KW) | 12 | 16 | 18 | 24 | 36 | 86 |
| Capacity(kg/h) | 40-60 | 60-100 | 80-140 | 160-300 | 220-450 | 400-600 |
| Weight(kg) | 2800 | 3200 | 3500 | 4000 | 5000 | 10000 |

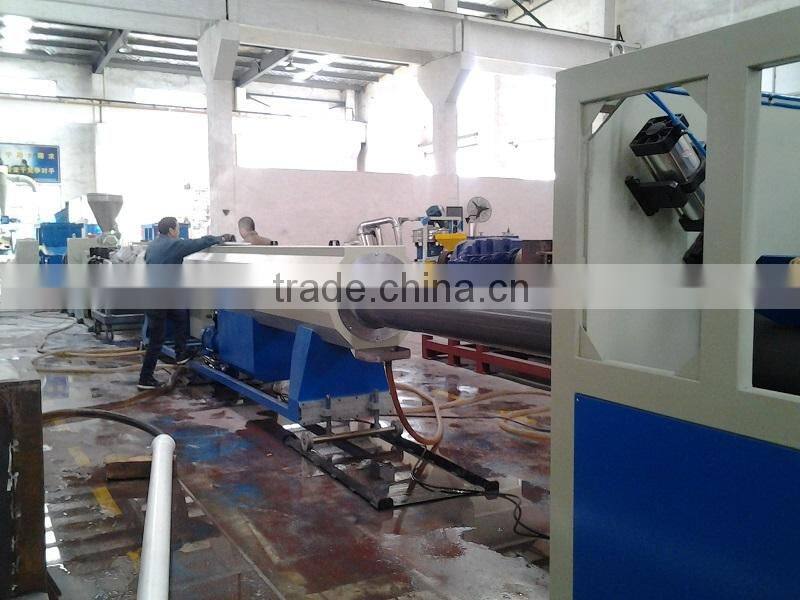

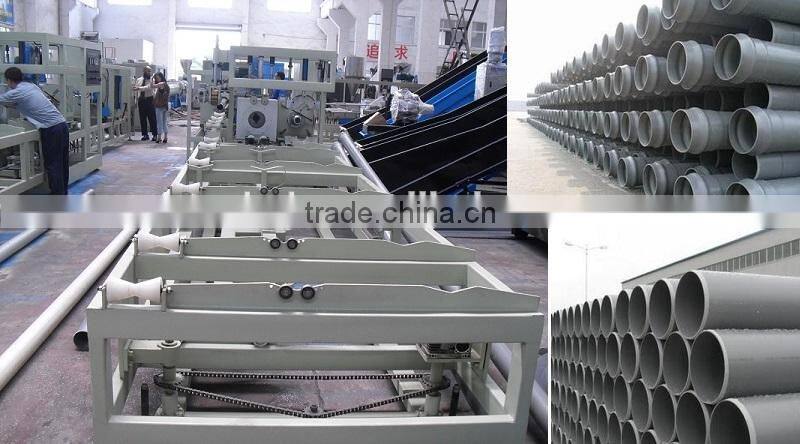

Extrusion line for diameter from 50-160mm
Extrusion line for diameter from 160-400mm
Certificate
For different range of PVC pipe, the production line is different.
For more details, Welcome to contact us.
