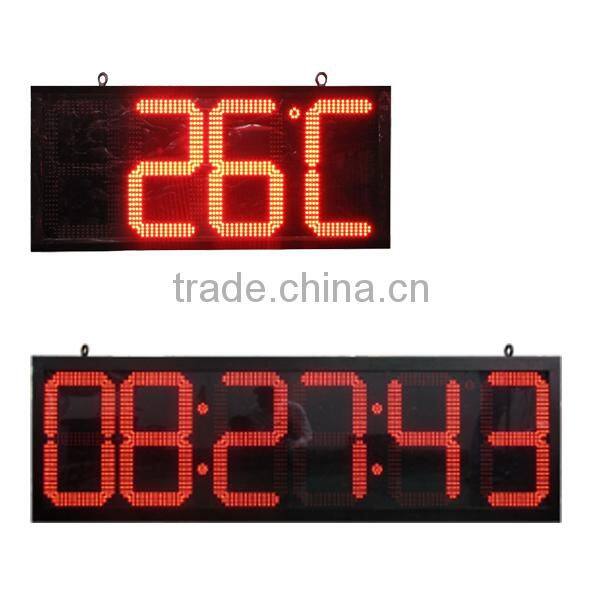

Specifications
1.Displays in 12 and 24 hour format2.Temp and humi display,Countdown/up

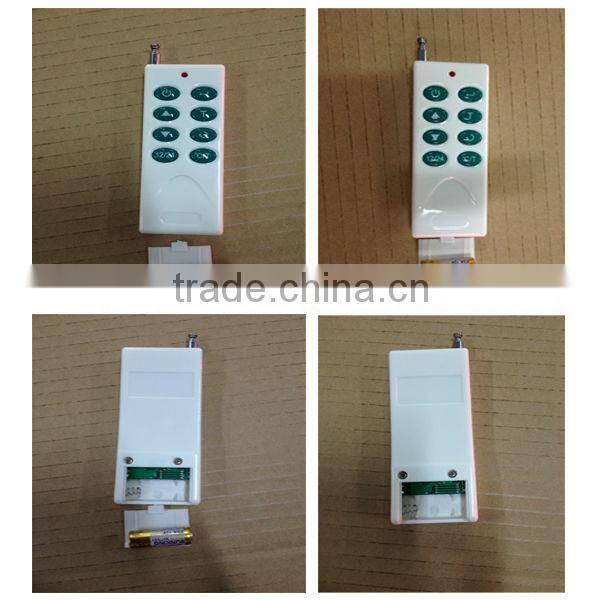

3.IR and RF Remoter,GPS control
4.2 years warrant
- Available in 4 ,5, 6 digits format
- Available size from 5 inch to 24 inch in height
- User can specify Time displays in 12 /or 24 hour format
- User can specify the temperature displays in Fahrenheit and/or Centigrade
- Four signs can be connected together and synchronized.
- The user may specify the hold time for showing time and temperature from 1-30 seconds for each display screen.
- Super-bright, daylight visible LEDs provide over 100,000 hours of continuous operation, significantly outlasting
- The display is energy-efficient and easy to operate, install and service.

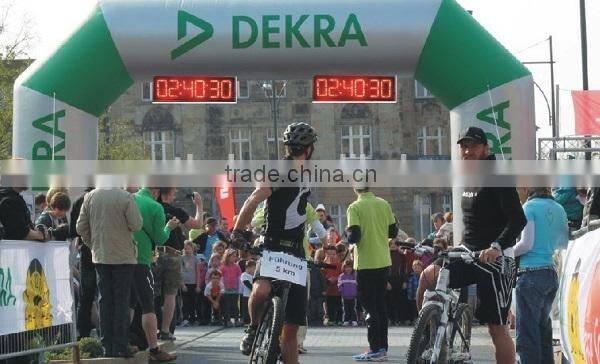

- The common timer(for count up and count down) is available or be customized.
- GPS time and temperature is available.




Special Features: Automatic dimming (1,024 levels)
- Non-volatile Memory stores last price displayed
- Operating Temperature: -40° to 122° F / -40° to 50° C
- UV Resistant Protective PC material Face

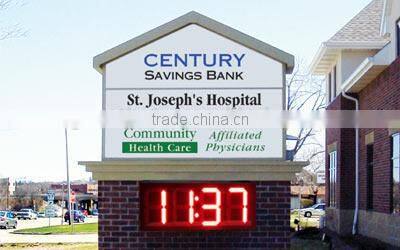

- LED Time and Temperature displays will make you business a featured location. Super bright LEDs will get noticed and present a professional image
- With the RF wireless feature, your time and temperature can be changed at a moments notice. Automatically switches between time and temperature
| Model Number | Number format | Max Size Character | Housing Dimension (WxH) | Power |
| UGC-S5inch88:88:88 | 88:88:88 | 127mm | W630mm H160mm | R/Y:24W B/G/W:24W |
| UGCT-S5inch88:8°C/°F | 88:8°C/°F | W440mm H160mm | R/Y:16W B/G/W:16W | |
| UGC-S6inch88:88:88 | 88:88:88 | 152.4mm | W700mm H200mm | R/Y:24W B/G/W:27W |
| UGCT-S6inch88:8°C/°F | 88:8°C/°F | W480mm H200mm | R/Y:16W B/G/W:18W | |
| UGC-S8inch88:88:88 | 88:88:88 | 203.2mm | W886mm H264mm | R/Y:30W B/G/W:33W |
| UGCT-S8inch88:8°C/°F | 88:8°C/°F | W602mm H264mm | R/Y:20W B/G/W:22W | |
| UGC-S10nch88:88:88 | 88:88:88 | 254mm | W1114mm H317mm | R/Y:36W B/G/W:42W |
| UGCT-S10inch88:8°C/°F | 88:8°C/°F | W754mm H317mm | R/Y:24W B/G/W:28W | |
| UGC-S12nch88:88:88 | 88:88:88 | 304.8mm | W1374mm H390mm | R/Y:63W B/G/W:66W |
| UGCT-S12inch88:8°C/°F | 88:8°C/°F | W934mm H390mm | R/Y:42W B/G/W:44W | |
| UGC-S16nch88:88:88 | 88:88:88 | 406.4mm | W1641mm H497mm | R/Y:96W B/G/W:78W |
| UGCT-S16inch88:8°C/°F | 88:8°C/°F | W1112mm H497mm | R/Y:64W B/G/W:52W | |
| UGC-S18inch88:88:88 | 88:88:88 | 457.2mm | W1830mm H549mm | R/Y:108W B/G/W:114W |
| UGCT-S16inch88:8°C/°F | 88:8°C/°F | W1238mm H549mm | R/Y:72W B/G/W:76W | |
| UGC-S20inch88:88:88 | 88:88:88 | 508mm | W1966mm H600mm | R/Y:132W B/G/W:102W |
| UGCT-S20inch88:8°C/°F | 88:8°C/°F | W1329mm H600mm | R/Y:88W B/G/W:68W | |
| UGC-S24inch88:88:88 | 88:88:88 | 609.6mm | W2370mm H700mm | R/Y:156W B/G/W:120W |
| UGCT-S24inch88:8°C/°F | 88:8°C/°F | W1604mm H700mm | R/Y:104W B/G/W:80W |

Wireless Communication Distance: RF:100-150m IR:8m
1.) Working Temperature: -20~60 °C
2.) Working Humidity: 10~80%RH
3.) Power Input: 120-240VAC
4.) Brightness: 5000 cd/ m2
5.) Visibility: 50m~330m (Depends on the digital heights)
6.) Viewing Angle : H110°V40°

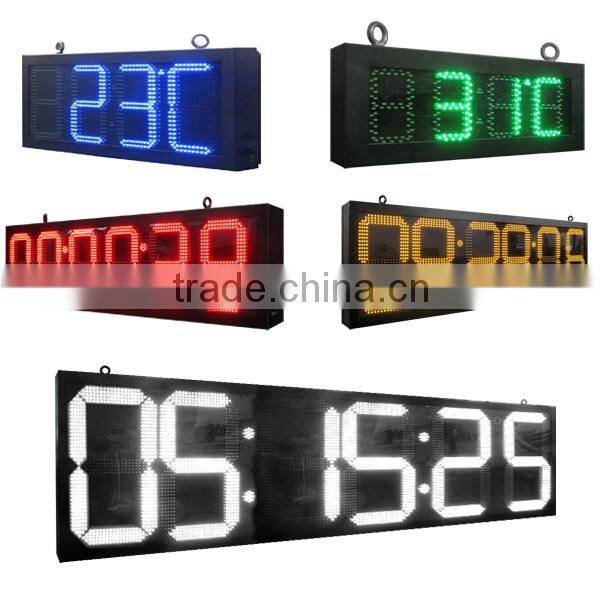

7.) Display Color: Available in red, green,amber,blue, white etc ( Monochrome)

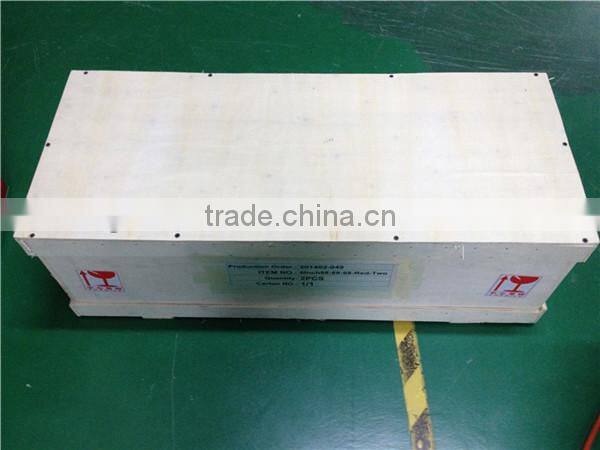

Wooden package
Welcome to contact us !
Warranty
- Two years
Availability
- 2 ~ 3 weeks
....
