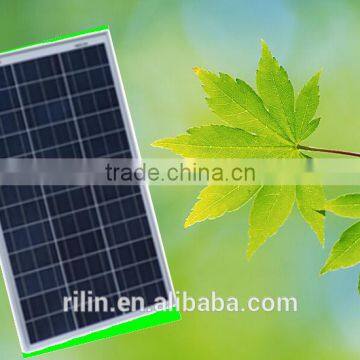

High quality low price elaborate process perfect service Chinese 18V 60W poly solar panel

FOB Price

USD $0.5 - $0.52 / Piece

10 Pieces(Min.Order)

Supply Ability 5000000 Watt / Watts per Month
Port NINGBO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	RING SOLAR
Model Number	RL-P060/18	Material	Polycrystalline Silicon
Size	91651030	Number of Cells	36
Max. Power	60W

Product Description

Product Specification

Place of Origin	Zhejiang China (Mainland)
Material	Poly-crystalline Silicon
Brand Name	RING SOLAR
Cell Size	156*156
Model Number	RL-P060/18
Module Power (w)	60W
Module Dimension (mm)	91651030

Electrical Data

Model Number	RL-P060/18
Rated Maximum Power (w)	60
Maximum Power Voltage (V)	17.5
Maximum Power Current (A)	3.43
Open Circuit Voltage (V)	21.9
Short Circuit Current (A)	3.68
Power Tolerance (%)	±3
Module Efficiency (%)	13

Mechanical Parameter

Module Dimension (mm)	91651030
Packaging (pcs/carton)	10
Carton Volume (m3/carton)	0.172

Limits

Operating temperature	-40°c--- + 85°c
Maximum system voltage	715V DC

Packaging & Delivery

Packaging Detail:

CTN/wooden box

Delivery Detail:

Normally, about 15days after receive the down payment,

meanwhile take the order quantity into consideration.

Temperature Coefficient

Current temperature coefficient	%/°C	0.065±0.015
Voltage temperature coefficient	mV/°C	-(2.23±0.1)
Power temperature coefficient	%/°C	-(0.5±0.05)

Guarantee Data

Guaranteed power output	10 years:90% of its nominal power 25 years: 80% of its nominal power
Standard conditions: AM1.5 Irradiation 1000W/m²;25°c
Warranty	3 years for material warranty
	20 years for performance warranty
