Home > Products > OUTDOOR LED Display > RGX P10 full colorl ed screen for advertising

RGX P10 full colorl ed screen for advertising

FOB Price

USD $700 - $900 / Square Meter

1 Square Meter(Min.Order)

Supply Ability 500 Square Meter / Square Meters per Month
Port Shenzhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangdong, China	Brand Name:	RGX	Model Number:	RGX-P10-O-F- led display
Usage:	Outdoor	Tube Chip Color:	Full Color	Display Function:	Video
Pixels:	10mm	Screen Dimension:	Size by Customize

Product Description

Our advantages:

1. All of our chips are imported from Taiwan Epistar and we use 4% silver to stick chips on PC boards, which insures our high quality.

2. All the screws in our products are made of stainless steel.

3. We implemented strict testing before selling.

4. Our LED displays provide high brightness with low power consumption.

5. We offer professional technical support, excellent after-sale service and prompt delivery methods.

6. Three years warranty also will be offered by us.

Product Description

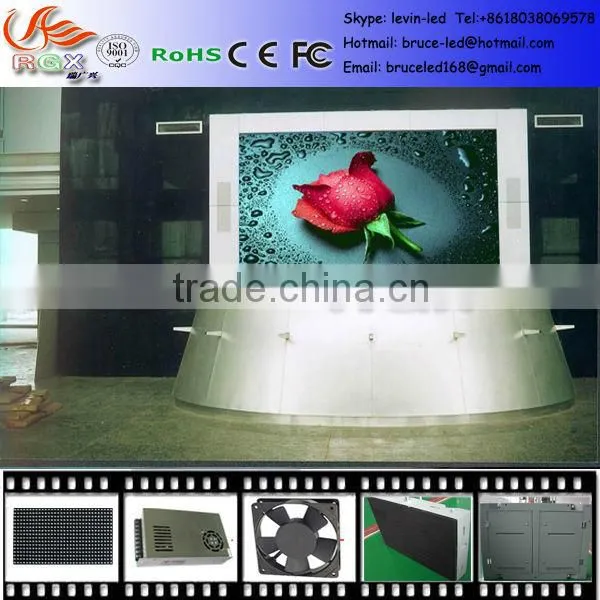

1 RGX LED Pantalla portable led billboard, New outdoor advertising led billboard for sale ,ph10 outdoor full color led display/HD P10 led billboard/P10 led advertising display description:

More Rental led screen display please checking our webside:

http://www.ledrgx.en.china.cn/product/2007148178-800211266/RGX_P4mm_indoor_rental_led_display_screen.html

RGX dip outdoor p10 led display , p10 smd led display outdoor,p10 full color led display screen

Unit Module	Item:	LED Pantalla Parameter
	Model:	P10 Full color led Module
	Pixel Pitch:	10 mm
	Pixel configuration:	1R1G1B
	Module Size:	160mm * 160mm 320mm * 160mm
	Module Resolution:	16dots(W) * 16dots(H) 32dots(W) * 16dots(H)
	Module Thickness:	25 CM
	Module Weight:	0.6 KG or 1.18KG
	LED type:	DIP346
	Max Power:	20W
	Pixel Density:	10000 dots / SQM
	Driving Method:	Constant Current Driving
	Scan Method:	Static
	Interface Way:	HUB 75
	Brightness:	≥ 9500CD /SQM
Unit Cabinet	Cabinet Size:	960mm * 960mm (Customize)
	Cabinet Composing:	36 pcs
	Power Supply Mode:	5V/40A 5V/60A
	Cabinet Resolution:	96dots * 96dots
	Optimal Viewing Distance:	7-50M (according to the big screen size)
	Optimal Viewing Angle:	Horizontal angle: 120 degree; Vertical angle: 60 degree
	Environment Temperature:	Storage: -40 degree `~ +85 degree Work: -20 degree ~ +60 degree
	Relative Humidity:	10% ~ 95%
Power	Operating Voltage:	AC:100V~120V AC:220~240V
	Average Power:	200W/ SQM
	Max Power Consumption:	≤ 700W
	Current:	≤ 20mA (single LED)
Control System	Computer:	Pentium4 or above P4 or above
	Operate System:	Win98/2000/NT/XP
	Control Mode:	Synchronization with PC
Main Technical Parameter	Driving Device:	IC Constant Current Driving
	Refresh Rate:	≥ 600Hz
	Gray/Color:	RGB each 256 grade, can display 16.7color
	MTPF:	≥ 9000hours
	Power Switch:	Automatic Switch
	Display Mode:	80060010247681280*960

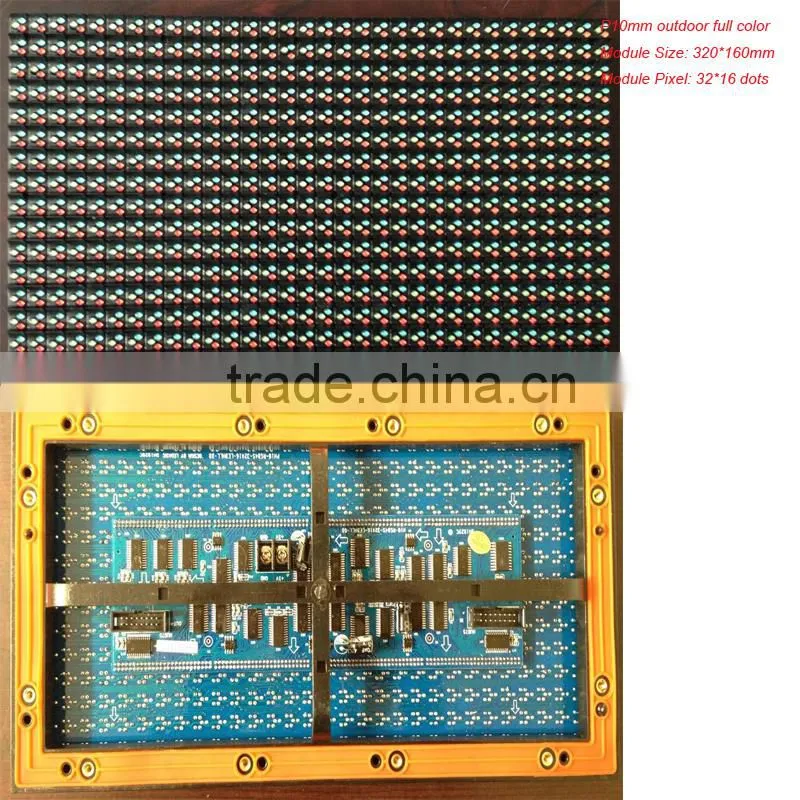

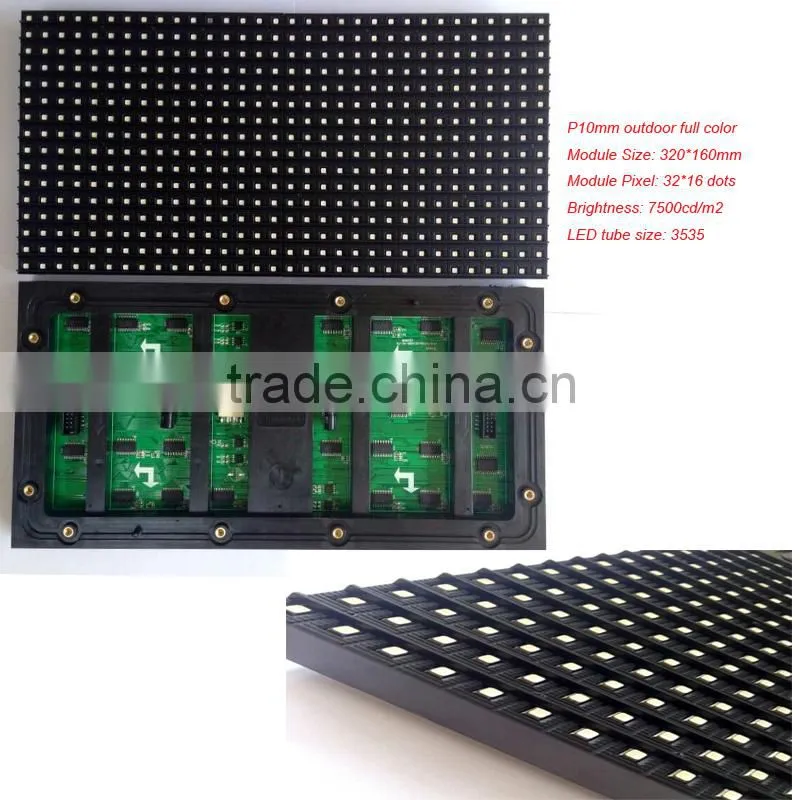

More information of 320*160mm P10mm module please checking our webside:

http://www.ledrgx.en.china.cn/product/2011247302-222107353/RGX_P10_full_color_led_display_module_320x160_mm.html

Show Photo Details:

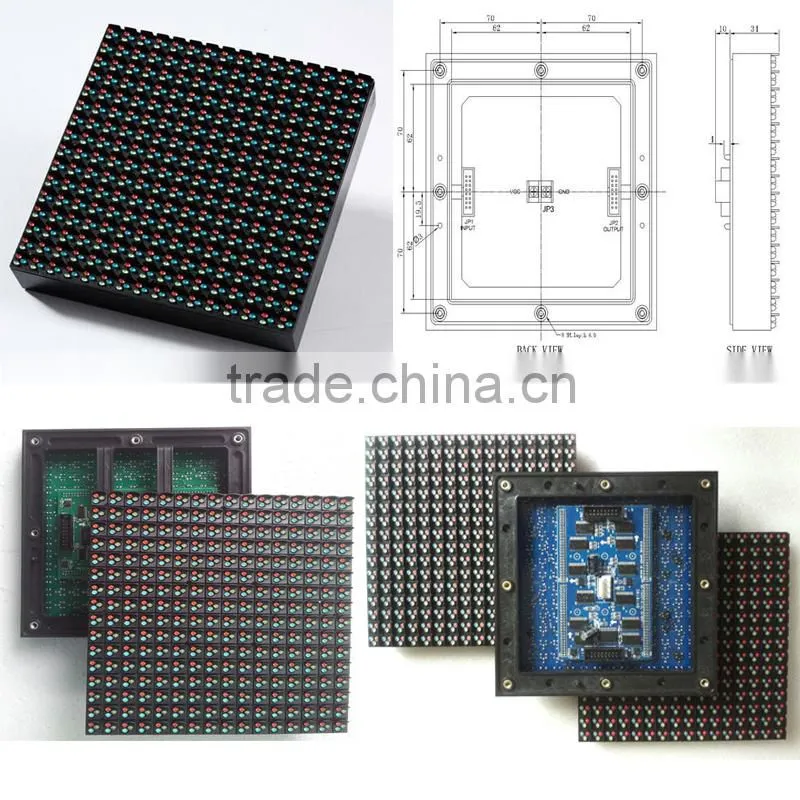

2 RGX P10mm LED Board Waterproof RGB P10 photo LED Display Board, digital display boards

Company Information

RGX was founded in 2000 year and has five hundred and fifty workers. There into, 12% is R&D engineer. Our general engineer was famous engineer in LED field, he has 12 years experience in LED product and is very familiar with LED display screen, power supply, technology and raw materials, we mainly produce middle and high-grade products, and have established strict product quality standards, we produce our product from LED chip to complete led screen assemble finish, that why we can guaranteed our product’s quality

4 RGX Company Photo:

Quality Control

5: Test: Each producing step of P10mm full color led display we have strict test.

Certification

6: RGX Certification:

7: Installation: ( Our factory will give you Drawing to teach you how to install it)

Packaging & Shipping

9: Pack, Flight case or Wooden case

10: Transportation:

Our Services

11: Tech. Support:

12: Our Advantage:

1) Professional manufacturer

2) Exquisite quality

A: ISO 9000 and 5S management system

B: Each procedure have special machine and QC to supervise and check

C: From the material purchasing, all have the special Equipment to stakeout

3) Perfect service

A: 2-3years guarantee with free charge, maintain in all life

B: Free training in our company or guide installation and train in customer country or on lone training by long- distance control in internet( you could send your colleagues who have some knowledge of electronics to our factory and we will provide free training of how to maintain and repair)

In the end, thank very much for you time, and wish you have good business in your life.
