12W 1030lm SMD LED AR111 G53 Base Nichia LED

12W 1030lm SMD LED AR111 G53 Base Nichia LED photo-1
12W 1030lm SMD LED AR111 G53 Base Nichia LED photo-2

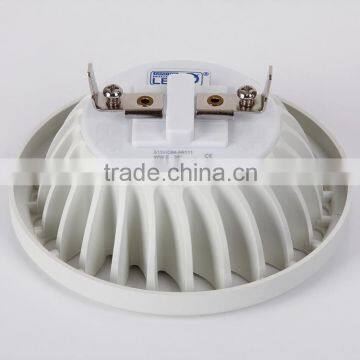

12W 1030lm SMD LED AR111 G53 Base Nichia LED photo-3

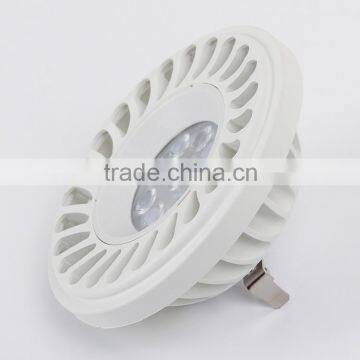

12W 1030lm SMD LED AR111 G53 Base Nichia LED photo-4

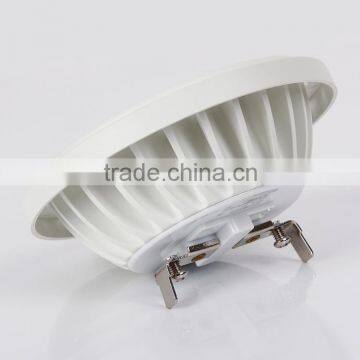

12W 1030lm SMD LED AR111 G53 Base Nichia LED photo-5
12W 1030lm SMD LED AR111 G53 Base Nichia LED photo-6
US$ 7 - 8.6 MOQ: 10 Pieces
Key Specifications
Get Latest Price
LED Light Source:
NICHIA LED
Install Style:
Suspended
Input Voltage(V):
12V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source NICHIA LED
Install Style Suspended
Input Voltage(V) 12V
Lamp Power(W) 12
Lamp Luminous Flux(lm) 960
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Other, 2400K,2700K,3000K,4000K,5000K
Working Temperature(℃) -5, 35
Working Lifetime(Hour) 50000
Lamp Body Material Other, Aluminum + Heat -Conductive Plastic
IP Rating Other, IP20
Certification CE, EMC, LVD
Place of Origin Shanghai, China
Brand Name Winsun
Model Number S13V-DIM-AR111

12W 1030lm SMD LED AR111 G53 base Nichia LED



Product Description



Product feature

Adopting GENUINE NICHIA LED, high CRI 85 or 90 Ra makes colors look vibrant and especially rich.

  • Dimmable down to 15% with most of trailing edge dimmers when in conjunction with recommended electronic transformers.
  • Perfect anti-glare optical design feast of eyes.
  • Unique design for good heat elimination performance.
  • When using electronic transformer, the brightness of this lamp is more than 90% of the one with DC transformer.
  • Aluminum + Heat-conductive plastic material perfects the heat elimination.
  •  Long life time up to 50000hrs.





Model NumberS13V-DIM-AR111(WW)/ S13V-DIM-AR111(NW)
Power consumption12W
LEDNICHIA
CRI85 / 95
Efficiency(lm/W)76lm/W / 80lm/W
Colour Temperature2400K/2700K/3000K/4000K/5000K
Beam Angle25°/ 36°
Input Voltage12VDC/AC
Lumens910lm / 960lm
MaterialAluminum + Heat-conductive plastic
Base TypeG53

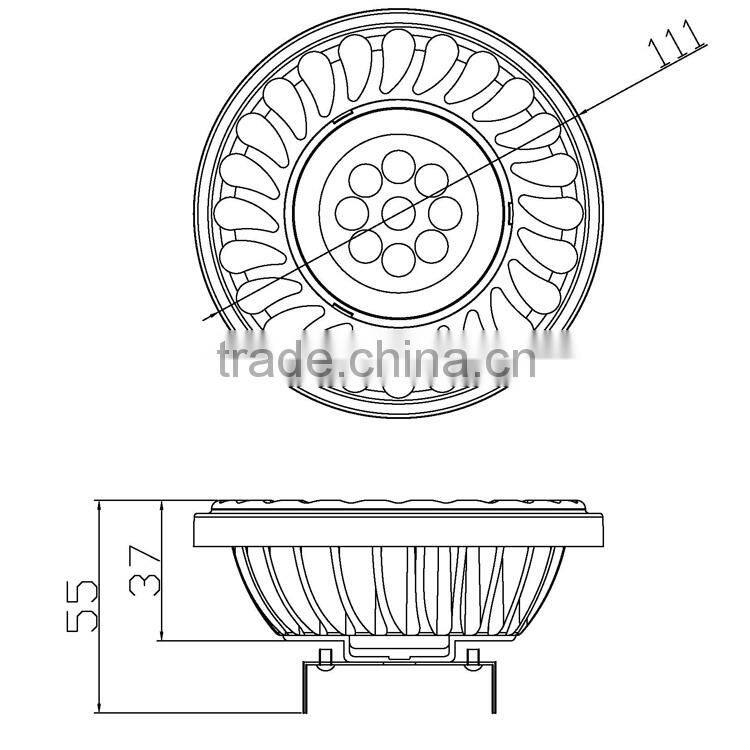

Dimension(mm)Φ111×55
Net Weight159g
Lifetime(hr)50000
Working Temperature-5℃+35℃
Dimmable

YES



    Color of the Shell             Black / White








Note: CRI 95 LED also available with same price, lumens is around 15% lower than CRI 85 LED.




 Application:

  • Area: Indoor use only.
  • Purpose: Accent lighting, local lighting.
  • General lighting, BAR/Restaurant, Hotel, Store, Hall / Lobby, Art gallery,
  • Jewelry store, Museum, Theater, School...



General characteristics



Model Number

Product name

Material

Base type

IP Rating

Dimension

(mm)

Net Weight

S13V-DIM-AR111(WW)

LED spot AR111

Aluminum + Heat -Conductive Plastic

G53

IP20

Φ111×55

159g

S13V-DIM-AR111(DW)

S13V-DIM-AR111(NW)

LED spot AR111

Aluminum + Heat -Conductive Plastic

G53

IP20

Φ111×55

159g

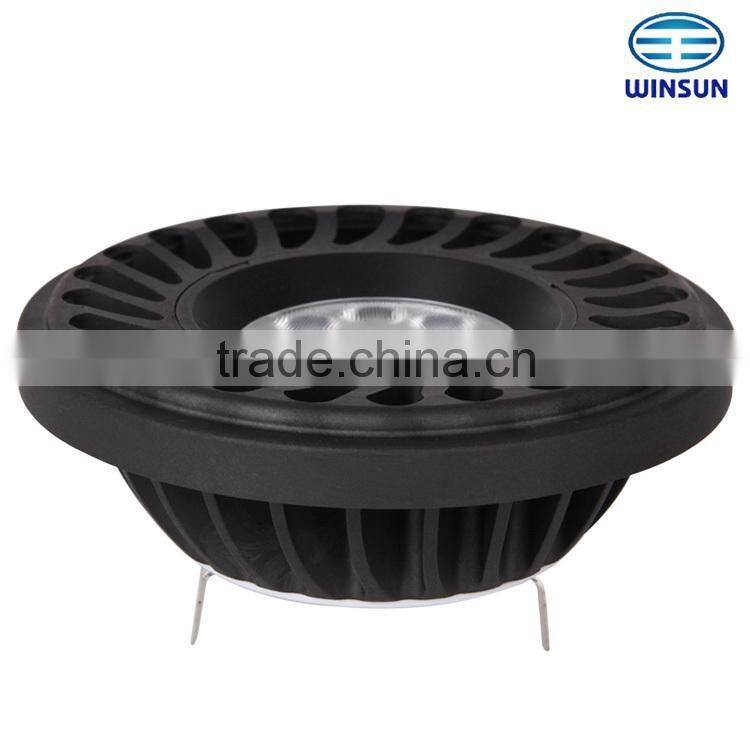

Product show

12W 1030lm SMD LED AR111 G53 base Nichia LED

12W 1030lm SMD LED AR111 G53 base Nichia LED

12W 1030lm SMD LED AR111 G53 base Nichia LED12W 1030lm SMD LED AR111 G53 base Nichia LED





12W 1030lm SMD LED AR111 G53 base Nichia LED12W 1030lm SMD LED AR111 G53 base Nichia LED12W 1030lm SMD LED AR111 G53 base Nichia LED

Packaging & Shipping

  Packing Information:



Packing: 40 PCS / carton

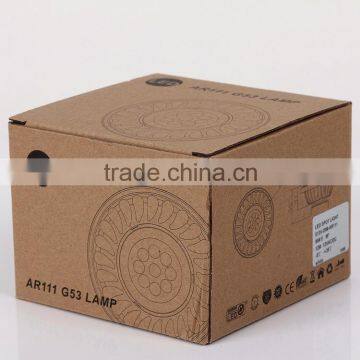

Box

118×118×87(mm)

242 g

Carton

62×39×27(cm)

10.6 kg











individual inner carton for each product, 40pcs/ Outer carton.



12W 1030lm SMD LED AR111 G53 base Nichia LED12W 1030lm SMD LED AR111 G53 base Nichia LED

Usually within 1 week for sample order and 2-4 weeks for normal orders, also concerns with your order quantity and our production schedule.





Company Information

WINSUN established in 2008, is a fast developing company who specializes in designing and manufacturing high power LED lights for indoor use like LED Spot Light (MR16 / GU10 / AR111 / PAR Light), LED Down Light, LED Ceiling Light and LED Bulb. All our products use original NICHIA LED with patent design. Having exported to most European countries and Oceania, and was highly praised by our old customers.

For more information please visit:





WINSUN Target
Creat energy saving and environmental protection products and bring them to the whole world.







WINSUN Mission
Produce the most reliable lighting products and let people easy to get them.

WINSUN Core Values
1. High quality wins value
2 .Innovation makes motivation
3. Frank honesty and mutual trust
4. Enterprising spirit and synchronous progress
5. Realistic and insistent





 12W 1030lm SMD LED AR111 G53 base Nichia LED12W 1030lm SMD LED AR111 G53 base Nichia LED12W 1030lm SMD LED AR111 G53 base Nichia LED

  12W 1030lm SMD LED AR111 G53 base Nichia LED

12W 1030lm SMD LED AR111 G53 base Nichia LED

Our Services





OEM/ODM Provided
With more than 10 years experience in the lighting industry of WINSUN's R&D department and professional trained workers who has rich assembly knowledge. With our own brand "WINSUN", OEM and ODM services can also be provided, customized products and color box with your own brand can be designed.



  12W 1030lm SMD LED AR111 G53 base Nichia LED
