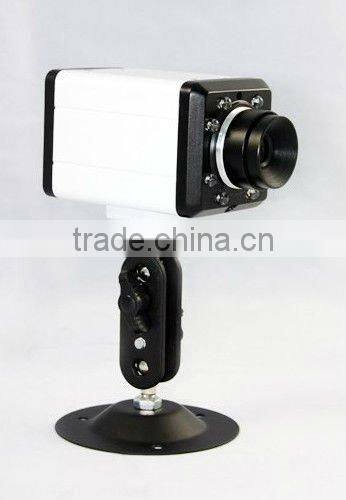

300K Pixels CMOS Sensor IR IP Camera,Support IE

Specifications

M-JPEG VIDEO IR IP CAMERA
1,Nice outlook
2,300K Pixels CMOS
3,Infrared LED for night vision

Model No.:  L&L-IP510

Description:  300K Pixels CMOS Sensor IR IP Camera, Support IE, Firefox, Safari, Google browser (optional).





Feature:

1/4" CMOS MJPEG IP Cube Camera

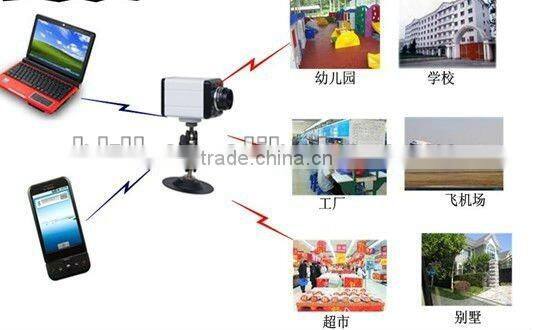

Built-in Web Server ,Support View , manager and remote control your camera over the internet

Camera can functions without PC turned on

Support IE, Firefox, Safari, Google browser (optional).

Share access to yout camera with friends and family

9 infrared LED , can capture video in dark environment

Adjustable , mountable stand allows you to place and position your camera anywhere

Uses auto-provisioning for zero-configuratuin network setup





Specifications:

Image Capture  Sensor 1/4" CMOS sensor

Total of pixel 300k

Minimum illumination IR on,0 Lux

Lens f=2.9mm, F=2.0, Fixed Iris

Auto Flickerless support

Assistant Lighting Control 8pcs 850nm Infrared LEDs, 5m-8m distance

Lighting Auto control

Video and Audio Resolution 640*480 VGA/320*240 QVGA

Compression MJPEG

Frame rate 30fps(QVGA,QQVGA),15fps(VGA)

Bit rate 100kbps ~ 4.5Mbps

Image Rotation Mirror /Up-side down

Network Basic Protocol TCP/IP,UDP/IP,HTTP,DHCP

Other Features Video control support

User Setting support

Device ID and Password Default setting

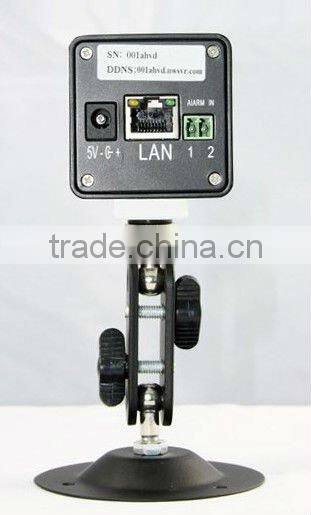

Hardware Interface Ethernet 10Base-T/100base-TX

Alarm In Optional

TTL 232 Port Optional

Physical Index Weight 180g

Main body 95mm(L)*51mm(W)*57mm(heart)

Power DC 5V

Power consumption  <5W

Operating temperature 0°C~ 45°C

Operating temperature 10% ~ 80% non-condensing

Software(PC Side) OS Supported Microsoft Windows 98/2000/XP/Vista

Browser Internet Explorer6.0 and Above or Compatible Browser, Firefox etc.

Application Software IPCMonitor.exe
