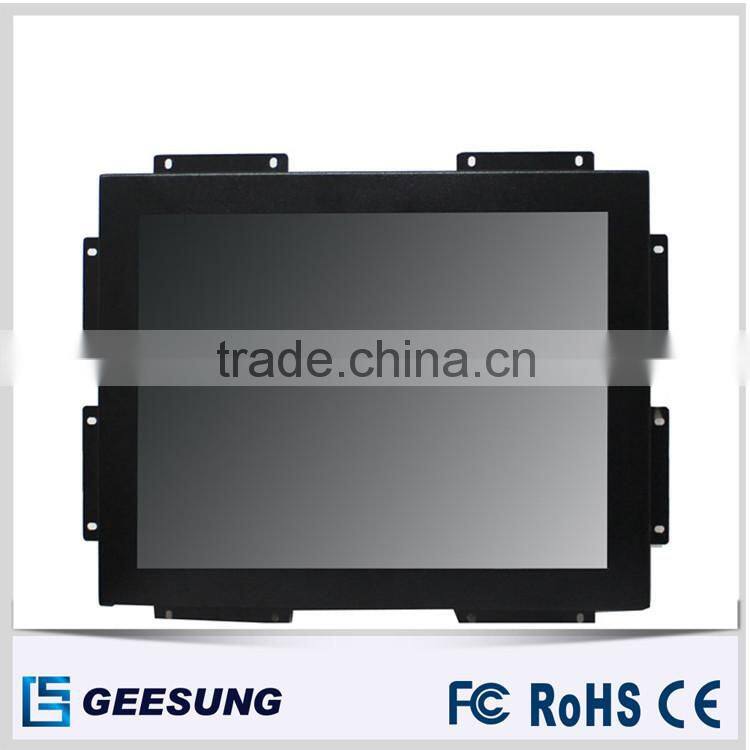

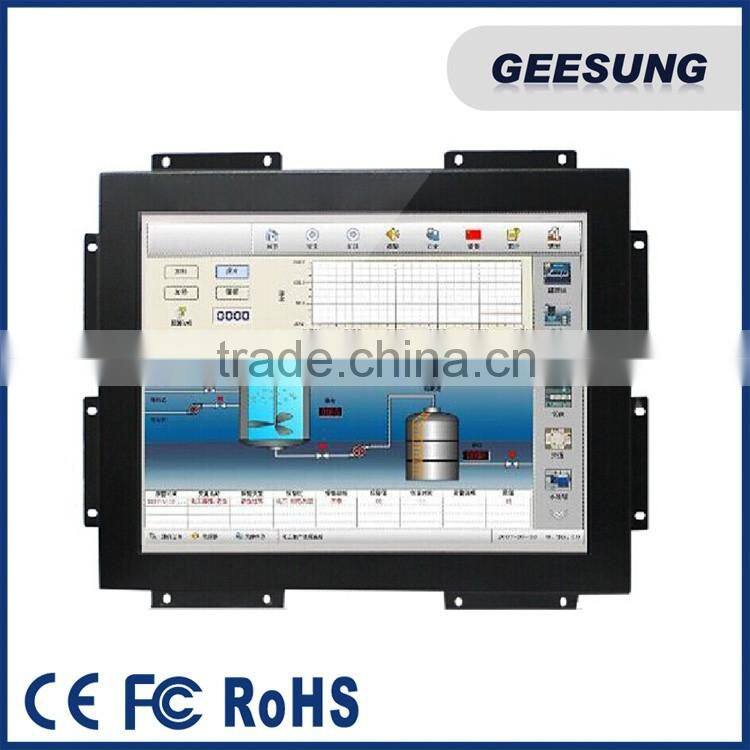

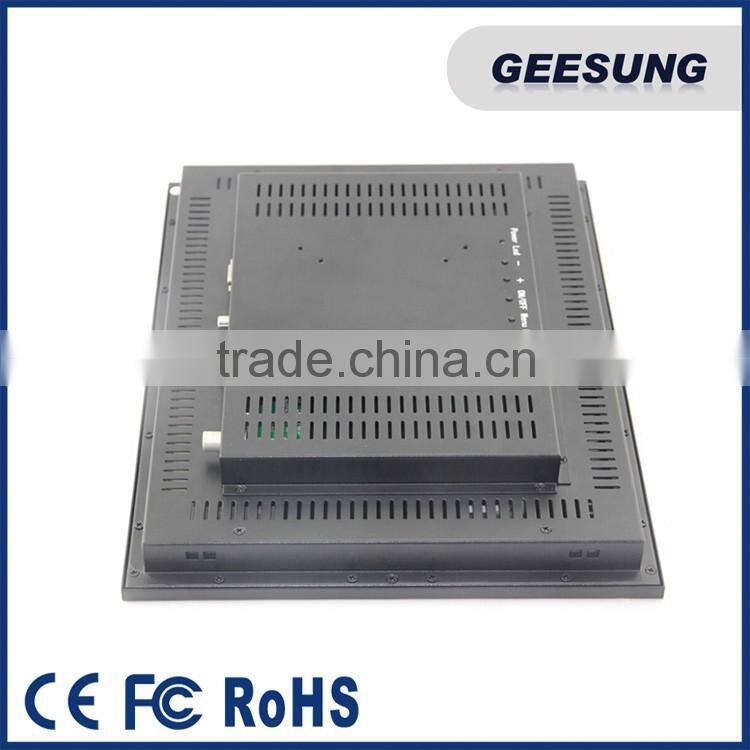

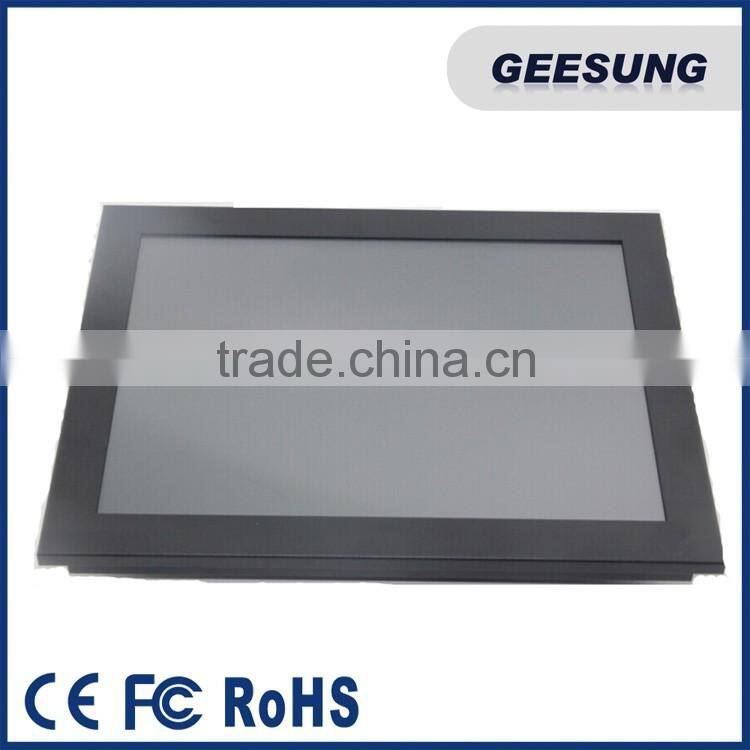

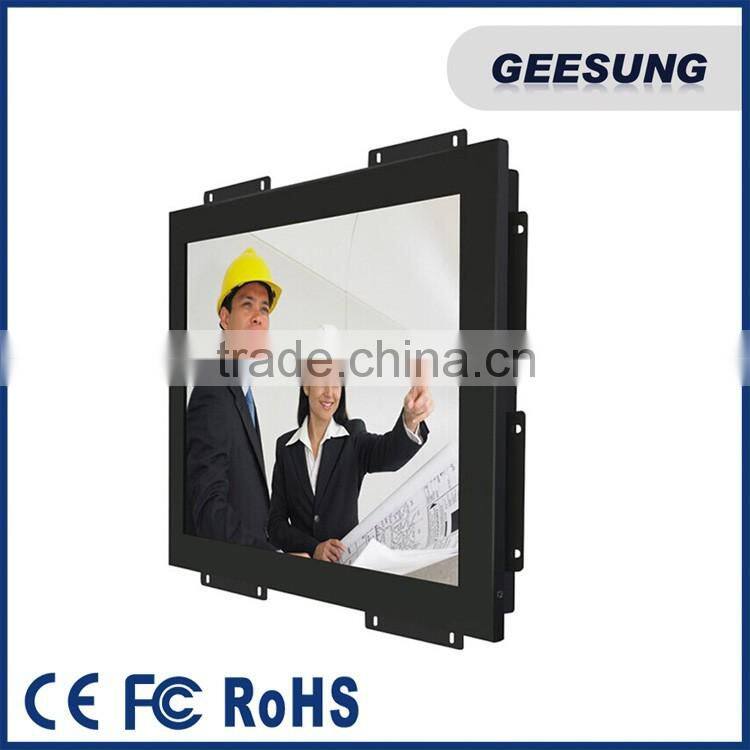

19 inch industrial machine/lcd panel open frame touch screen monitor
Metal Case design
Multi-level menu for more convenient operation
Standard VESA wall mount/desktop for more convenient installation

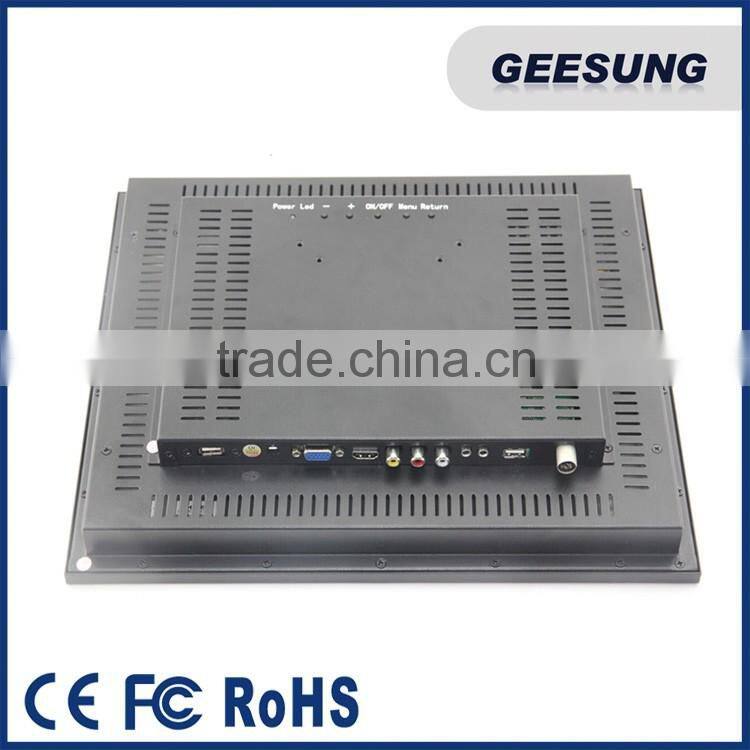

Full ports meet various requirements
| Name | 19 inch industrial machine/lcd panel open frame touch screen monitor |
| Model | OF1700 |
| Display Ratio | 4:3 |
| Resolution | 1280*1024/60HZ |
| Display mode | SVGA |
| Color | 16.7M colors |
| Pixel Pitch(mm) | 0.264H*0.264V mm |
| Brightness(nits) | 450cd/m2 |
| Signal connector | D-sub 15 pin |
| Contrast | 1000:1 |
| View Angle | H170/170 V160/160 |
| Response time | 5ms |
| Backlight | LED |
| Life (hrs) | 50000 hours |
| Material | Metal case |
| Installation | Stand/Standard VESA Holes |
| Touch Screen Interface | USB |
| Touch Screen | 5 wire resistive touch screen |
| Signal input | Analog RGB |
| HDMI input | Support 1080i HDMI (optional) |
| VGA input | Standard VGA(15 pin D-SUB RGB) input |
| Earphone input | Support |
| Remote Controller | IR Remote Controller |
| OSD | power, menu, auto, up, down |
| Menu language | English, Germany, French, Spanish, Russian and others |
| Input | PC/DVI/VGA |
| Power supply | 110-250V AC /12V DC, 50-60HZ |
| Power consumption | 16W |
| DC output | 12V/4A |
| Line frequency | 30-80KHZ |
| Field frequency | 56-75HZ |
| Operating condition | temperature: -10-60 degrees Celsius; Humidity: 10%-80% |
| Storage condition | temperature: -20 to +70 degrees Celsius; Humidity: 10%-90% |
| Touch validity | >30,000,000 times |
Besides 19inch open frame touch screen monitor, we also supply 12" 15" 17" 22" monitor, and have Resistive/Capacitive/IR/SAW touch panel for option.
We are a 11 years supplier on alibaba. We mainly manufacture Monitors, POS Machine and related Accessories. We can provide 12 months warranty for all products.
Trade Assurance. It can safeguard your payment to us and ensure us fulfill our obiligations regarding order delivery and product quality.
We have the faith that Quality is always the first Factor you need concern, so we try our best to choose the best material.
If you have any requirement about our products, please feel free to contact me.
