C5112E Conventional Vertical lathe China Vertical Lathe Machine

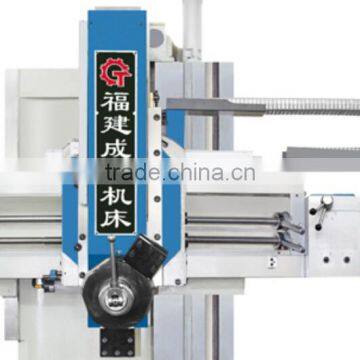

Machine picture:
Technical parameter:
Specification | Unit | Model C5112E |
Max. turning diameter | mm | 1200 |
Table diameter | mm | 1000 |
Max. height of work piece(H) | mm | 1000 |
Max. weight of work piece(W) | kg | 4000 |
Speed range of table(16steps) | r/min | 6.3-200 |
Feeding range of tool holder(12steps) | mm | 0.8-86 |
Vertical tool rest ram stroke | mm | 650 |
Horizontal travel of side tool holder | mm | 500 |
Vertical travel of side tool holder | mm | 980 |
Max. turning diameter of side tool holder | mm | 1000 |
Travel of cross rail | mm | 750 |
Rapid traverse of tool holder | mm /min | 1800 |
Swing angle of vertical tool holder | ±o | 30 |
Max. cutting force of vertical tool holder | KN | 20 |
Max. cutting force of side tool holder | KN | 20 |
Max. torque of table | KN.m | 17.5 |
Height of tool bar section | mm | 40 |
Power of main motor | KW | AC:22 |
Overall dimensions of machine(L×W×H) | mm | 2360×2300×3580 |
Weight of machine(approx) | Kg | 9800 |
Note: Manufacturer reserves the right to improve & modify without prior notice.
Features:
1. This machine is used for various rough and finish turnings including internal and external cylindrical surface, conical surface, end face and grooving.

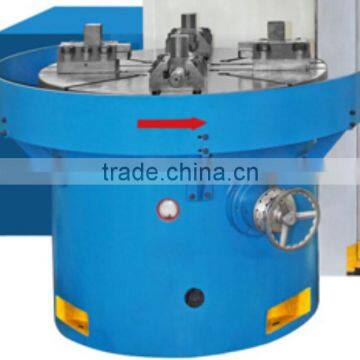

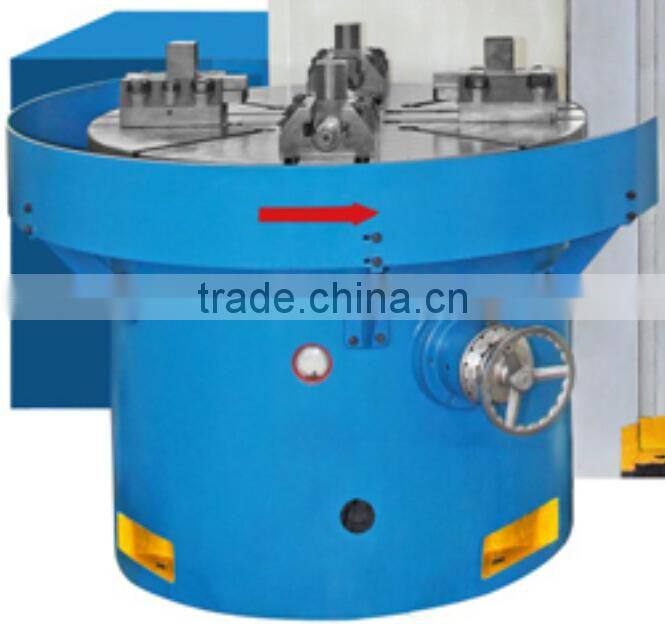

2. The work table uses dynamical pressure slide-way and NN30 dual cylinder roller bearing. It features high bearing capacity and revolving precision.
3. Pentagonal tool slide is set on the vertical tool head, square tool slide is set on the side tool head. Both tool heads are balanced hydraulically.

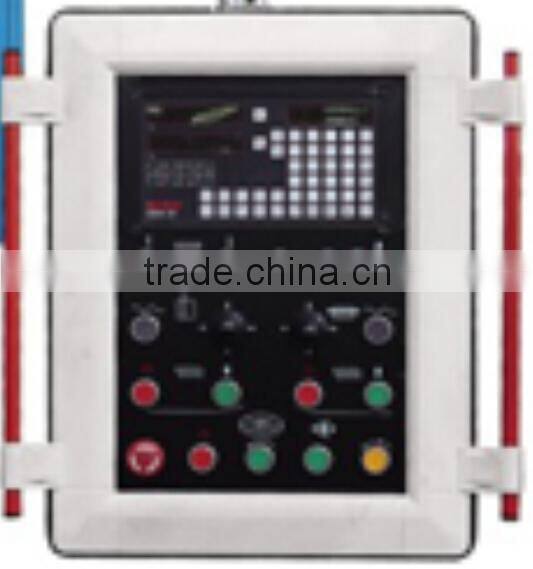

4. The machine is controlled by PLC. With the DRO, it is of high reliability.
5. The machine has good shape and it is easy to operate.
6. The side tool head and the taper accessories are provided according to special demands.
Packaging detail: Dismantled into fumigated wood cases, loaded into containers and fastened by iron cable.
Shipping: 2-3 months
Engineers available to service machinery overseas.
Workshop Video
We use follow main production equipment for guarantee our machine quality

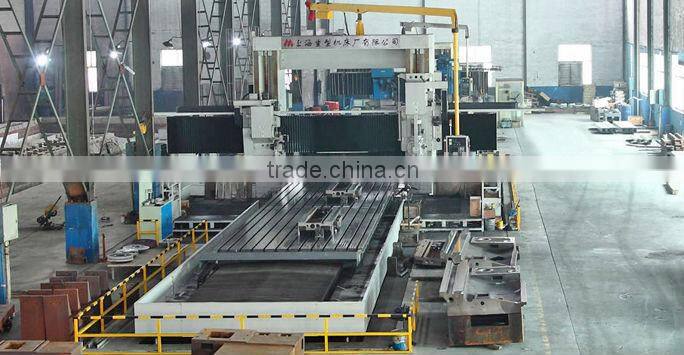

Imported pentahedron cnc gantry boring and milling machine
Imported cnc gantry guideway grinder
Floor type boring and milling machine
Gear hobbing machine etc
Also we have high precision inspection equipment including: three-coordinate measuring machine, laser interferometer etc.
Advanced detection methods, creating high-end machine tools.
Main Production Equipment In Workshop
Nice Environment Factory And Good Life Condition
Beauty Park, Media Room, Health Room, Nice Dormitory, Big Basket Court, Wonderful Team Travel...
We Have Professional Engineer Team To Design And Manufacture High Quality Machines For You
Q1. How about your Machine Service?
A. We are supply machine operation and maintenance training and give warranty 1-2 years.
We are supply install service in customer factory, we also can supply installation video if you need.
Q2. How about your delivery time?
A. Loading port: Xiamen port. Or according to your requirement.
General 1-3 months for delivery time.
Q3. How about your payment terms?
A. TT (with 30% deposit)
L/C at sight
Western union
Q4. How to arrive your factory?
A. Line1. Choose to Quanzhou Railway Station. It take 30mins from station to our factory by car.
Line2. Choose to Jinjiang Airport. It take 40mins from airport to our factory by car.
Line3. Choose to Xiamen Airport. It take 1 hour from airport to our factory by car.
We are ready to convenience you to visit us. More support just feel easy to inquiry us.
Why choose us?
√ We own a very strong R&D team and good experienced engineer group in our factory.
√ All our products starting from planning, developing, designing, producing, assembling, testing to final delivering are based on the customer’s requirement.
√ To achieve the highest quality and customer trust on our products, we never stop our technology improvement and know-how upgrade.
√ We are original import production equipments from Spain NICOLAS CORREA brand for guarantee our machine main parts quality.
√ We have our own casting factory with mature tech for casting body and parts more than 20 years.
√ We are design and production machines under the Taiwan and Europe standard.
Your detailed inquiry will be highly appreciated,we are looking forward to your reply!
Thanks for your viewing!
