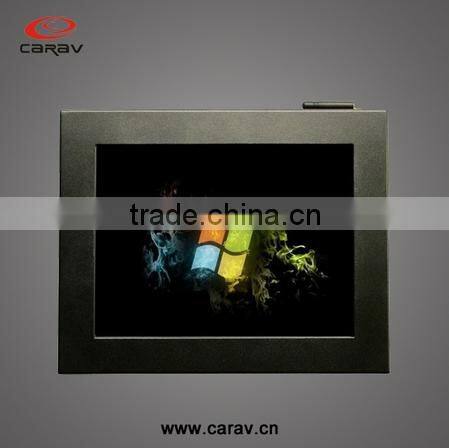

10" pos solutions/pos all in one pc with Intel NM10 Express Chipset(AIO-1020)

Specifications

1.CPU:On board Intel Atom D525 1.8GHz dual core
2.Memory:2*204-pin DDR3 DIMM up to 4GB
3.Chipset: Intel NM10 Express Chipset

10inch pos solutions/pos all in one pc with Intel NM10 Express Chipset(AIO-1020)

Advantages:

1. sample is avaliable

2. CE/RoHS certificate are approval

3. good quality

4. competive price

5.12 month warranty

6. 1800 units sales per month

Product Display:

Front→

Succinct, Natural and curve smoothing frontal appearance

Port→

Panel PC

Fanless Ultra slim Panel PC

Product Features

n Standard with  Intel® Atom^TM    Dual-core processor

n High brightness ,Full view angle IPS TFT panel

n Multi-directional heat- releasing structure

n Built-in W-Lan Antenna(802.11b/g/n)

n Ultra slim metal design , beautiful ,durable and rugged

n Independent graphics NVIDIA ION2  and support 1080p HD photo quality



SBC Model:     ALL IN ONE special & professional SBC

CPU:     On board Intel® Atom  D525 1.8GHz dual core

BIOS:    Award BIOS 4/8Mbit SPI Flash ROM

Chipset:    Intel NM10 Express Chipset

Memory:    2×204-pin DDR3 DIMM up to 4GB

Graphics:   Independent Graphics NVIDIA ION2 and support 1080p HD photo quality

Audio Card:    Realtek ALC662 high Definition audio codec

Network:     2×Realtek RTL 8111E Gigabit Ethernet controller,(Wireless Wifi)

I/O:     4×USB 2×COM 1×VGA/LAN/HDMI/Audio OUT/MIC IN/S/PDIF/POWER DC

Hardisk interface:    2.5”SATA (SSD optional )

Watchdog:   Support system reset grade   0~255

Front panle grade:   IP65

Power supply:   DC 12V input

Monitor size:    9.7"

Touch type :     4 –wires resistive touch

Surface hardness:     3H

Transmittance:    ≥80%

Sensitive:    <10ms

Resolution:   1024× 768

Brightness:   400cd/m2(Typ)

Contrast:      700:1

LCD color:    16.7M colors

Pixel Pitch:    0.264 x 0.264

Life time:    Single-point 10000,000 times , Draw lines 100,000 times

Operating temperature:     -20°C~60°C

Storage temperature:     -30°C~80°C

Working Humidity:     5%—95%,40°C,Non –condensing

Vibration:     5-100Hz,Sine wave,11.76m/S2,1minute  X,Y,Z directions,10 times / direction

Shock:    294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction

Case:    Metalcase , shockproof , anti-interference , metal shell(paint))

Installation ways:    Rackmount , Embeded , wall mount ,VESA bracket

Shock:     294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction

Case:    Metalcase , shockproof , anti-interference , metal shell(paint))

Installation ways:     Rackmount , Embeded , wall mount ,VESA bracket



I/O Interface

1×VGA

1×HDMI

1×Gigabit LAN

4×USB

1×Audio OUT

1×MIC IN

1×S/PDIF

2×COM

1×POWER DC IN

Installation Ways





          Windows XP Embedded

Optional Embedded System Windows CE

          Linux

The base is firm and durable, and can be adjusted to best using position to make sure the effect of without slaking when touching.



Optional  Spareparts

Wireless Lan: 802.11 b/g/n Mini-PCIe Intel® wireless lan module

Standard Bracket: Wall mount bracket /Rackmount /VESA bracket

DDR Memory: 1G-4G

SSD: 1GB-4GB CF, industrial grade  -40°~+85°

          8GB-512GB SSD,industrial  -40°~+85°



Ordering Information

   9.7"Panel PC , 4-wires resistive touch N/RAM;HD

   9.7"Panel PC , 4-wires resistive  W/2G RAM;standard HD



Packing information

Power Adaptor, AC Power cable,  Driver Disk, Certificate, Touch Pen Screws

   √                 √                            √                                    √                         √                               √

Fashion and high-level machine with touch screen is to support

Certificate:

We will take part in the HK fair every year:

Warranty:

one year warranty for free (with the exception of man-made damage).

Shipment:

 FEDEX, DHL, UPS, EMS, AIR FREIGHT, SEA FREIGHT available

Contact us:

We are professional manufacturer of pos machine and we can also supply 7", 8", 12", 15", 17", 19" and 22" touch screen POS. Hope to establishe long-term win-win cooperation with you.

If you have any problems, feel free to contact us.



Skype: vivi.cat18

QQ:  2634467592

Any inquiry will be highly appreciated, and we will provide you the best quality and services with the best price.
