Wall Mount/Embedded 10" Industrial pc With Wall Mount Bracket/embedded Bracket

Specifications

1.CPU:On board Intel Atom D525 1.8GHz dual core
2.Memory:2*204-pin DDR3 DIMM up to 4GB
3.Chipset: Intel NM10 Express Chipset

10 inch industrial all in one pc

Product Display:

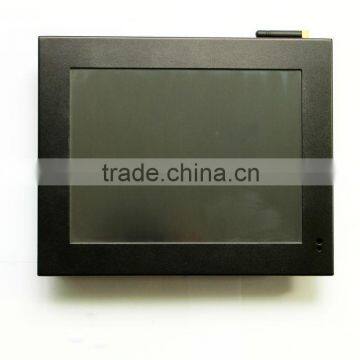

Front→

Succinct, Natural and curve smoothing frontal appearance

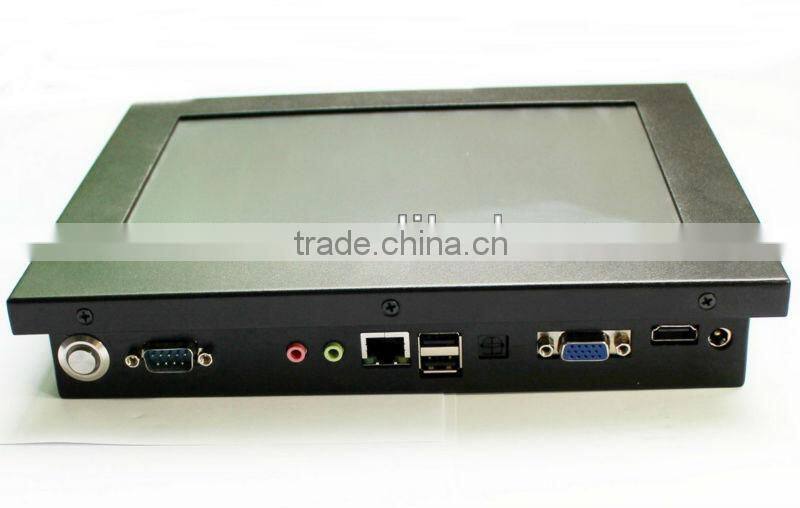

Port→



Panel PC

Fanless Ultra slim Panel PC



Product Features

n          Standard with  Intel® Atom^TM    Dual-core processor

n          High brightness ,Full view angle IPS TFT panel

n          Multi-directional heat- releasing structure

n          Built-in W-Lan Antenna(802.11b/g/n)

n          Ultra slim metal design , beautiful ,durable and rugged

n          Independent graphics NVIDIA ION2  and support 1080p HD photo quality



SBC Model      ALL IN ONE special & professional SBC

CPU            On board Intel® Atom  D525 1.8GHz dual core

BIOS           Award BIOS 4/8Mbit SPI Flash ROM

Chipset        Intel NM10 Express Chipset

Memory         2×204-pin DDR3 DIMM up to 4GB

Graphics      Independent Graphics NVIDIA ION2 and support 1080p HD photo quality

Audio  Card           Realtek ALC662 high Definition audio codec

Network           2×Realtek RTL 8111E Gigabit Ethernet controller,(Wireless Wifi)

I/O            4×USB 2×COM 1×VGA/LAN/HDMI/Audio OUT/MIC IN/S/PDIF/POWER DC

Hardisk interface            2.5”SATA (SSD optional )

Watchdog          Support system reset grade   0~255

Front panle grade    IP65

Power supply            DC 12V input

Monitor size        9.7"

Touch type      4 –wires resistive touch

Surface hardness        3H

Transmittance         ≥80%

Sensitive           < 10ms

Resolution          1024× 768

Brightness            400cd/m2(Typ)

Contrast           700:1

LCD color       16.7M colors

Pixel Pitch           0.264 x 0.264

Life time       Single-point 10000,000 times , Draw lines 100,000 times

Operating temperature      -20°C~60°C

Storage temperature        -30°C~80°C

Working Humidity        5%—95%,40°C,Non –condensing

Vibration             5-100Hz,Sine wave,11.76m/S2,1minute  X,Y,Z directions,10 times / direction

Shock           294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction

Case            Metalcase , shockproof , anti-interference , metal shell(paint))

Installation ways     Rackmount , Embeded , wall mount ,VESA bracket

Shock           294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction

Case            Metalcase , shockproof , anti-interference , metal shell(paint))

Installation ways     Rackmount , Embeded , wall mount ,VESA bracket

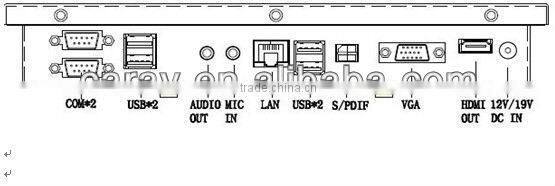

I/O Interface

1×VGA

1×HDMI

1×Gigabit LAN

4×USB

1×Audio OUT

1×MIC IN

1×S/PDIF

2×COM

1×POWER DC IN

Installation Ways





                        Windows XP Embedded

Optional Embedded System Windows CE

                        Linux

The base is firm and durable, and can be adjusted to best using position to make sure the effect of without slaking when touching.



Optional  Spareparts

Wireless Lan: 802.11 b/g/n Mini-PCIe Intel® wireless lan module

Standard Bracket: Wall mount bracket /Rackmount /VESA bracket

DDR Memory: 1G-4G

SSD: 1GB-4GB CF, industrial grade  -40°~+85°

          8GB-512GB SSD,industrial  -40°~+85°



Ordering Information

   9.7"Panel PC , 4-wires resistive touch N/RAM;HD

   9.7"Panel PC , 4-wires resistive  W/2G RAM;standard HD



Packing information

Power Adaptor AC Power cable  Driver Disk Certificate Touch Pen Screws

   √                 √         √             √        √        √

Fashion and high-level machine with touch screen is to support

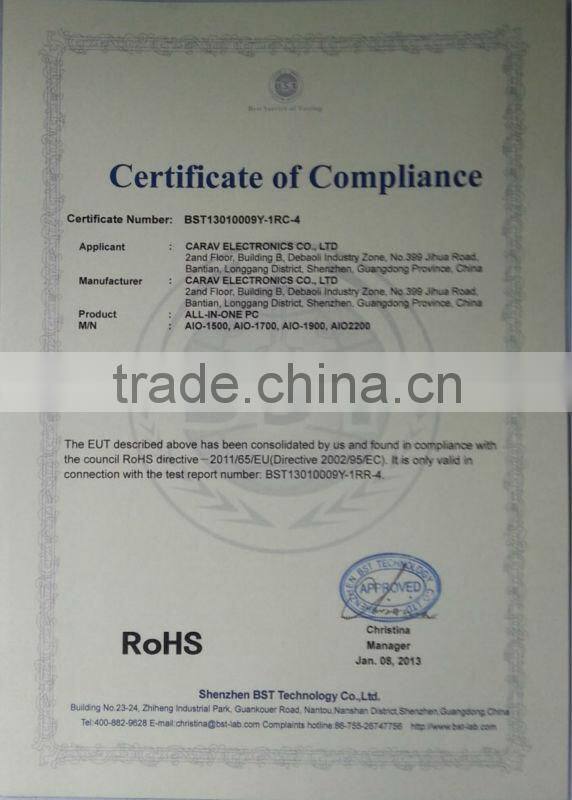

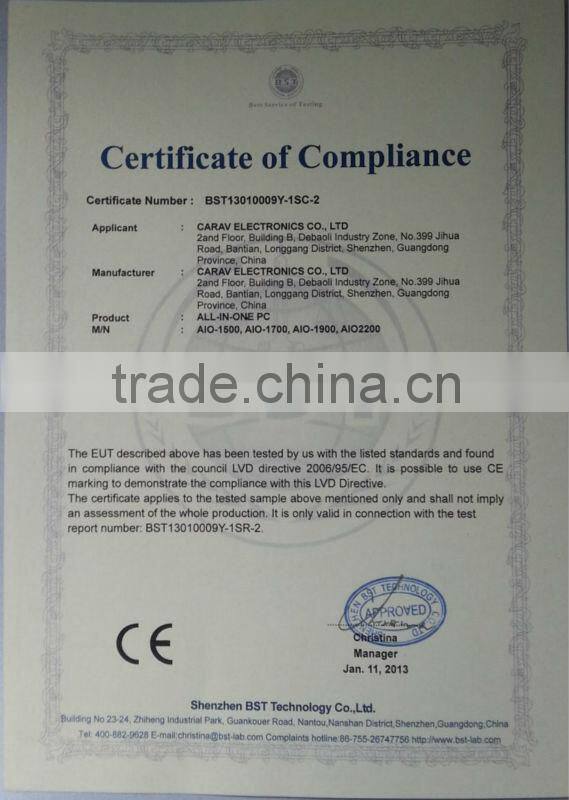

Certificate:





We will take part in the HK fair every year:







we can also supply 7", 15", 17",19" and 22" touch screen POS.

we will provide you the best quality and services with the best price.
