reliable high accuracy ph meter conductivity

Name: reliable high accuracy ph meter conductivity
Brand: Dongrun ph meter conductivity
Availability: InStock

FOB Price

USD $80 - $200 / Piece

1 Piece(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Yantai
Payment Terms:Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin:

Shandong, China

Brand Name:

Dongrun ph meter conductivity

Model Number:

DMD-99 ph meter conductivity

Packaging Details

The package of ph meter conductivity is: carton package, lined with foam

Product Description

reliable high accuracy ph meter conductivity

Product Instruction

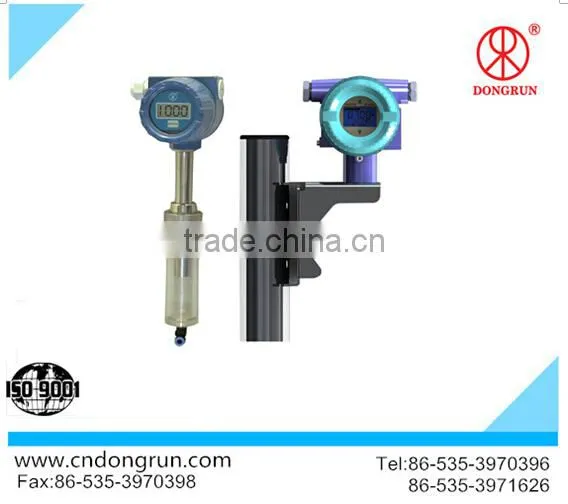

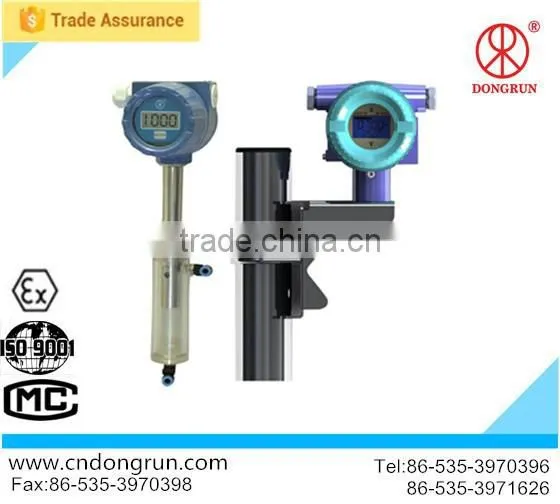

Two-wire conductivity transmitter is an integrated integrated two-wire instrument that can be used to detect the conductivity of drinking water, food and beverage, chemical,boiler water, pharmaceutical,reverse osmosis,pure water and other industries in a body of water, economical and practical,easy to install and use.

Feature

1. Integrative structure, local display or remote, simple to use, reliable in performance

2.4-20mA output, achieve two-wire transmission

3. a variety of installation structural form, convenient and flexible, can satisfy the needs of different users

4.good load, strong antiinterference ability, two different electrodes, can satisfy the different needs of users. Long transmission distance, up to 1000 meters

5.With reverse polarity protection, surge voltage protection and overload protection function

Technology parameter

Power supply	24VDC(22~32V)
Electrode	Platinum electrode electrode constant has two kinds of 0.1, 1. Protecting tube is made of stainless steel, ABS or PP Stainless steel combination electrode, the structure is strong, can be repeated washing, two electrode constant is 0.01 and0. 1
Operating temperature	-10~60°C
Ambient temperature	-10~60°C
Temperature compensation	automatic compensation mode
Medium pressure	standard value <0.6MPa
Measurement range	Stainless steel electrode:0~0.1~20μs/cm, k=0.01 0~1~200μs/cm, k=0.11 Platinum electrode :0~1~200μs/cm, k=0.1 0~10~2000μs/cm, k=1
Output	4~20mA
Accuracy	±2%FS
Drifting	8.≤0.5%FS/24h
Load	0~500Ω(with LCD gauge outfit 0~250Ω)
Response time	about 0.4s,When power outages, the instantaneous time for output is 0.2s
Shell Protection	IP65
Leading in the feeder cable	8.he ordinary cable diameter greater than φ8 mm, no shielding requirements, remote transmission distance up to 1000 meters
