Home > Products > ZLJM-D NO Series DC Contactor > DC CONTACTOR ZLJM-200D(SW180)

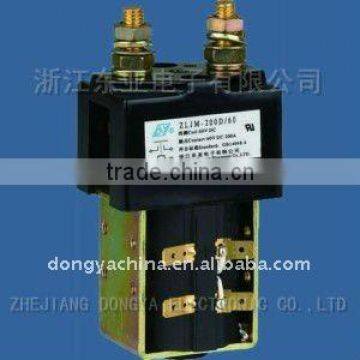

DC CONTACTOR ZLJM-200D(SW180)
- 45 Piece / Pieces per Month
- Shanghai/Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DY | |
| Model Number | ZLJM-200D | Electricity Type | DC | |
| Main Circuit Rating Voltage | Other, 12VDC-120VDC | Main Circuit Rating Current | Other, 200A |
Product Description
Specifications
DC CONTACTOR ZLJM-200D(SW180)coil rated current: 200A
coil rated volt.: 12VDC-120VDC
Certificate: UL, TUV, ROHS
DC CONTACTOR ZLJM-200D(SW180)
Model No. | ZLJM-200D/ |
Contact Arrangement | 1H (SPST-NO) |
Contact Material | AgCdO |
Contact Rating(at Resistive Load) | 200A 80VDC 200A 250VAC |
Max. Switching Voltage | 80VDC,250VAC |
Max. Switching Power | 50000VA |
Endurance of Over Loading Current7Ie/10S | 1400A/10S |
Coil Rated Voltage | 12,24,48,60,120VDC, etc. |
Pick-up Voltage | (40-70) % of coil rated voltage |
Drop-out Voltage | (5-30) % of coil rated voltage |
Contact Pressure Drop | At most 30mv when 100A |
Insulation Resistance | Min. 100MΩ at 500VDC |
Dielectric Strength (Between Insulated Electric Parts) | 1000VAC 50 HZ/60 HZ (1 minute) |
Operate Time | Max. 50mSec. |
Release Time | Max. 50mSec. |
Ambient Temper | -25oC~+60oC |
The shocking of fixed point | (10-200)HZAcceleration≤3.5g |
Shocking | (60-100) time/minuteAcceleration≤4g |
Mechanical Life | 100,000 Operations (no load) |
Electrical Life | 20,000 Operations (at rated load) |
