Home > Products > flexible LED display > P10 outdoor led curtain flexible 1R1G1B
P10 outdoor led curtain flexible 1R1G1B
- 3000 Square Meter / Square Meters per Month
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | China | Brand Name: | coolview | Model Number: | CV-O-P10F |
Product Description

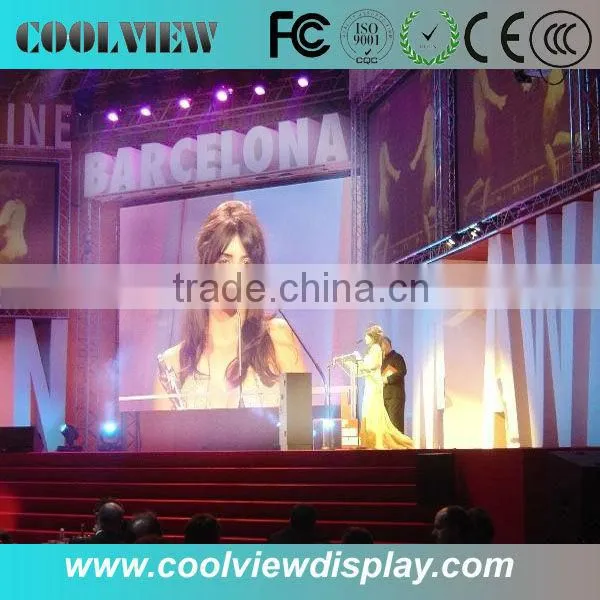

Coolview outdoor led curtain Description:
Flexible LED curtain for indoor stage outdoor advertisement, music club use, soft and flexible LED video display make all the
indoor events become more colorfull & lively.
The advantage of the LED curtain is low weight,transparent & low cost. The most common use LED curtain display is
P10mm,P15.625mm , P20mm P31.25mm. The Large size,full colorfull effect for the stage background make it be an ideal
solution for stage, exhibition booths, interior & exterior events.
Coolview products range:
LED cabinet display:
SMD: P3,P4,P5,P6,P7.62,P10
DIP: P10,P16,P20
LED flexible display:
P10,P15.625,P20,P31.25
outdoor led curtain Features:
1.Wide application field&short ROI time:comercial advertising LED display, Stadium perimeter LED display,Mobile trailer LED
panel for mobile media,shopping mall LED panel for logo showing,bank&stock exchange LED panel for rates
showing,train&bus station,air port,telecommunication LED panel system for information showing and instruction
2.High Contrast:4000:1,which is a very high level to ensure a vivid image of our LED screen system.
3. First-class LED chip: Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long liftetime and high
brightness of our LED screen sytem.
4.Clear image quality even in direct,full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's
investment.
5.Long-term Brightness:5000-nit brightness capacity throughout product lifetime of the LED display
6.Easy Installation & Using:easy & simple installation interface and user friendly software to ensure the user friendly interface
of the LED screen sytem
7.Convenient Servicing:Front and rear cabinet access and rear led flexible make the maintance work very convenient and low
cost to help you concentrate more time and energy on your main maketing promotion business.
outdoor led curtain module:
outdoor led curtain Technical parameters:
| Project classification | Conventional display | ||
| model | P10 | ||
| Pixel unit module | Pixel pitch(mm) | 10 | |
| Pixel density (dots/sqm) | 10000 | ||
| LED type | SMD3528 | ||
| Module size(mm) | W320×h1280 | ||
| Pixel composing | 1R1G1B | ||
| Pixel unit screen | screen size(mm) | based on customer need | |
| module Resolution (nits) | W32×h128 | ||
| Cabinet structure | Water-proof | ||
| installation | fixed on the back | ||
| screen material | iron | aluminum | |
| The way the cascade | Aviation head | ||
| Protect degree | IP66 | ||
| Display parameters | Viewing distance(m) | 7~105 | |
| brightness(cd/sqm) | 5000~6500 | ||
| Power consumption (w/sqm) | 310 max | ||
| Driving IC | 9268IC | ||
| Refresh rate(HZ) | ≥4000 | ||
| Display ratio (suggest) | 4:3/16:9 | ||
| Viewing angel(c) | H130 V130 | ||
| System working voltage | 88-132VAC176-264VAC 47-63HZ | ||
| Other parameter | Image adjustment | contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc | |
| Image processing | Video noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc | ||
| Brightness uniformity | The whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9 | ||
| Gray | 65536 | ||
| Color temperature/contrast | Red, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need | ||
| Transmitting Distance | The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers | ||
| Input Signal | RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION | ||
| Control System | PCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer | ||
| Average No Failure Time | 5000 hours | ||
| Life span | 100,000 hours | ||
| Out-of Control rate | 0.0001 | ||
| To floor drain current | Less than 3.5MA | ||
| Control system | Synchronized | ||
| Operating Environment Temperature | -20°C—65°C Optional | ||
Coolview outdoor led curtain after-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
outdoor led curtain factory:
outdoor led curtain packing :
Coolview certificates for outdoor led curtain :
