gearbox manufacturer
| | |
| WK SERIES | WS SERIES | WF SERIES |

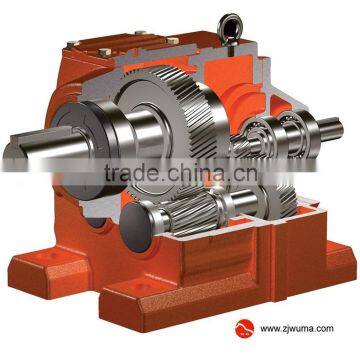

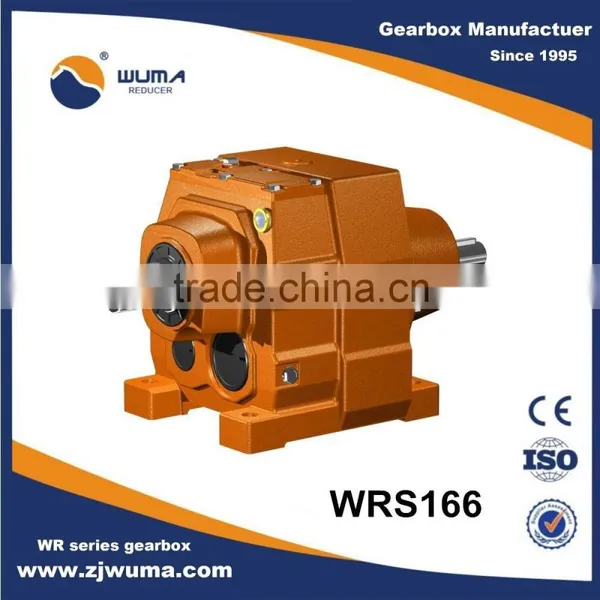

Our WR series helical gear reducers are based on the building block design, so its convenient for them to fit all types of motors or to connect with other power input, and its possible for different types of machines to combine or connect.
1,Compact construction, saves space for mounting, large load-bearing capacity and long life.
2,High transmission efficiency and low noise. A single machine can reach a transmission efficiency as much as 96%.
3, Precise division of transmission ratio with a wide range. The combination of machines can produce a larger transmission ratio at a low output rotational speed.
4,Specification: WRF146.
5, Input power: 0.12~90KW.
6, Output torque: 960~21700Nm.
7,Transmission ratio: 5.31~21342.
8,Installation: Foot-mounted, B5/B14 flange-mounted, input shaft, hollow output shaft, etc.
| WR Series Pressure Reducer | |
| Efficiency | 94%~98% (depends on the transmission stage) |
| Housing material | HT250 high-strength cast iron |
| Gear material | 20CrMnTi |
| Surface hardness ofgears | HRC58°~62 ° |
| Input / Output shaft material | 40Cr |
| Machining precision of gears | accurate grinding, 6 Grade |
| Lubricating oil | Mineral oil |
| Heat treatment | tempering, cementiting, quenching,etc. |
| Brand of bearings | HRB heavy-duty bearing, C&U bearing |
| Brand of oil seal | NAK or other brand |
| Noise (MAX) | 65~70dB |
| Temp. rise (MAX) | 40 C |
| Temp. rise (Oil)(MAX) | 50 C |
| Vibration | ≤20µm |
These data and parts can be changes as your requirements.
1,Housing Design,Ratio,etc.
2,Key Spare Parts(Bearing/Oil Seal).
3,Color.
4,Name Plate.
5,Oil Brand.
We can develop as customers' samples and drawings.
We do 100% run test before despatch.Each item being tested for two hours, and each side for one hour.
Zhejiang Wuma Reducer Co., LTD. is a company specializing in research, development and production of various speed reducers and variators etc. It is a member of China Speed Reducer and Variator Industrial Association.
Our main products are RV series worm reducer, MB,MBN series variator, WR ,WK ,WF series helical gear reducer, WS series helical-worm gear reducer, WH/WB series high power reducer and WAH series hypoid gear reducer etc.We can also provide customised products.The products have serialized and modularized advantages, and have been widely used in the driving fields and transmission for all types of industries.
Our company has internationally and domestically advanced gear grinders, machining center and gear inspection center, as well as universal tool microscope etc. testing and machining equipmentWe have an annual production capacity of 200,000 sets of reducers.
We manufacture according to the ISO9001:2000 quality control system. In 2001, we obtained self-operating import and export qualification certificate. The products have been widely used all over China and exported to Europe, America, HongKong, Taiwan, outh America and Southeast Asia etc.
