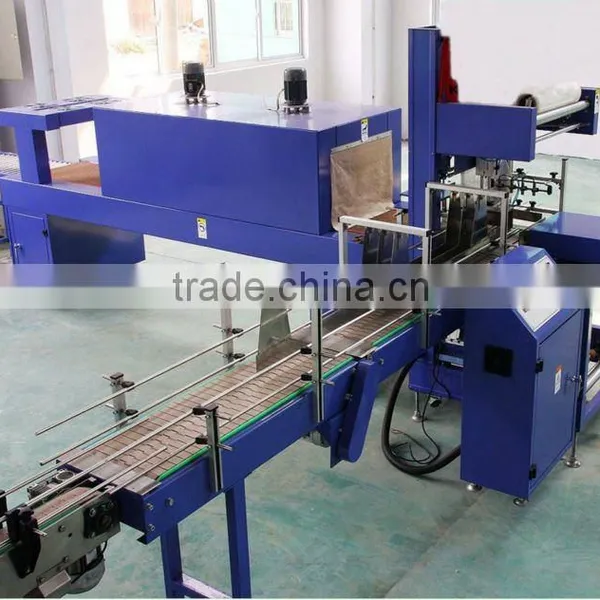

advanced shrink pure water packing machine

advanced shrink pure water packing machine


 1.Technical Parameter of equipment

Electrical source: AC 380V/220V 50HZ

Maximum power: 18KW

Working air pressure:0.6 MPa

Air compressor requirement: exhaust pressure: 0.8MPa, flux: 0.25m3/min

All kinds of thermal shrinkage film for example: PE,PP,PVC,POF

Width of wrapping film:≤600mm

Thickness of wrapping film: 0.03-0.15mm

Feeding conveyor height: 920mm(adjustable)

Length of feeding conveyor:2600mm

Outlook dimension of equipment: 5050*3300*2100 mm

Total Weight of equipment: 1200kg

2.Technical parameter of packing products:

Maximum packing dimension:600*400*350 mm( big diameter bottle could be 450*300*400mm)

The length of thermal sealing & cutting knife: 700mm

Thermal shrinkage temperature: 160-250 °C

Speed: 8-12 packages

Normal bottle quantities in one package(round shape or rectangle)

4 rows  4*6   4*5  4*4  applicable bottle dimension: Φ40-Φ73mm

3 rows  3*4   3*3  3*5  applicable bottle dimension: Φ73-Φ98mm

2 rows  2*3   2*4           applicable bottle dimension: Φ98-Φ140mm

1 row   1*2                    applicable bottle dimension: Φ140-Φ300mm
