our main products:PPGI ,PPGL,GI, gray metal roofing sheet

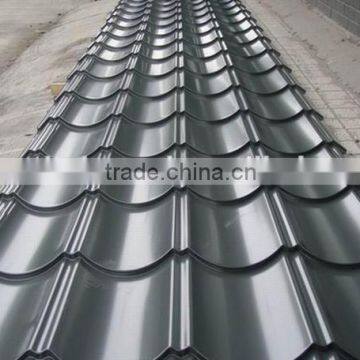

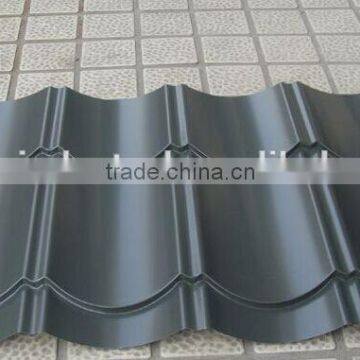

corrugated gray metal roofing sheet:
gray metal roofing tile types | yx10-130-910 yx12-110-880 yx14-63.5-850 yx15-225-900 yx18-76-836/1064 yx20-215-860/1075 yx25-205-825/1025 yx25-210-840 yx35-125-750 yx51-240-720 yx54-410-820 yx75-200-600 yx76-344-688 yx76-380-760 |
Material | Ppgi coil, galvanized steel coils,pre-painted galvalume sheet,Aluminum sheet |
Steel grade | DX51D, Q195, Q195L, SGCC |
Thickness | 0.13-0.6mm |
Effect Width | 600-1050mm |
Feeding width | 1000mm and 1200mm |
Length | 1.8-5m,as client’s request |
Zinc coating | 40-180g/m2 |
Colors | All RAL colors are available |
Lacquer | top side 15-25 micro Back side 5-10 micro |
Surface treatment | Bright and clean, smooth and flat |
Coating structure | 2/1: Top+ Prime/Back, PE/EPOXY; 5+12-25 microns /5-8 microns |
Lifespan | 10-15 years, very strong corrosion resistance it wouldn't fade |
Tolerance | Thickness: +/-0.02 mm, width: +/-2 mm; Total quantity: +/-5%; Zinc coating: +/-5% |
Tensile Strength | >300mpa |
Yield Strength | 370-380mpa |
Product features:
corrugated gray metal roofing sheet is refers to the galvanized steel in sheet metal, become the corrugated steel plate, it after cold rolling mill type pressure after the forming of sheet called galvanized steel tile, is to use zinc coating steel plate, the press roller of cold bending into various wave type plate, it is suitable for industrial and civil buildings, warehouses, special buildings, large-span steel structure house roof, walls and external decoration, etc., have qualitative light, high strength, convenient construction, earthquake, fire prevention, waterproof, long service life, maintenance free, etc, have been widely applied.
Main usage:
Corrugated gray metal roofing sheet is an ornamental construction plate of high strength, duration, and versatility. Because of the adoption of high strength steel plate and design in logical dimension, it is widely applied to roof and wall of buildings in each type. It is easy to assemble and adaptive, not bound to any factor of building.
