Company Introduction

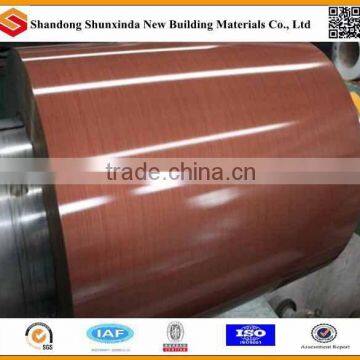

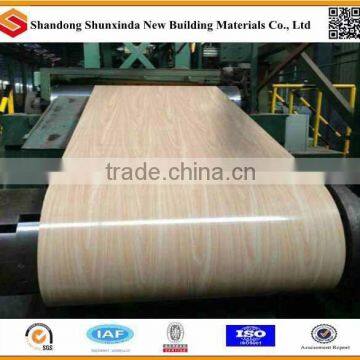

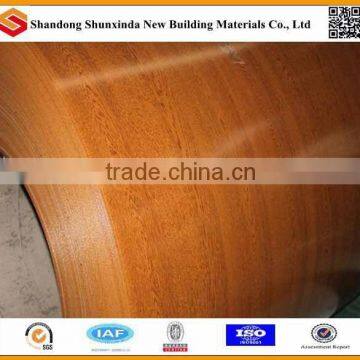

Features of wood pattern steel product:
Commodity | PPGI/PPGL |
Standard | JIS G3302, JIS G3313, ASTM A653, GB/T2518-88, GB11253-89,, BS, ect. |
Grade | SGCC,CGCC,SGCD,SPCC,DX51D,DX52D,DX53D |
Thickness | 0.12mm-2mm |
Width | 900-1250mm |
Coil ID | 508mm/610mm |
Coil Weight | 3-6tons |
Zinc Coating | Z20-Z270g/m² |
Color | sea blue,white grey , bright red or according to RAL color system |
Thickness of coating | Top coating:12-25 microns,back coating:5-8microns |
Technique | Cold rolled galvanized steel coil,galvalume steel coil |
Surface Production | PE,PVDF,SMP,HDP,ect. |
Application | Roofing, Corrugated Roofing Making,Outside of the buildings,Structure,Wall,Deep Drawn |
Delivery time | About 30 working days after received client deposit or irrevocable L/C at sight |
Shipment | Container or bulk |
Payment Term | L/C,T/T |

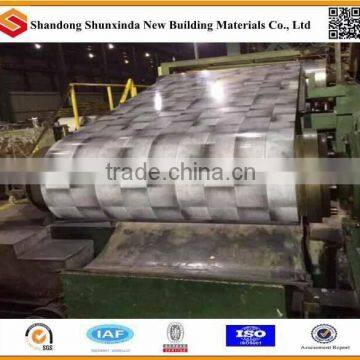

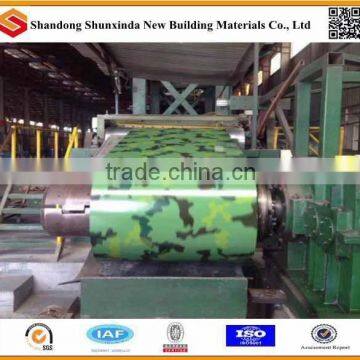

Production line instruction of wood pattern steel for construction:
loading coil-uncoil-stitching machine-entry looper-first time alkali cleaning-second time alkali
cleaning-first time hot water washing-second time hot water washing-epoxy primary coating-primary coating drying-first time water quenching-polyester top coating-high tempreture top coating dry-second time water quenching-outlet looper-cut down-unloading coil-weighing-packing and warehousing

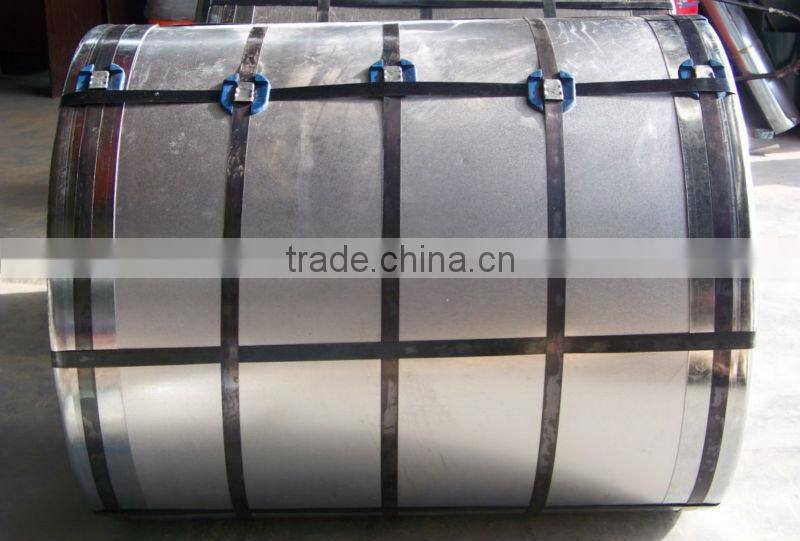

Package:
Seaworthy, waterproof paper + polyethylene rush inhibitor ,the antirust paper , the ring of defendse on inside and outside, steel belt , and the guard plate . we can pack according to your request details.
