Rack mount 26 Port Gigabit PoE Switch with 24 PoE ports with Hikvision IP Camera Adapter ,

FOB Price

USD $1 - $380 / Piece

1 Piece(Min.Order)

Supply Ability 15000 Piece / Pieces per Month
Port SHENZHEN
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Products Status:	Stock	Ports:	24	Transmission Rate:	10/100/1000Mbps
Function:	POE	Communication Mode:	Other, Full-Duplex & Half-Duplex	Certification:	CE FCC RoHS
Switch Capacity:	26 ports	Brand Name:	ONV	Model Number:	POE33024PF
Place of Origin:	Guangdong, China

Product Description

26 Port Gigabit Ethernet POE Switch with 2 Gigabit SFP Uplink Fiber Ports(ONV-POE33024PF)
Feature:
26-Port Gigabit PoE Switch with 24 PoE Ports and 2 SFP Gigabit Uplink Optical Ports
Supply power to 5 classes Ethernet wireless access points AP and network IP surveillance cameras
Port 1 to Port 24 supports IEEE802.3af power (each port maximum power is 15.4W)
24x 10/100/1000 Mbps ports + 2x SFP gigabit optical uplink ports
Compatible with IEEE 802.3 10i and IEEE 802.3u standard
The packet forwarding speed is 1.488Mbps of one wire-speed port
Port features with auto-flip(Auto MDI/MDIX)
Network port comes with lighting-proof (AC power port: difference module +/-2kV, common module +/-4kV)
All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed
Standard 1U rack design, suitable for rack installation mode
Automatic adjustment, plug and play, no need software and protocol conversion
Features with QOS, RSETMSTP, IGMP etc. RADIUS authentication, 802.1X authentication and so on

Flexible:
Selecting to insert up to 24 Ethernet networks or fast Ethernet devices or hybrid access to 24 IP-based IEEE802.3af PoE devices. Optimized installation and power management, such as the wireless access points (AP), Voice IP (VoIP) phones and IP-based cameras. Power over Ethernet (IEEE802.3af) is used for new construction equipment to improve network efficiency and reduce the time and cost of installation. Easily deploy your wireless access point AP and IP cameras, eliminating the need to power outlets and supply uninterrupted power to the entire PoE device.

Convenient :

Indicator lights on the front panel make it easier to observe the status of the switch and solve the problems. It’s convenient for management access to web-based browser coming with plug and play features or intelligent installation guide.

Reliable:
This durable switch is a 17 inch metal casing design. There are total matching rack kits in the package box. The switch is compatible withWindows, Macintosh O / S, Linux, Netware and other mainstream operating systems.

Application Situations:

Million HD surveillance transmission and power supply

Wireless AP distribution transmission and power supply
VoIP transmission, intelligent home systems
City intelligent traffic monitoring system (ITS), safe city, and wireless city
Highway surveillance system, electronic road surveillance, snapshot system
large industrial factory& enterprise security surveillance system, network multifunction system
Remote multimedia teaching & campus surveillance, video conferencing systems
Building intercom, wireless communications, video surveillance

Ordering Information:
Product Model: POE33024PF
Product Description: 26-Port Gigabit PoE Switch with 24 PoE Ports and 2 SFP Gigabit Uplink Optical Ports, port 1 to port 24 supports PoE IEEE 802.3af international standard, each port power is 15.4W
Ordering Note: The even number Port(1/3/5/7/9/11/13/15/17/19/21/23) is end-span(1/2+, 3/6- line pair) power supply, the odd number port(2/4/6/8/10/12/14/16/18/20/22/24) is mid-span(4/5+, 7/8- line pair) power supply

Package Lists:

26-Port Gigabit PoE Switch with 24 PoE Ports and 2 SFP Gigabit Uplink Optical Ports (POE33024PF)

AC Input Power Cable

User Guide

Warranty Card

Technical parameter list:
Product Name	26-Port Gigabit PoE Switch with 24 PoE Ports and 2 Fiber Ports
Model	POE33024PF
Connector Type	24x 10/100/1000M copper cable RJ45 PoE ports+2x 10/100/1000M SFP uplink optical ports
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meters); 100BASE-TX: Cat5 or more UTP(≤100 meters); 1000BASE-TX: Cat5 or more UTP(≤100 meters)
Bandwidth	52Gbps bandwidth
Address Database Size	1000
MTBF	190,000 hours (about 21 years)
Network Latency	Less than 20 microsecond
Forwarding Mode	Packet Length is 10Kb, Packet Buffer is 4.1M, Gigabit wire-speed forwarding
Buffer Memory	96KB
Network Protocols	IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.x Flow Control; IEEE 802.1af DTE Power via MDI
LED Display	Power, Network, PoE working status
Power Input	AC100-240V 50/60Hz
PoE Ports	Port 1 to port 24 supports IEEE802.3af(15.4W) power
PoE Port Power	PoE port output power is 15.4W(IEEE802.3af)
Power Consumption	440W
Working Environment	Working temperature: -20°C~75°C; Storage temperature: -40°~ 85°C; Working Humidity: 10%~90%, no condensation; Storage Humidity: 5% ~ 90%, no condensation; Working Altitude: 3000 meters (10,000ft); Storage Altitude: 3000 meters (10,000ft)
Certification	FCC Class A, CE, RoHS
Power Supply Type	The even number Port(1/3/5/7/9/11/13/15/17/19/21/23) is end-span(1/2+, 3/6- line pair) power supply, the odd number port(2/4/6/8/10/12/14/16/18/20/22/24) is mid-span(4/5+, 7/8- line pair) power supply
Product Size	Dimension (LxWxH): 440 x 275 x 44.5mm; Weight:4.6kg
Package Size	LxWxH: 585 x 445 x 95mm
Warranty	1 Year Warranty, Life-time Maintenance

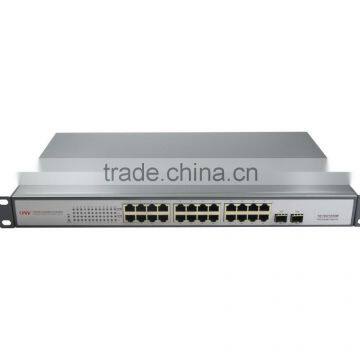

The large picture of product:

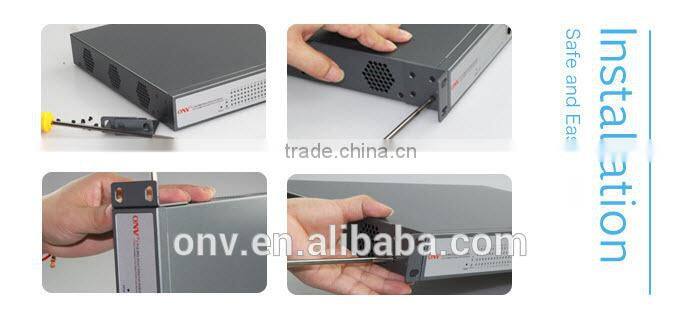

Installation steps:

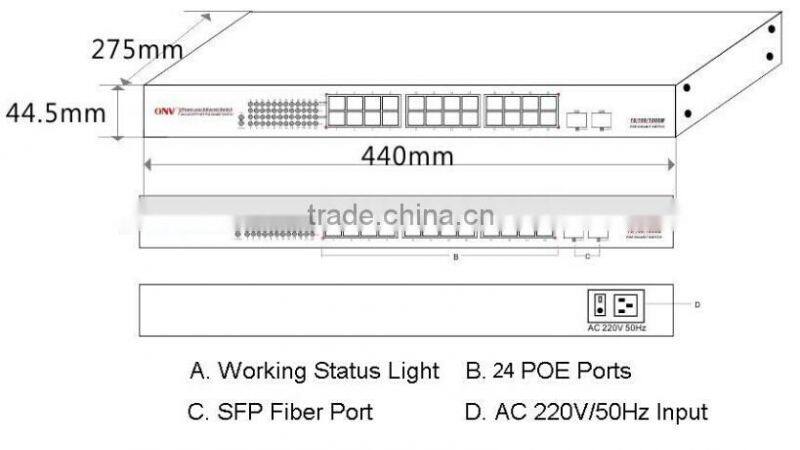

Dimension:

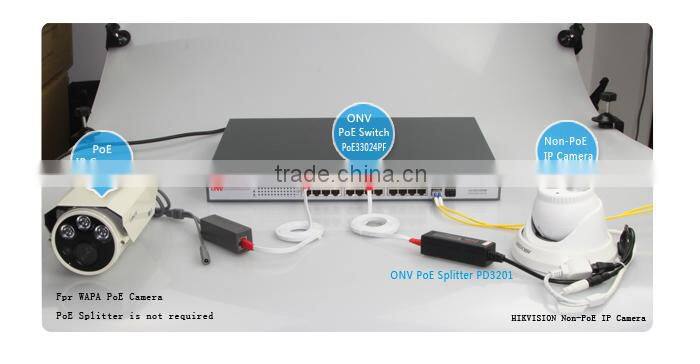

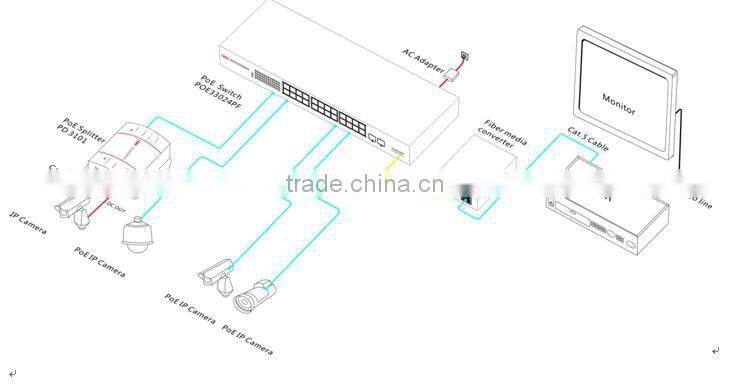

Application:

Certificate:

Office and factory picture:

Welcome your inquiry, feel free to contact us with more information,please!
