geomembrane welder machine welding HDPE/LDPE geomembrane& PVC geomembrane

Specifications

HDPE/LDPE/EVA/PVC geomemrbane welder machine
Used: weld HDPE/LDPE geomembrane or all thermal-fused material such as PE,PVC,EVA,



GEOMEMBRANES WELDING MACHINE

This series of welding machine is excellent in performance and easy for operating, with high welding speed and good

work quality

It can weld geomembrane of different thickness and are applicable for welding of all thermal-fused material such as PE, PVC, HDPE, EVA, PP and the like. This series of welding machine is excellent in

performance and easy for operating, with high welding speed and good work quality.

 It is extensively used in engineering projects such as express highways, tunnels, reservoirs, waterproof of construction

and so on. welding HDPE/LDPE/PVC/EVA geomembrane

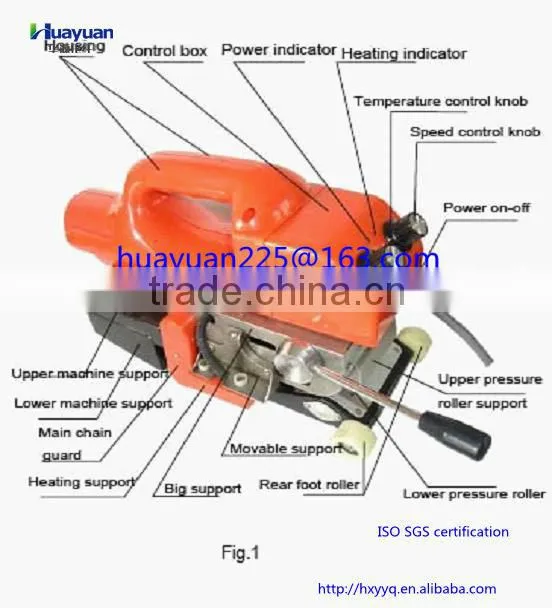

Welding machine--HYQ-800

Technical parameters

Modle:HYQ-800

Voltage (V):220V

Frequency (Hz):50Hz

Power (P): 750W

Welding speed (V):0.5-5m/min

Heating temperature (T): 0-450°C

Thickness of material to be welded: 0.2mm-1.5mm

Overlap width: 100mm

Welding width:12.5mm×2, interior cavity 12mm

Seam strength: ≥85% base material (tensile resistant in shear direction) ,complete machine

Weight:5Kg

Insulation class: class II

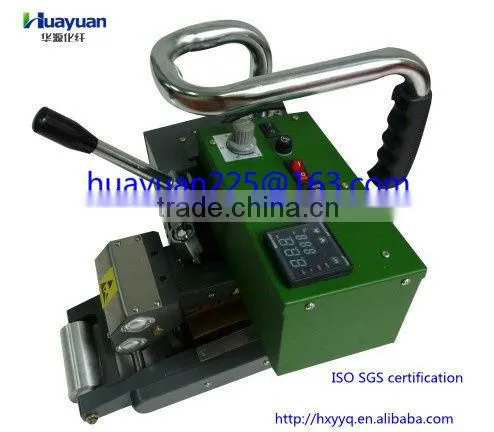

Welding machine--HYQ-900

Technical parameters

Modle:HYQ-900

Output Voltage:220V

Frequency:50Hz

Power:1800W

Welding speed:0.4~5m/min

4The temperature of Heating up:0~450°C

The thickness of welding material:1mm~4mm(Single membrane thickness)

Welding width:14mm×2 Interior Cavity :16mm

Welding intention≥85%Maternity material(Resistance to the direction of cutting)

Joint width:120mm

Machine body weight:13kg

please check the photo as the below:

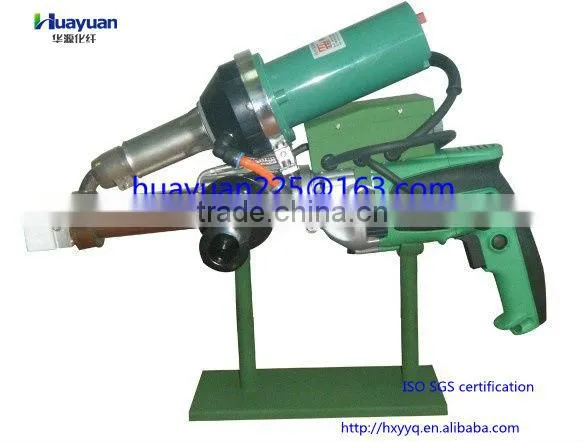

No.4 extured welding machine  HYQ-600

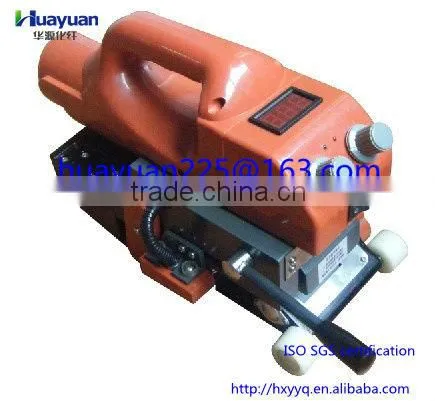

No.5   welding machine HYQ-800





No.6   welding machine HYQ-900





No.7



No.8 Spark leak detector



No.9

No.10 pressure test tool

No.11

No.12

No.13

No.15
