Backup sensor auto car system for parking

Specifications

1.Compatible with tow bar or back tyre
2.High brightness color LED
3.Self-diagnosis function
4.E8 certificate
5.6 sensor

• Self-diagnosis function
• Automatic activation when power up
• Integrated beeper for immediate alert
• Front 2 and rear 4 sensors for full coverage detection
• High brightness LED indicates distance & orientation of obstacl
• After distance setting, it is compatible with tow bar or back tyre
• 3 stages warning by different beeping frequency and 3 colors LED

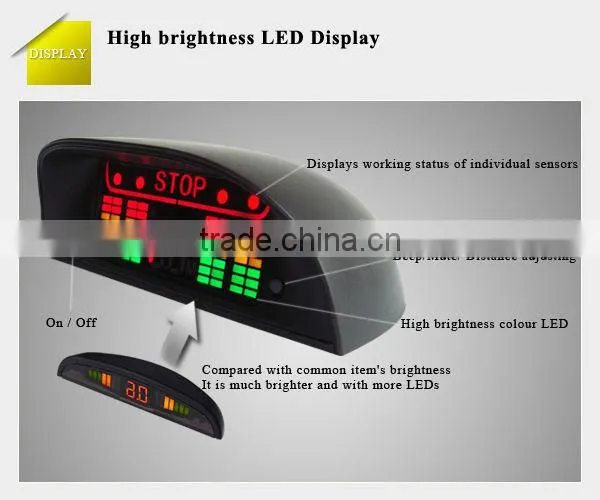

1. Display







2. Distance adjusting mode:



Distance adjusting is used to take account tow bars or spare tyres fitted to the rear of some vehicles.



Press and hold the right button for 5 seconds. The LED display shows 0.0m.



Press the right button once to increase the adjustment by 0.1m increments after each press, up to a

maximum adjustment distance of 0.5m. After 5 seconds without a button press, the number on the

display disappears, and the system returns to detection mode automatically.



As an example, if the distance adjustment has been set at 0.1m, the display will show 0.9m whilst the

distance between the vehicle and the object detected is 1.0m.



The display distance = Real distance detected – distance adjustment setting pre-programmed.







3. Technical data



Supply voltage	10.5V ~15V (12V normal)
Current consumption	200 mA max
Working temperature	-30°C ~ 70°C
Storage temperature	-35°C ~ 75°C
Obstacle detection	From 150 cm from the bumper (post dia. 80 mm)
Reliability over time	Satisfies the strictest automotive standards





4. Signals



Obstacle distance	Distance category	Beep	LED
150 ~ 110 cm	Safety	Din……Din……Din…..	1.5m ~1.1m
100 ~ 60 cm	Cautious	Din…Din…Din…Din…	1.0m ~0.6m
50 ~ 30 cm	Hazard	Din..Din..Din..Din..Din..Din..	0.5m ~0.3m
Less than 30 cm	Hazard	Din..Din..Din..Din..Din..Din..	P_





5. Pack contains

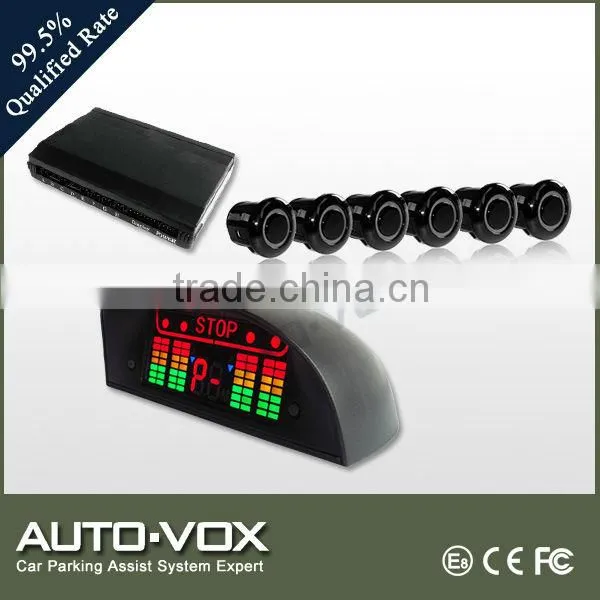

1 * command module            6 * ultrasonic sensors         1 * instruction manual

1 * power supply cable          1 * hole borer                    1 * accessory kit

1 * acoustic indicator/LED monitor
