Parking Sensor Camera With Car Display

Specifications

1. Hight brightness LED display.
2. Rear roof mounting display.
3. E-mark certificate.
4. Water-proof test.
5. Shock test.



• Automatic activation when the reverse gear is chosen.

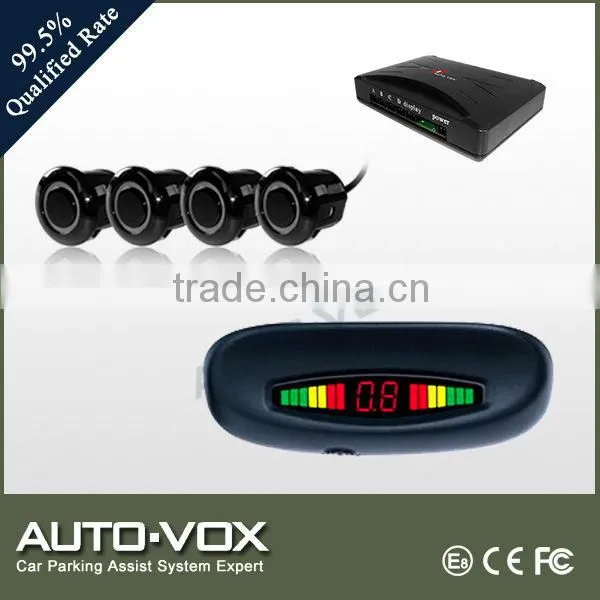

• Digital readout in LED indicates distance & orientation of obstacle.

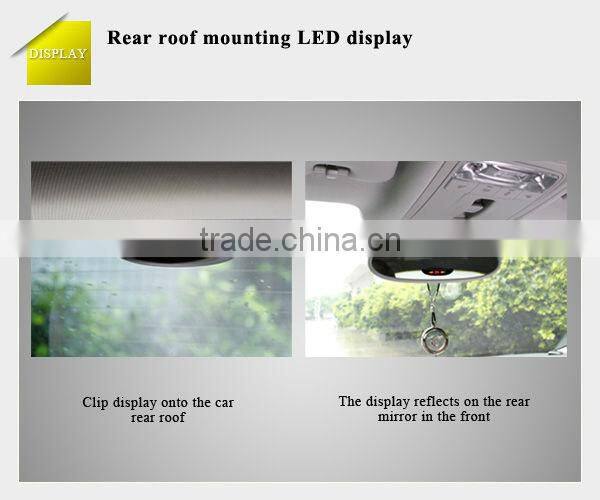

• LED display mounting on rear roof of vehicle & reflecting on rearview mirror.
• Integrated beeper for immediate alert.
• 3 stages warning by different beeping frequency and 3 colors LED.











1. Technical data



Supply voltage	10.5V ~15V (12V nominal)
Current consumption	200mA max
Working temperature	-30°C ~ 70°C
Storage temperature	-35°C ~ 75°C
Obstacle detection	From 150 cm from the bumper (post dia. 80 mm)
Reliability  over time	Satisfies the strictest automotive standards

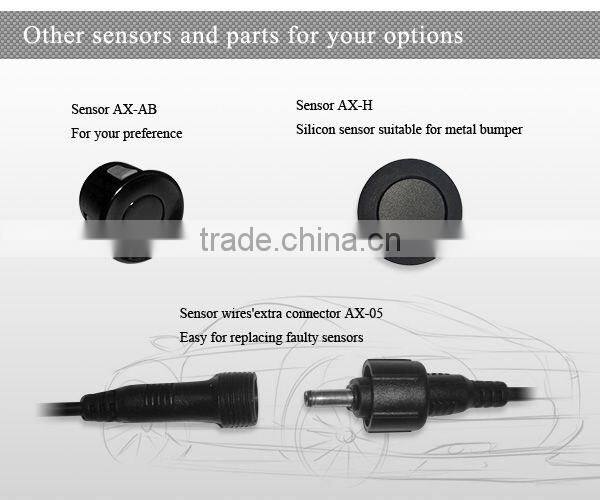

2. Sensor







3. Signals



Obstacle distance	Distance category	Beep	LCD
150 ~ 110 cm	Safety	BI.....BI......BI........	1.5m ~1.1m
100 ~ 60 cm	Caution	BI...BI...BI.....BI...BI...BI....	1.0m ~0.6m
50 ~ 30 cm	Hazard	BI.BI.BI.BI.BI.BI.BI….	0.5m ~0.3m
Less than 30 cm	Hazard	BI.BI.BI.BI.BI.BI.BI….	P_





4. Installation check



In order to perform the check your vehicle must be in a flat, smooth area free

of obstacles within a radius of 3 meters from the rear and sides of the vehicle.

With the hand brake on and the engine switched off, put the car into reverse

gear and turn the ignition key to “ON”, so that the reverse light switched on.

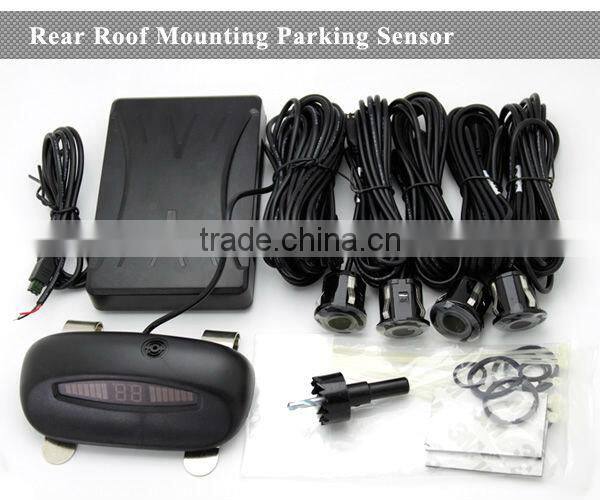

5. Pack contains:



1 * command module            4 * ultrasonic sensors         1 * acoustic indicator

1 * power supply cable          1 * hole borer                    1 * accessory kit

1 * instruction manual
