10-port Industrial PoE Switch with 4 ports PoE

Name: 10-port Industrial PoE Switch with 4 ports PoE
Brand: 3ONEDATA/OEM
Availability: InStock

FOB Price

USD $1 - $299 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Guangdong, China

Brand Name:

3ONEDATA/OEM

Model Number:

IPS3110-2GC-4POE

Product Description

10-port Industrial PoE Switch with 4 ports PoE

Introduction

IPS3110-2GC-4POE is an industrial grade, unmanaged Ethernet switch. The switch provides 4 ports 10/100M Ethernet, 4 ports 10/100M Ethernet(PoE) and 2 ports combo Gigabit SFP slots or 10/100/1000Base-T(X) ports, which 4 ports Ethernet supports POE function (IEEE802.3af/at). The switches are classified as power source equipment (PSE), and when used in this way, the switches enable centralization of the power supply, providing up to 30 watts of power per port and reducing the effort needed for installing power. The switches can be used to power IEEE802.3af/at standard devices (PD), eliminating the need for additional wiring.
It support CE, FCC standard, adopt industry standard design, IP40 protection, rugged high-strength metal case, power supply input (48VDC). The -40~75℃ working temperature, can meet all kinds of Industrial environment requirement, providing reliable and economic solution for your industrial Ethernet network.

Features

1.Support IEEE802.3, IEEE802.3u, IEEE 802.3x,IEEE802.3z/ab, IEEE802.3af/at, store and forward

2.Supports 2 Gigabit combo ports, 4 Fast Ethernet copper ports and 4 Fast Ethernet optic fiber ports

3.Support IEEE802.3af standard, full-port(PoE) full 15.4W power supply

4.Support IEEE802.3at standard, single-port maximum 30W power supply

5.Ethernet port support 10/100M self-adaption

6.DC48V power input, reverse connection protection

7.Industrial grade design, -40-75℃ work temperature

8.IP40 protection grade, DIN rail mounted

Specification
Standard	IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z/ab, IEEE802.3af/at
Flow Control	IEEE802.3x flow control, Back pressure flow control
Switch Properties	100M forward speed: 148810pps 1000M forward speed: 1488100pps Transmit mode: store and forward System exchange bandwidth: 7.6G MAC address table: 8K Memory: 1M
Interface	Fast Ethernet Port: 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect PoE Pin-out: 1/2(+), 3/6(-) Gigabit Combo port: 1000Base-X SFP slot or 10/100/1000Base-T(X) Console port: debug serial port carry out CLI command Alarm port: 2 bit 7.62mm terminal block 1 channel relay alarm output
Transfer Medium	Twisted cable: 100M (standard CAT5/CAT5e cable) Multi-mode: 1310nm, 2Km Single-mode: 1310nm, 20/40/60Km 1550nm, 80/100/120Km
Indicator	Run indicator: Run Interface indicator: Link (1~10) POE indicator: 1~4 Power supply indicator: P1, P2 Alarm indicator: Alarm
Power Supply	Input Voltage: 44~57VDC Type of input: 4 bits 7.62mm terminal block No-load consumption: 7W@48VDC Full-load consumption: 68.6W@48VDC Single PoE port maximum consumption: 30W@48VDC
Environment Requirement	Working temperature: -40~75℃ Storage temperature: -40~85℃ Relative Humidity: 5%~95 %( no condensation)
Physical Characterisitics	Shell: IP40 protect grade, metal shell Installation: DIN rail mount Size (W×H×D): 70mm×160mm×130mm Weight: 1.2kg
Industrial Standard	EMI: FCC Part 15, CISPR (EN55022) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Certification	CE, FCC, RoHS, UL508(Pending)
Warranty	5 years
Packing List	1. Industrial PoE Switch(plus terminal block) ×1 2. User manual × 1 3. Certificate of quality × 1 4. Warranty card × 1 5. DIN-Rail mounting kit × 1

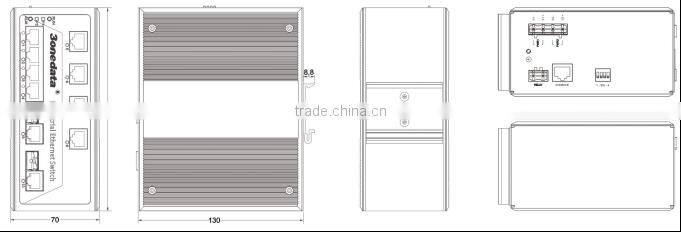

Dimension

Shipping
