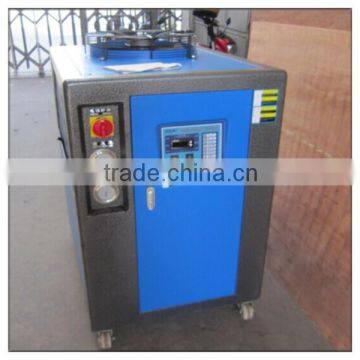

The most hotsale 3.4kw power Small Air cooling chiller / Industrial water cooling system /air cooled chiller unit
- 8000 Unit / Units per Month
- Ningbo Shanghai China
- T/T L/C D/P D/A PayPal
You May Like
Product Details
| Condition | New | Type | Air-Cooled | |
| Place of Origin | Zhejiang, China | Brand Name | XINHE | |
| Model Number | XCA-03S | Cooling Capability(kw) | 9.8kw | |
| Voltage | 380V/220V,440V | Dimension(L*W*H) | 950*680*1000mm | |
| Weight | 120kg | Certification | CE, Other, CE, ISO9001:2000 | |
| Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
The most hotsale 3.4kw power Small Air cooling chiller / Industrial water cooling system /air cooled chiller unit
I. Instruction of Small air cooling chiller:
XHC Air cooled chiller is widely used for hotels, hospitals, theaters, sports, entertainment center, commercial buildings, office buildings, working conditions at places such as development and design company central air conditioning products, it can installed on the roof or outside the hospital, without special room and cooling tower.
1.Energy efficient,
2.Modular, free combination, easy installation, stable performance,
3, Intelligent control, easy operation, safety
4.Low noise, stable operation and 5, have the ability to network communication
Features:
- Air chiller is an ideal choice for places with much dusts and filth.
- Air chiller is suitable for area with low-quality water, and it can save the cooling tower and auxiliary devices.
- Its large-capacity condenser operate well in even very hot seasons
Application: Injection Molding, Food Industry, Chemical Industry, Central Air-Conditioner
II. Technology parameter of Small air cooling chiller :
Models | Cooling | Input | Compressor | Evaporator | Condenser | The machine |
Capacity | Power | Flow water | Cooling air | size | ||
The models below include 1 Compressor | ||||||
XCA-02S | 4988kcal/hr | 2.5kw | 1.9kw | 1.3m3/h | 2270m3/h | 0.8*0.6*0.85m |
XCA-03S | 8428kcal/hr | 3.4kw | 2.9kw | 1.8m3/h | 3400m3/h | 0.95*0.68*1.0m |
XCA-05S | 13,932kcal/hr | 5.7kw | 4.8kw | 2.6m3/h | 4550m3/h | 1.28*0.68*1.2m |
XCA-08S | 21,156kcal/hr | 8.5kw | 7.5kw | 4.2m3/h | 6800m3/h | 1.24*0.73*1.38m |
XCA-10S | 27,090kcal/hr | 11.4kw | 9.8kw | 5.5m3/h | 9600m3/h | 1.5*0.8*1.32m |
XCA-12S | 31,304kcal/hr | 13.3kw | 11.8kw | 6.6m3/h | 9600m3/h | 1.5*0.8*1.35m |
The models below include 2 Compressors | ||||||
XCA-16D | 41,796kcal/hr | 18.1kw | 15.2kw | 7.8m3/h | 1 3200m3/h | 1.58*0.95*1.46m |
XCA-20D | 53,750kcal/hr | 22.8kw | 19.8kw | 11.2m3/h | 19800m3/h | 2.5*1.0*1.5m |
XCA-25D | 62,264kcal/hr | 26.9kw | 23.8kw | 13.4m3/h | 26000m3/h | 2.5*1.0*1.58m |
XCA-30D | 83,420kcal/hr | 36.5kw | 30.6kw | 16.6m3/h | 265000m3/h | 2.65*1.0*1.58m |
XCA-40D | 107,500kcal/hr | 45.8kw | 39.5kw | 21.2m3/h | 39800m3/h | 2.8*1.15*1.68m |
XCA-50D | 124,700kcal/hr | 53.9kw | 47.2kw | 26.5m3/h | 52000m3/h | 2.8*1.9*1.75m |
Note : | ||||||
1.The details above is based on the following parameter :Evaporator temperature:10°C, Condensing temperature:54.4°C | ||||||
2.Main Voltage :3Phase-380V/50HZ ,3Phase-220V-50HZ/60HZ | ||||||
3.Refrigerant :R22 | ||||||
III.Main parts of Air cooling chiller
Item | Remark | Brand | Brand |
Compressor |
| Copeland | USA |
Computer control |
| Computer control | Sino-foreign joint venture |
Refrigerant | R22 | DUPON | USA |
Electrical equipment |
| ZHENGTAI | China |
Condenser |
| Efficient copper tube set of aluminum finned + low noise outer rotor axial flow fan | SANHE |
Evaporator |
| Coil pipe | SANHE |
Pressure gauge |
| GARHOPE | Sino-US joint venture |
Solenoid valve |
| FENSHEN | Sino-foreign joint venture |
Flow controller |
| Capillary | XHC |
Dry filter |
| SANRONG | Sino-foreign joint venture |
Energy device |
| XHC | XHC SANHE |
Copper pipe |
| HONGTAI | Qingdao ,China |
Steel |
| BAOGANG | Shanghai ,China |
Pressure controller |
| FENSHEN | Sino-foreign joint venture |
Globe valves |
| FENSHEN | Sino-foreign joint venture |

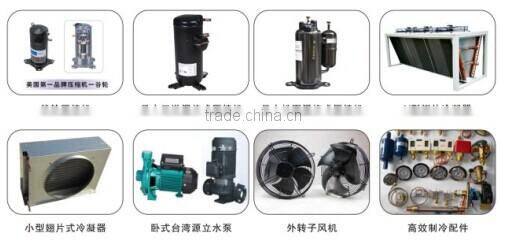

Air chiller main part photo
IV .Certificates of Air cooing chiller :

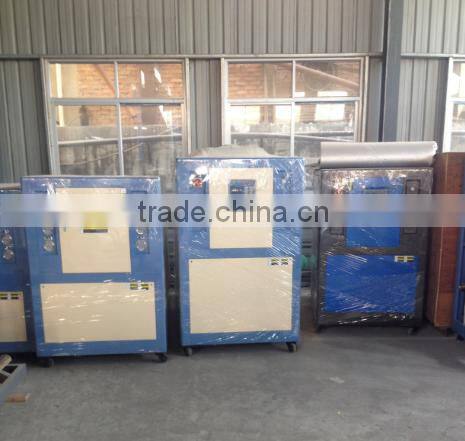

V. Air cooling chiller photos :
Inside of Air chiller
Air chiller XCA-03S working photo
